730 Configuring IP Multicast
The following table summarizes the equivalent CLI commands for this feature.
Next Hop Summary
Use the Next Hop Summary page to display or print the next hop summary by Source IP.
To display the page, click IPv4 Multicast
→ DVMRP → Next Hop Summary in the tree view.

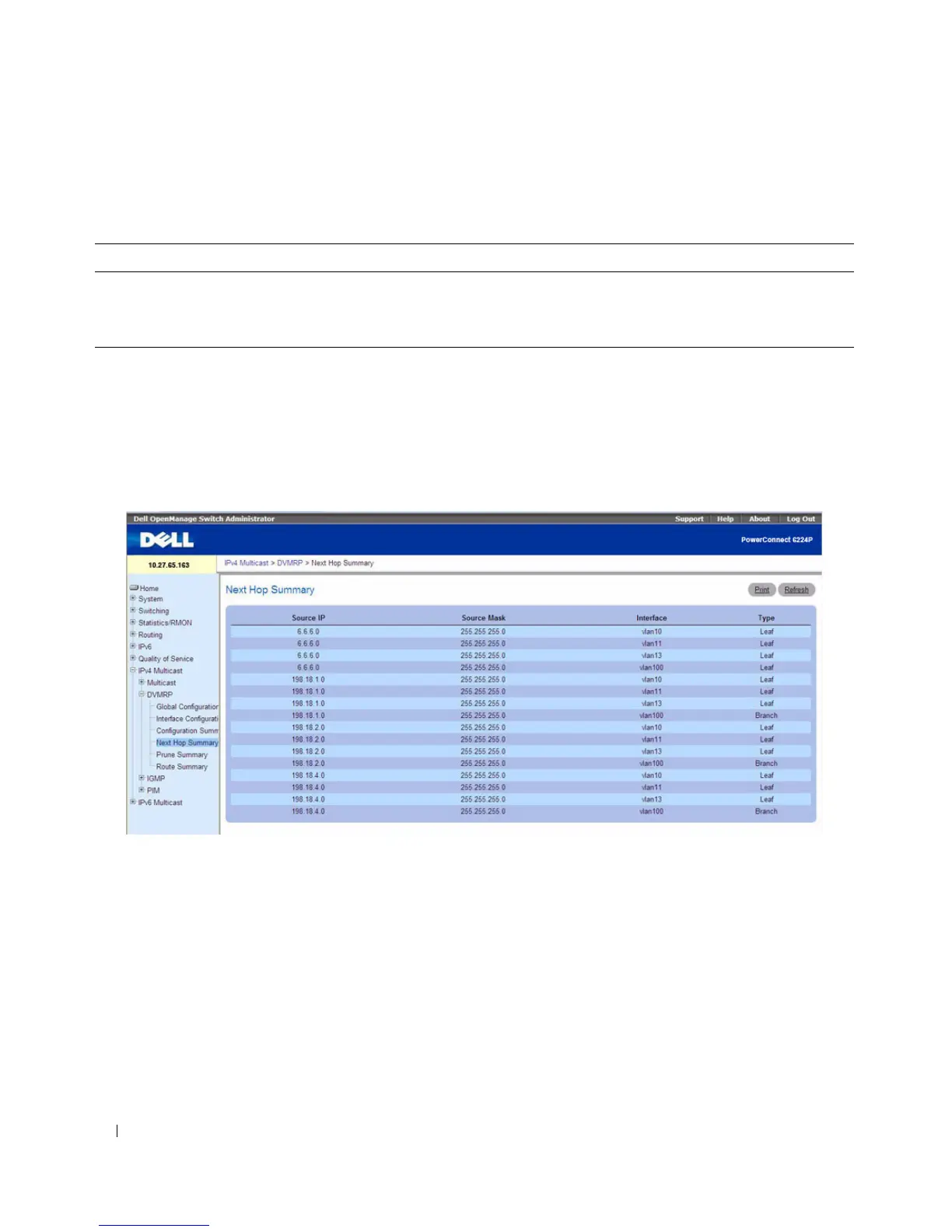

Figure 12-11. Next Hop Summary
The Next Hop Summary page displays the following fields:
• Source IP — Displays the IP address used with the source mask to identify the source network for this
table entry.
•
Source Mask — Displays the network mask used with the source IP address.
•
Next Hop Interface — Displays the outgoing interface for this next hop.
•
Ty p e — Displays the next hop type. Leaf means that no downstream dependent neighbors exist on the
outgoing interface. Otherwise, the type is Branch.
Table 12-10. DVMRP Configuration Summary Commands
CLI Command Description
show ip dvmrp interface Displays the interface information for DVMRP on the specified
interface.
show ip dvmrp neighbor Displays the neighbor information for DVMRP.

Dell PowerConnect 6224 Specifications

General

Switching Capacity	128 Gbps
Forwarding Rate	95.2 Mpps
Power Supply	100-240 VAC, 50/60 Hz
RAM	128 MB
Flash Memory	32 MB
Layer Support	Layer 2/3
Stacking	Up to 12 units
Weight	12.1 lbs
MAC Address Table Size	16, 000
Jumbo Frame Support	Up to 9, 216 bytes
Operating Temperature	0°C to 45°C
Storage Temperature	-40°C to 70°C
Humidity	10% to 90% (non-condensing)
Ports	24 x 10/100/1000BASE-T
VLAN Support	Yes (802.1Q)
Dimensions	17.3 x 13.8 x 1.7 in (440 x 350 x 44 mm)
