370 Configuring Switching Information
The VLAN LAG parameters are defined, and the device is updated.
Displaying the VLAN LAG Table
1. Open the VLAN LAG Settings page.
2. Click Show All .
The
VLAN LAG Table displays.

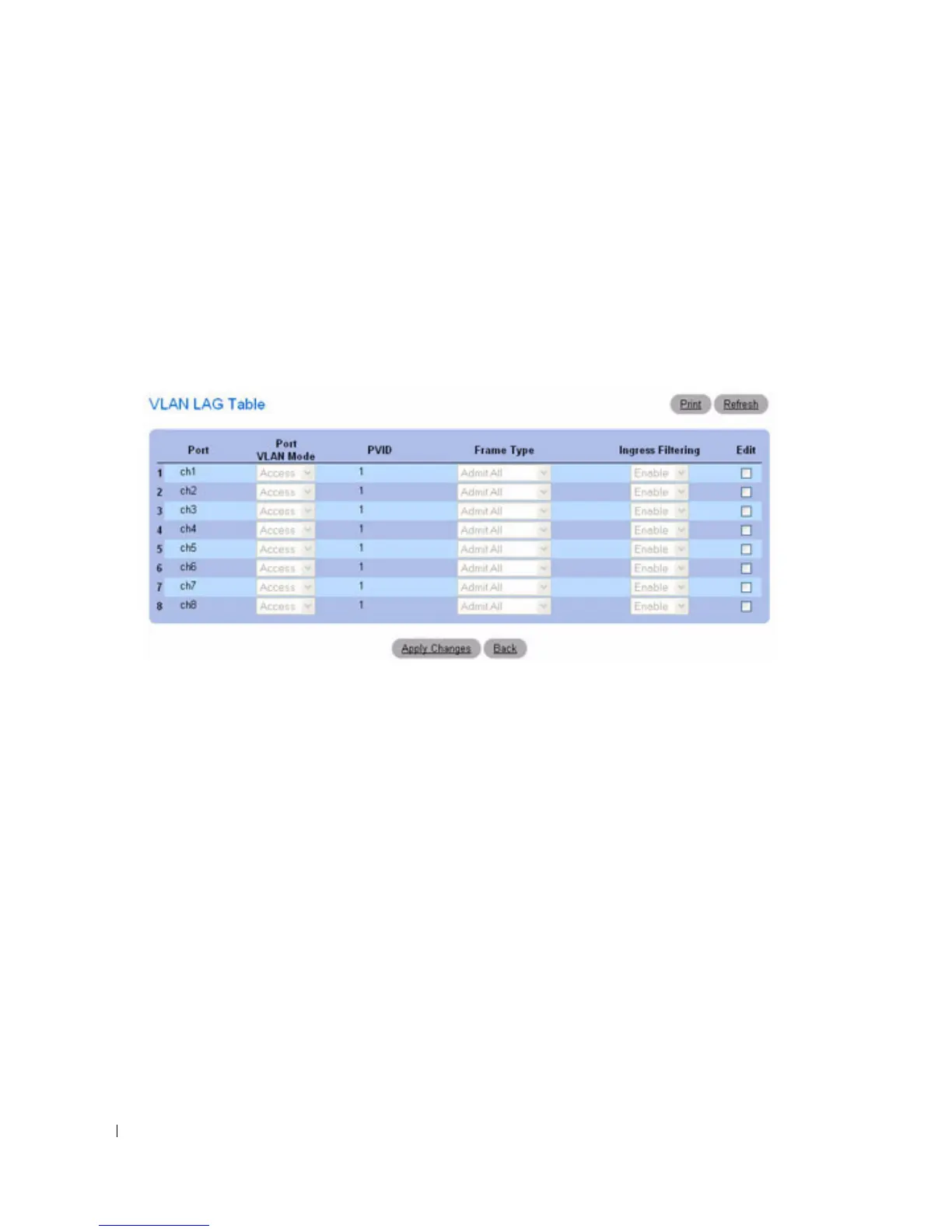

Figure 7-57. VLAN LAG Table
Modifying Settings for Multiple LAGs
1. Open the VLAN LAG Settings page.
2. Click Show All .
The
VLAN LAG Table displays.
3. Click Edit for each LAG to modify.
4. Edit fields as needed.
5. Click Apply Changes .
The VLAN LAG settings are modified, and the device is updated.
Assigning LAGs to VLAN Groups Using CLI Commands
See "Configuring VLAN Ports Using CLI Commands" on page 368.
Bind MAC to VLAN
Use the Bind MAC to VLAN page to map a MAC entry to the VLAN table. After the source MAC
address and the VLAN ID are specified, the MAC to VLAN configurations are shared across all ports of
the switch. The MAC to VLAN table supports up to 128 entries.

Dell PowerConnect 6224 Specifications

General

Switching Capacity	128 Gbps
Forwarding Rate	95.2 Mpps
Power Supply	100-240 VAC, 50/60 Hz
RAM	128 MB
Flash Memory	32 MB
Layer Support	Layer 2/3
Stacking	Up to 12 units
Weight	12.1 lbs
MAC Address Table Size	16, 000
Jumbo Frame Support	Up to 9, 216 bytes
Operating Temperature	0°C to 45°C
Storage Temperature	-40°C to 70°C
Humidity	10% to 90% (non-condensing)
Ports	24 x 10/100/1000BASE-T
VLAN Support	Yes (802.1Q)
Dimensions	17.3 x 13.8 x 1.7 in (440 x 350 x 44 mm)
