Dell PowerConnect 6224 User Manual

270 Configuring System Information
Configuring OSPFv3 Traps Using CLI Commands
For information about the CLI command that performs this function, see the SNMP Commands chapter
in the
CLI Reference Guide . The following table shows the equivalent CLI command you use to
configure OSPFv3 traps.
Trap Log
The Trap Log page is used to view entries that have been written to the trap log.
To access the Trap Log page, click System
→ Trap Manager → Trap Log in the navigation tree.

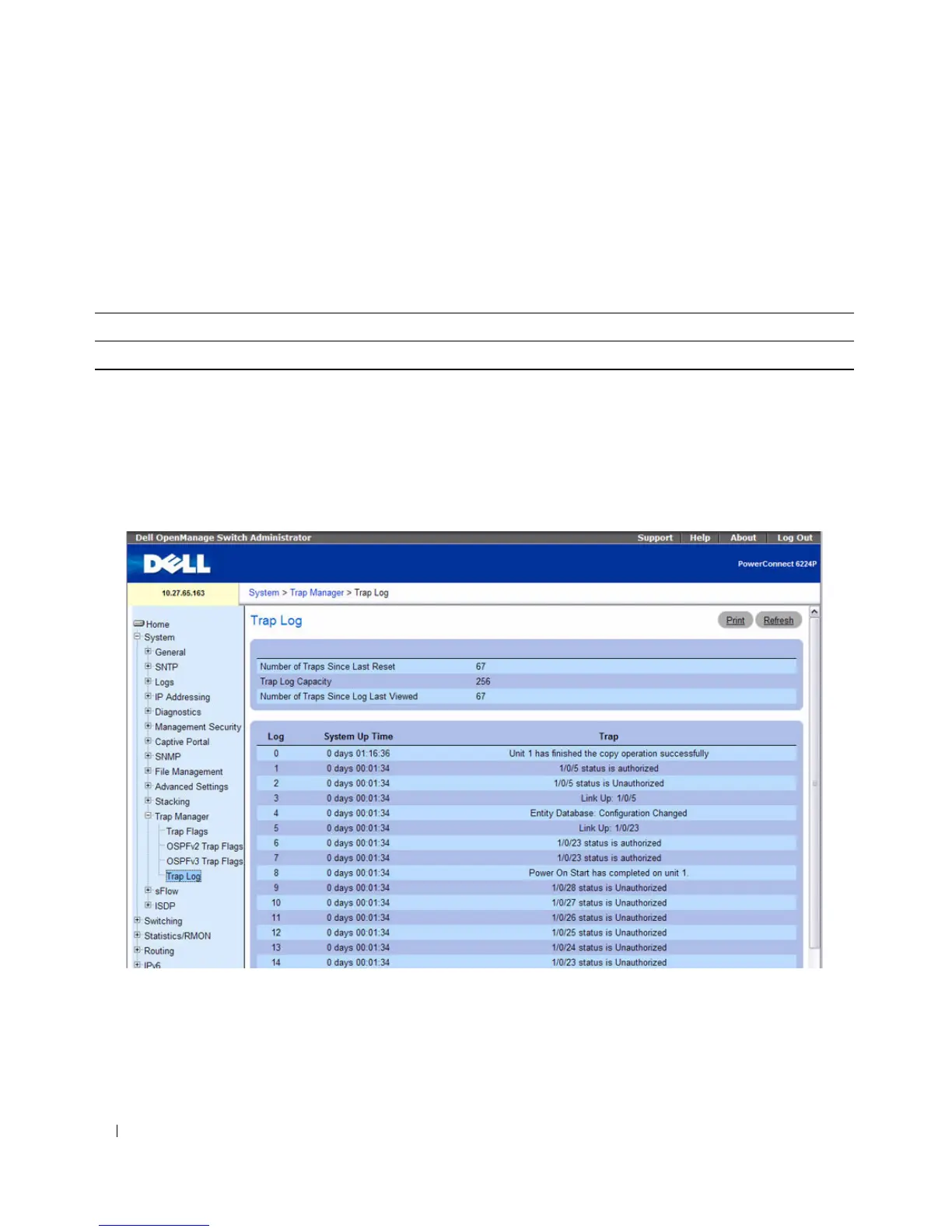

Figure 6-121. Trap Logs
The Trap Log page contains the following fields:
• Number of Traps Since Last Reset — The number of traps generated since the trap log entries were
last cleared.
Table 6-61. OSPFv3 Trap Command
CLI Command Description
snmp-server enable traps ospfv3 Enables OSPFv3 traps.

Dell PowerConnect 6224 Specifications

General

Switching Capacity	128 Gbps
Forwarding Rate	95.2 Mpps
Power Supply	100-240 VAC, 50/60 Hz
RAM	128 MB
Flash Memory	32 MB
Layer Support	Layer 2/3
Stacking	Up to 12 units
Weight	12.1 lbs
MAC Address Table Size	16, 000
Jumbo Frame Support	Up to 9, 216 bytes
Operating Temperature	0°C to 45°C
Storage Temperature	-40°C to 70°C
Humidity	10% to 90% (non-condensing)
Ports	24 x 10/100/1000BASE-T
VLAN Support	Yes (802.1Q)
Dimensions	17.3 x 13.8 x 1.7 in (440 x 350 x 44 mm)
