Dell PowerConnect 6224 User Manual

728 Configuring IP Multicast
DVMRP Configuration Summary
Use the DVMRP Configuration Summary page to display or print the DVMRP configuration and data
for a selected interface. You must configure at least one router interface before you can display data for a
DVMRP interface. Otherwise you see a message telling you that no router interfaces are available, and
the configuration summary screen is not displayed.
To display the page, click IPv4 Multicast
→ DVMRP → Configuration Summary in the tree view.

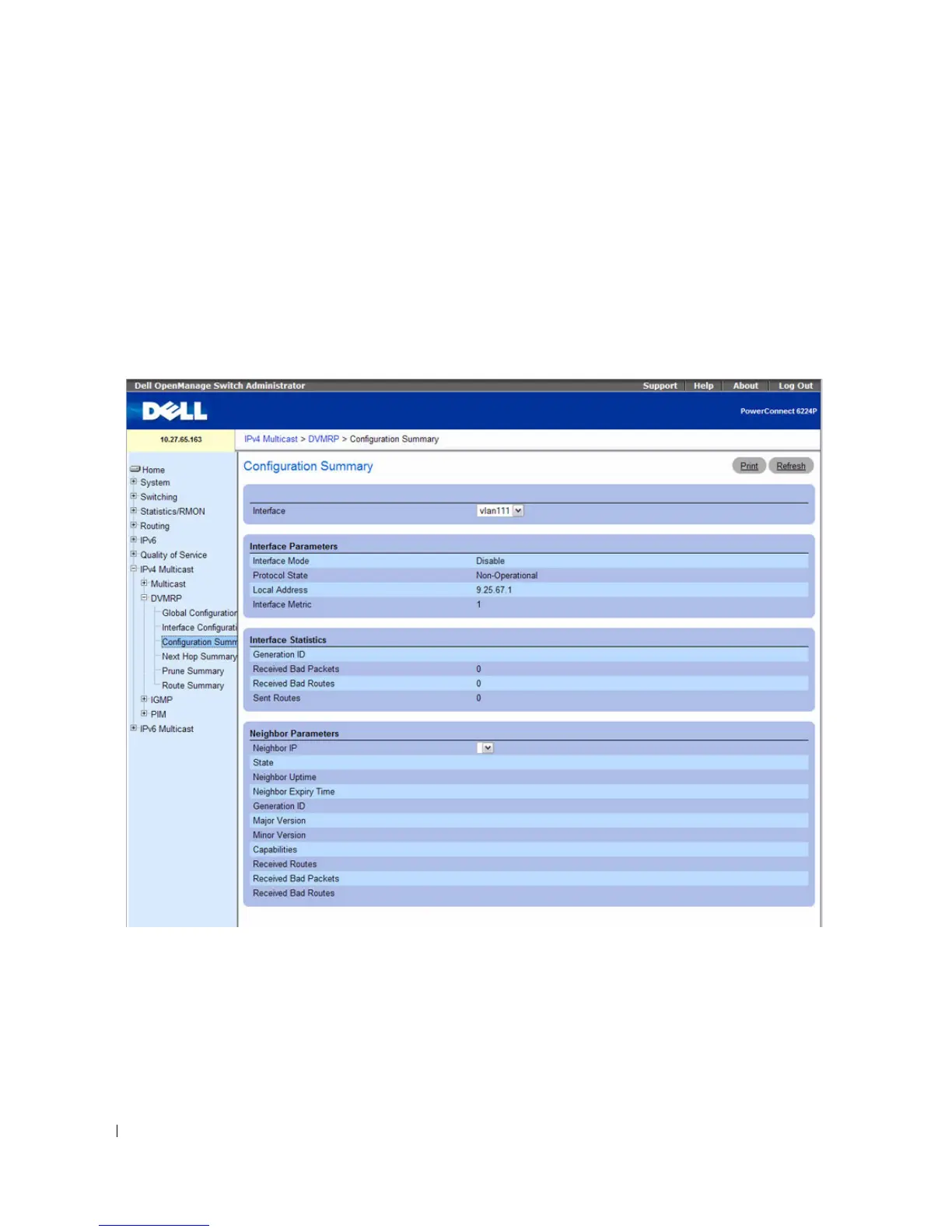

Figure 12-10. DVMRP Configuration Summary
The DVMRP Configuration Summary page contains the following fields:
• Interface — Select the interface for which data is to be displayed. You must configure at least one
router interface before you can display data for a DVMRP interface.
Interface Parameters
• Interface Mode — Displays the administrative mode of the selected DVMRP routing interface, either
Enable or Disable.

Dell PowerConnect 6224 Specifications

General

Switching Capacity	128 Gbps
Forwarding Rate	95.2 Mpps
Power Supply	100-240 VAC, 50/60 Hz
RAM	128 MB
Flash Memory	32 MB
Layer Support	Layer 2/3
Stacking	Up to 12 units
Weight	12.1 lbs
MAC Address Table Size	16, 000
Jumbo Frame Support	Up to 9, 216 bytes
Operating Temperature	0°C to 45°C
Storage Temperature	-40°C to 70°C
Humidity	10% to 90% (non-condensing)
Ports	24 x 10/100/1000BASE-T
VLAN Support	Yes (802.1Q)
Dimensions	17.3 x 13.8 x 1.7 in (440 x 350 x 44 mm)
