Dell PowerConnect 6224 User Manual

346 Configuring Switching Information
STP Port Settings
Use the STP Port Settings page to assign STP properties to individual ports.
To display the STP Port Settings page, click Switching
→ Spanning Tree → STP Port Settings in the tree
view.

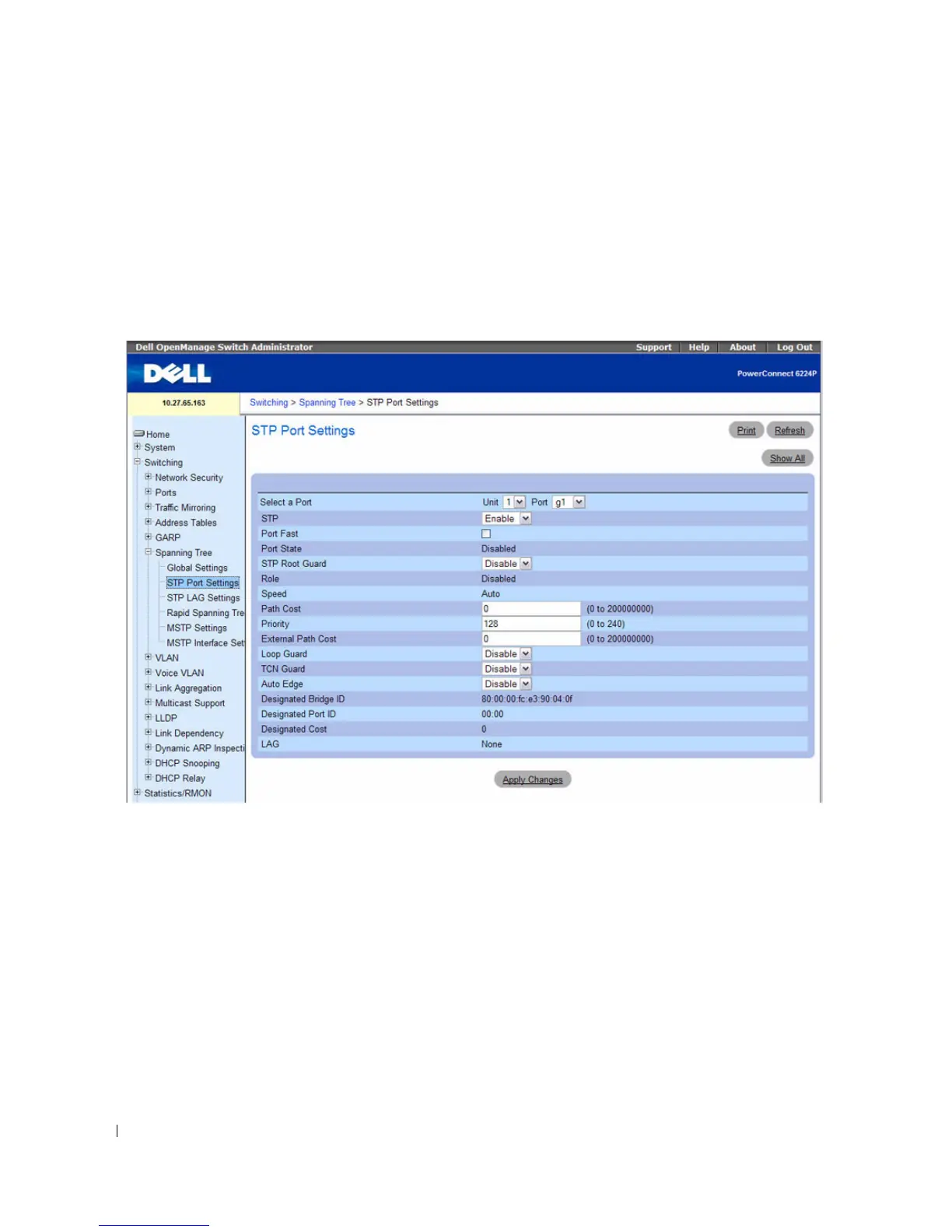

Figure 7-39. STP Port Settings
The STP Port Settings page contains the following fields:
• Select a Port — Specifies the Unit and Port on which STP is enabled.
•
STP — Enables or disables STP on the port.
•
Port Fast — Enables Port Fast mode for the port when checked. If Port Fast mode is enabled for a port,
the
Port State is automatically placed in the Forwarding state when the port link is up. STP
convergence can take 30–60 seconds in large networks.
•
Port State —Indicates the current STP state of a port. If enabled, the port state determines what
forwarding action is taken on traffic. Possible port states are:
–
Disabled — STP is currently disabled on the port. The port forwards traffic while learning MAC
addresses.

Dell PowerConnect 6224 Specifications

General

Switching Capacity	128 Gbps
Forwarding Rate	95.2 Mpps
Power Supply	100-240 VAC, 50/60 Hz
RAM	128 MB
Flash Memory	32 MB
Layer Support	Layer 2/3
Stacking	Up to 12 units
Weight	12.1 lbs
MAC Address Table Size	16, 000
Jumbo Frame Support	Up to 9, 216 bytes
Operating Temperature	0°C to 45°C
Storage Temperature	-40°C to 70°C
Humidity	10% to 90% (non-condensing)
Ports	24 x 10/100/1000BASE-T
VLAN Support	Yes (802.1Q)
Dimensions	17.3 x 13.8 x 1.7 in (440 x 350 x 44 mm)
