Dell PowerConnect 6224 User Manual

Configuring Switching Information 355
MSTP Interface Settings
Use the MSTP Interface Settings page to assign MSTP settings to specific interfaces.
To display the MSTP Interface Settings page, click Switching
→ Spanning Tree → MSTP Interface
Settings in the tree view.

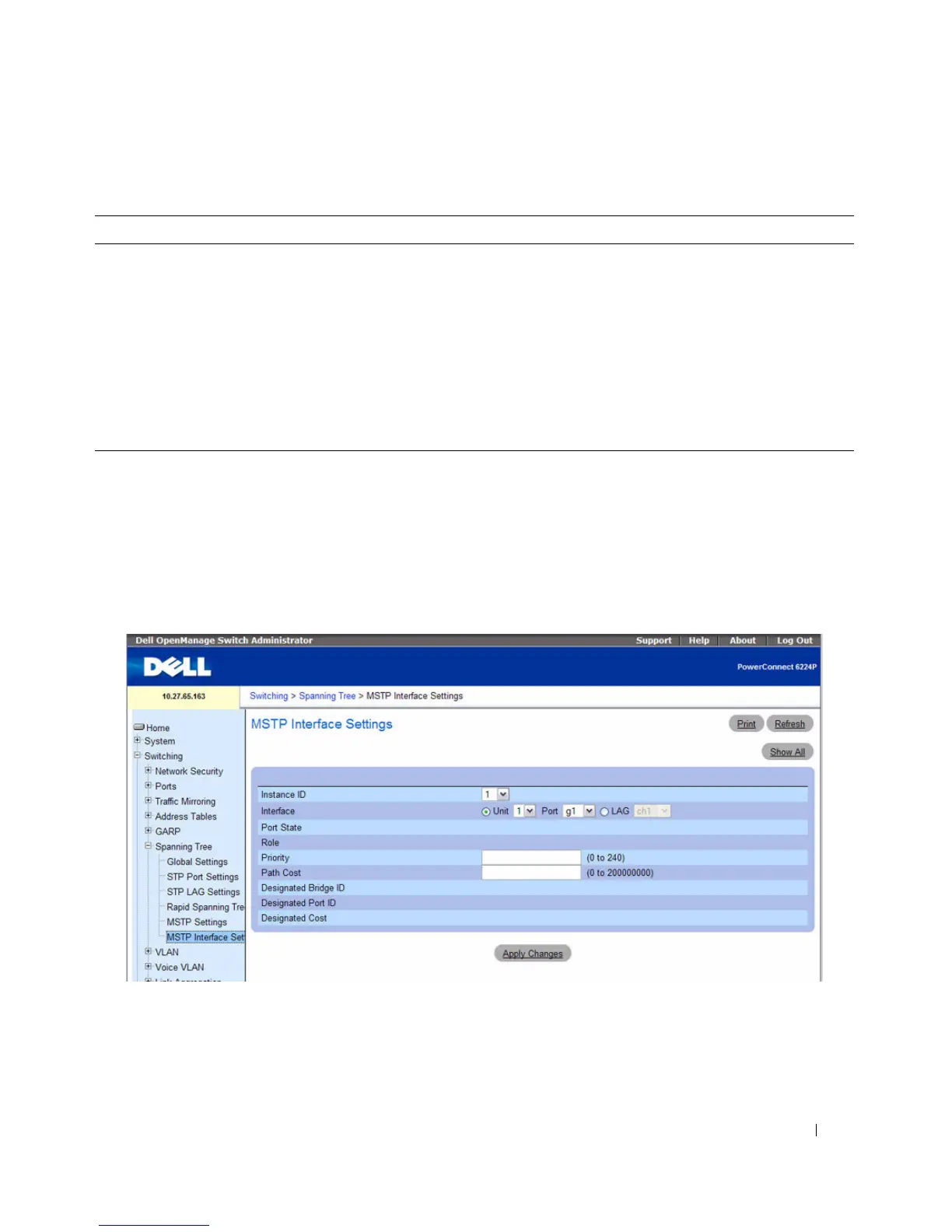

Figure 7-47. MSTP Interface Settings
The MSTP Interface Settings page contains the following fields:
• Instance ID — Selects the MSTP instances configured on the switch. Possible field range is 1–15.
•
Interface — Selects either a Unit/Port or LAG for this MSTP instance.
Table 7-23. MST
CLI Command Description
instance Maps VLANS to an MST instance.
name Define the configuration name for an MST instance.
revision Identifies the configuration revision number of an MST instance.
spanning-tree max-hops Sets the MSTP Max Hops parameter to a new value for the common
and internal spanning tree.
spanning-tree mst configuration Enables configuring an MST region by entering the multiple spanning-
tree (MST) mode.
spanning-tree mst priority Sets the switch priority for the specified spanning-tree instance.

Dell PowerConnect 6224 Specifications

General

Switching Capacity	128 Gbps
Forwarding Rate	95.2 Mpps
Power Supply	100-240 VAC, 50/60 Hz
RAM	128 MB
Flash Memory	32 MB
Layer Support	Layer 2/3
Stacking	Up to 12 units
Weight	12.1 lbs
MAC Address Table Size	16, 000
Jumbo Frame Support	Up to 9, 216 bytes
Operating Temperature	0°C to 45°C
Storage Temperature	-40°C to 70°C
Humidity	10% to 90% (non-condensing)
Ports	24 x 10/100/1000BASE-T
VLAN Support	Yes (802.1Q)
Dimensions	17.3 x 13.8 x 1.7 in (440 x 350 x 44 mm)
