• Source Mask — The subnet mask to be combined with the source IP address to identify the source or
source network which has been pruned.
•
Expiry Time (secs) — The amount of time remaining before this prune should expire at the upstream
neighbor. If no prune messages have been received from downstream neighbors, this is set to value of
the default prune lifetime timer, otherwise it is set to the smallest received value or the default timer,
whichever is less.
Displaying the Prune Summary Using CLI Commands
For information about the CLI command that performs this function, see the following chapter in the
CLI Reference Guide:
• DVMRP Commands
The following table summarizes the equivalent CLI commands for this feature.
Route Summary
Use the Route Summary page to display or print the DVMRP route summary.
To display the page, click IPv4 Multicast
→ DVMRP → Route Summary in the tree view.

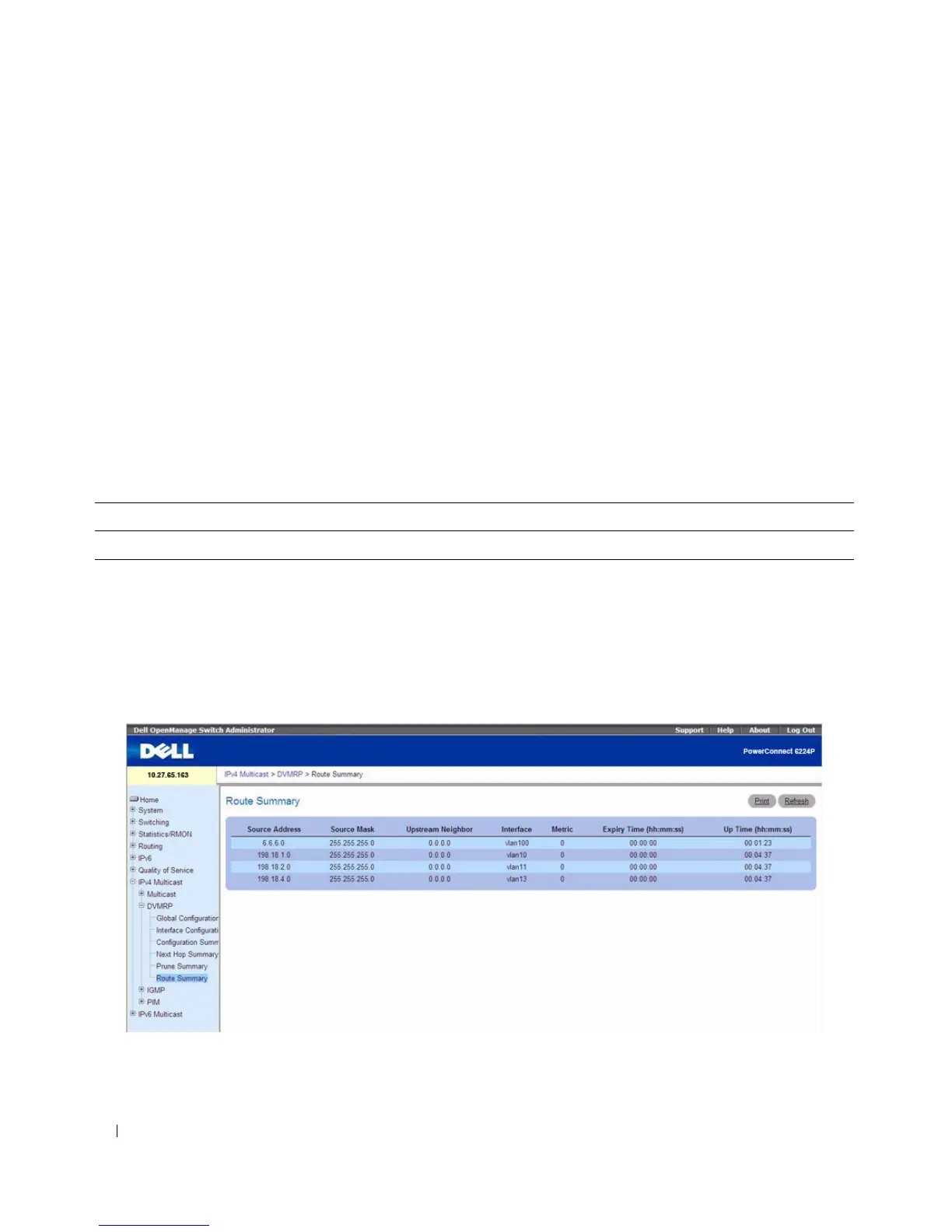

Figure 12-13. Route Summary
The Route Summary page displays the following fields:
Table 12-12. DVMRP Prune Summary Command
CLI Command Description
show ip dvmrp prune Displays the table that lists the router’s upstream prune information.

Dell PowerConnect 6224 Specifications

General

Switching Capacity	128 Gbps
Forwarding Rate	95.2 Mpps
Power Supply	100-240 VAC, 50/60 Hz
RAM	128 MB
Flash Memory	32 MB
Layer Support	Layer 2/3
Stacking	Up to 12 units
Weight	12.1 lbs
MAC Address Table Size	16, 000
Jumbo Frame Support	Up to 9, 216 bytes
Operating Temperature	0°C to 45°C
Storage Temperature	-40°C to 70°C
Humidity	10% to 90% (non-condensing)
Ports	24 x 10/100/1000BASE-T
VLAN Support	Yes (802.1Q)
Dimensions	17.3 x 13.8 x 1.7 in (440 x 350 x 44 mm)
