138 Configuring System Information
RAM Log Table
Use the RAM Log Table page to view information about specific RAM (cache) log entries, including the
time the log was entered, the log severity, and a description of the log.
To display the RAM Log Table, click System
→ Logs → RAM Log in the tree view.

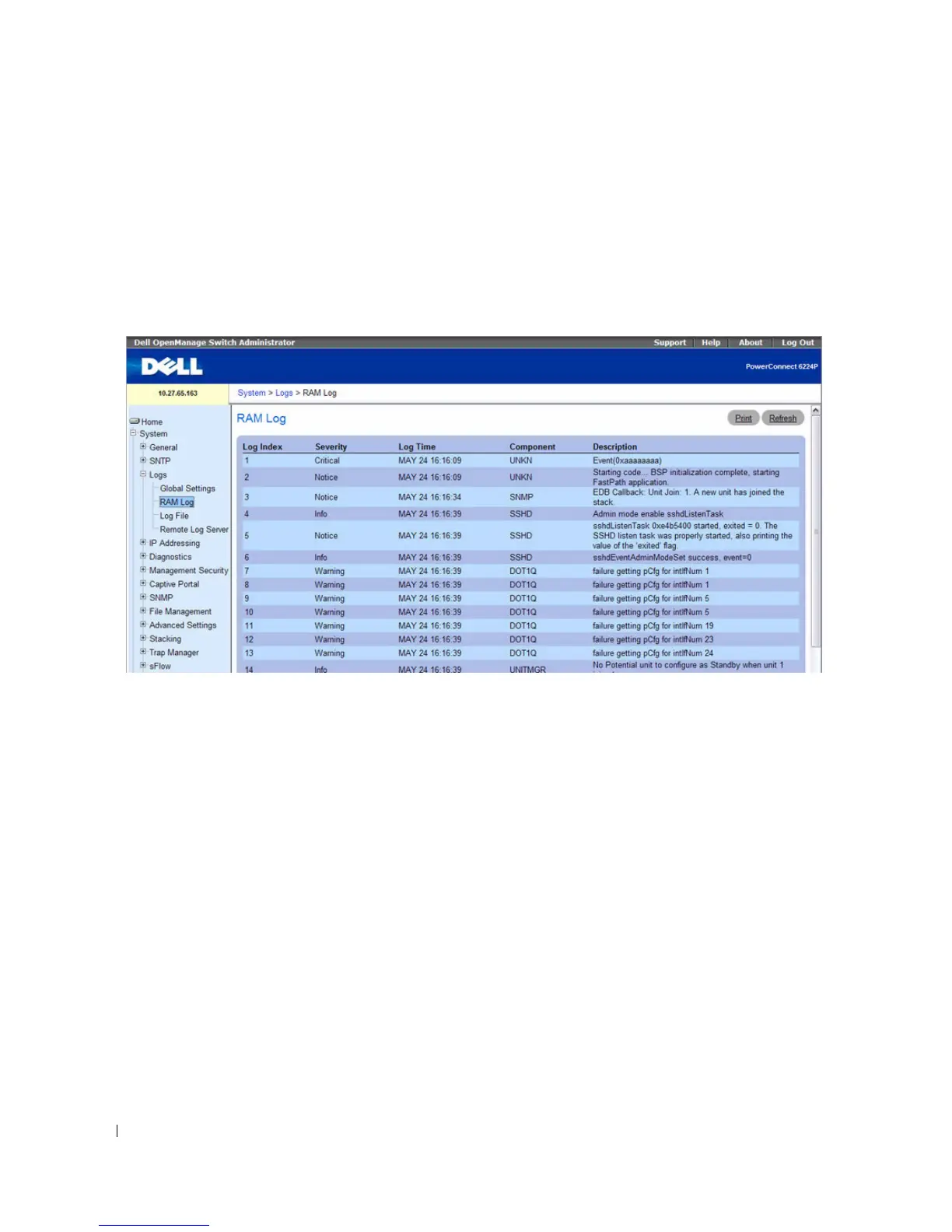

Figure 6-17. RAM Log Table
The RAM Log Table contains the following fields:
• Log Index — Indicates the Log Number within the Log RAM Table.
•
Severity — The log severity.
•
Log Time — The time at which the log was entered in the Log RAM Table.
•
Component — The component being logged.
•
Description — The log description.
Removing Log Information
1. Open the RAM Log Table page.
2. Click Clear Log .
The log information is removed from the log file table, and the device is updated.
Displaying Log Information Using CLI Commands
For information about the CLI commands that perform this function, see the Syslog Commands chapter
in the
CLI Reference Guide . The following table summarizes the equivalent CLI commands you use to
remove log information.

Dell PowerConnect 6224 Specifications

General

Switching Capacity	128 Gbps
Forwarding Rate	95.2 Mpps
Power Supply	100-240 VAC, 50/60 Hz
RAM	128 MB
Flash Memory	32 MB
Layer Support	Layer 2/3
Stacking	Up to 12 units
Weight	12.1 lbs
MAC Address Table Size	16, 000
Jumbo Frame Support	Up to 9, 216 bytes
Operating Temperature	0°C to 45°C
Storage Temperature	-40°C to 70°C
Humidity	10% to 90% (non-condensing)
Ports	24 x 10/100/1000BASE-T
VLAN Support	Yes (802.1Q)
Dimensions	17.3 x 13.8 x 1.7 in (440 x 350 x 44 mm)
