Dell PowerConnect 6224 User Manual

166 Configuring System Information
Select Authentication
After authentication profiles are defined, you can apply them to management access methods. For
example, console users can be authenticated by Authentication Profile List 1, while Telnet users are
authenticated by Authentication Profile List 2.
To display the Select Authentication page, click System
→ Management Security → Select
Authentication in the tree view.

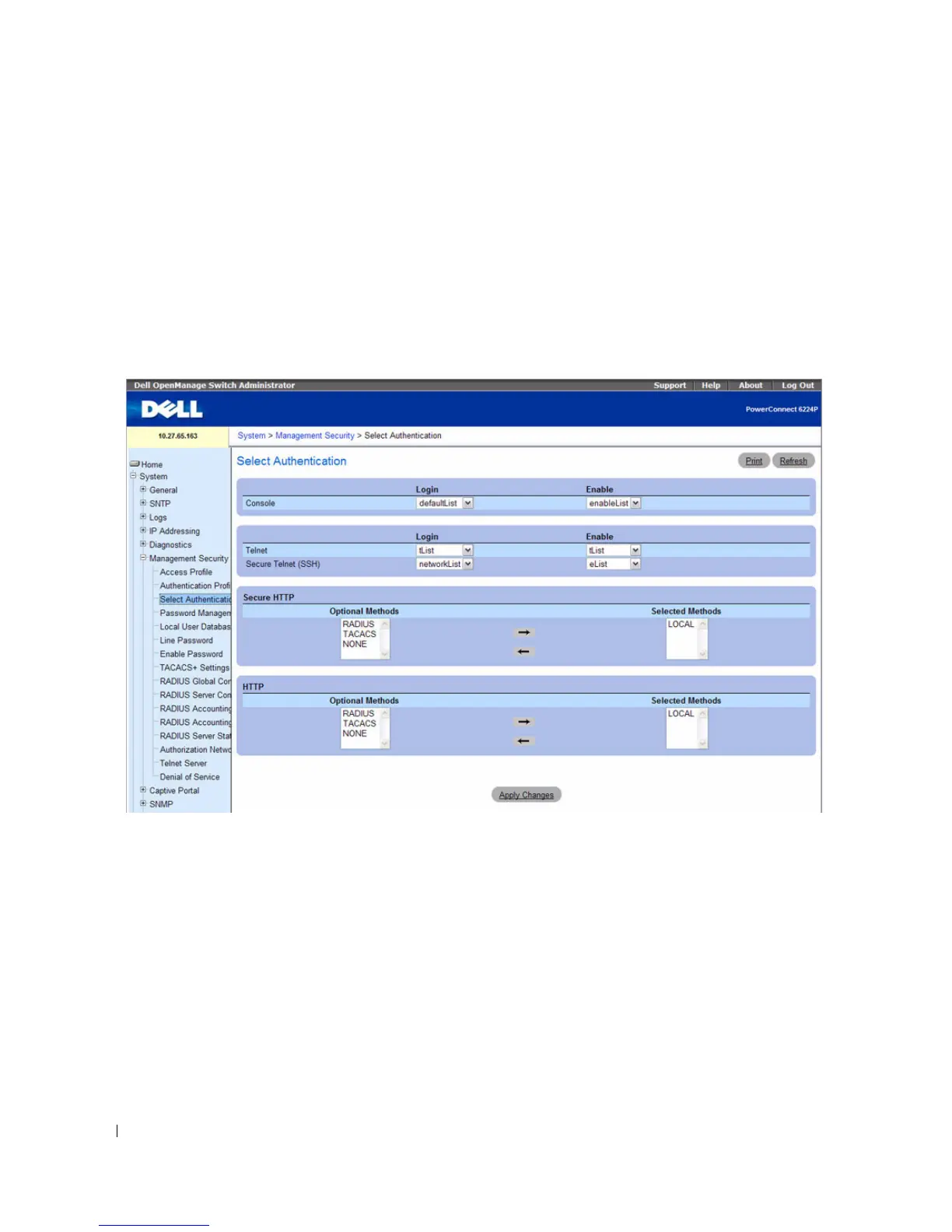

Figure 6-43. Select Authentication
The Select Authentication page contains the following fields:
• Console — Authentication profiles used to authenticate console users.
•
Telnet — Authentication profiles used to authenticate Telnet users.
•
Secure Telnet (SSH ) — Authentication profiles used to authenticate Secure Shell (SSH) users. SSH
provides clients secure and encrypted remote connections to a device.
•
Secure HTTP and HTTP — Authentication method used for Secure HTTP access and HTTP access,
respectively. Possible field values are:
–
None — No authentication method is used for access.
–
Local — Authentication occurs locally.
–
RADIUS — Authentication occurs at the RADIUS server.

Dell PowerConnect 6224 Specifications

General

Switching Capacity	128 Gbps
Forwarding Rate	95.2 Mpps
Power Supply	100-240 VAC, 50/60 Hz
RAM	128 MB
Flash Memory	32 MB
Layer Support	Layer 2/3
Stacking	Up to 12 units
Weight	12.1 lbs
MAC Address Table Size	16, 000
Jumbo Frame Support	Up to 9, 216 bytes
Operating Temperature	0°C to 45°C
Storage Temperature	-40°C to 70°C
Humidity	10% to 90% (non-condensing)
Ports	24 x 10/100/1000BASE-T
VLAN Support	Yes (802.1Q)
Dimensions	17.3 x 13.8 x 1.7 in (440 x 350 x 44 mm)
