Dell PowerConnect 6224 User Manual

Configuring Switching Information 429
LLDP-MED Local Device Information
Use the LLDP-MED Local Device Information page to view the advertised LLDP local data for each
port.
To display the LLDP-MED Local Device Information page, click Switching
→ LLDP → LLDP-MED →
LLDP-MED Local Device Information in the tree view.

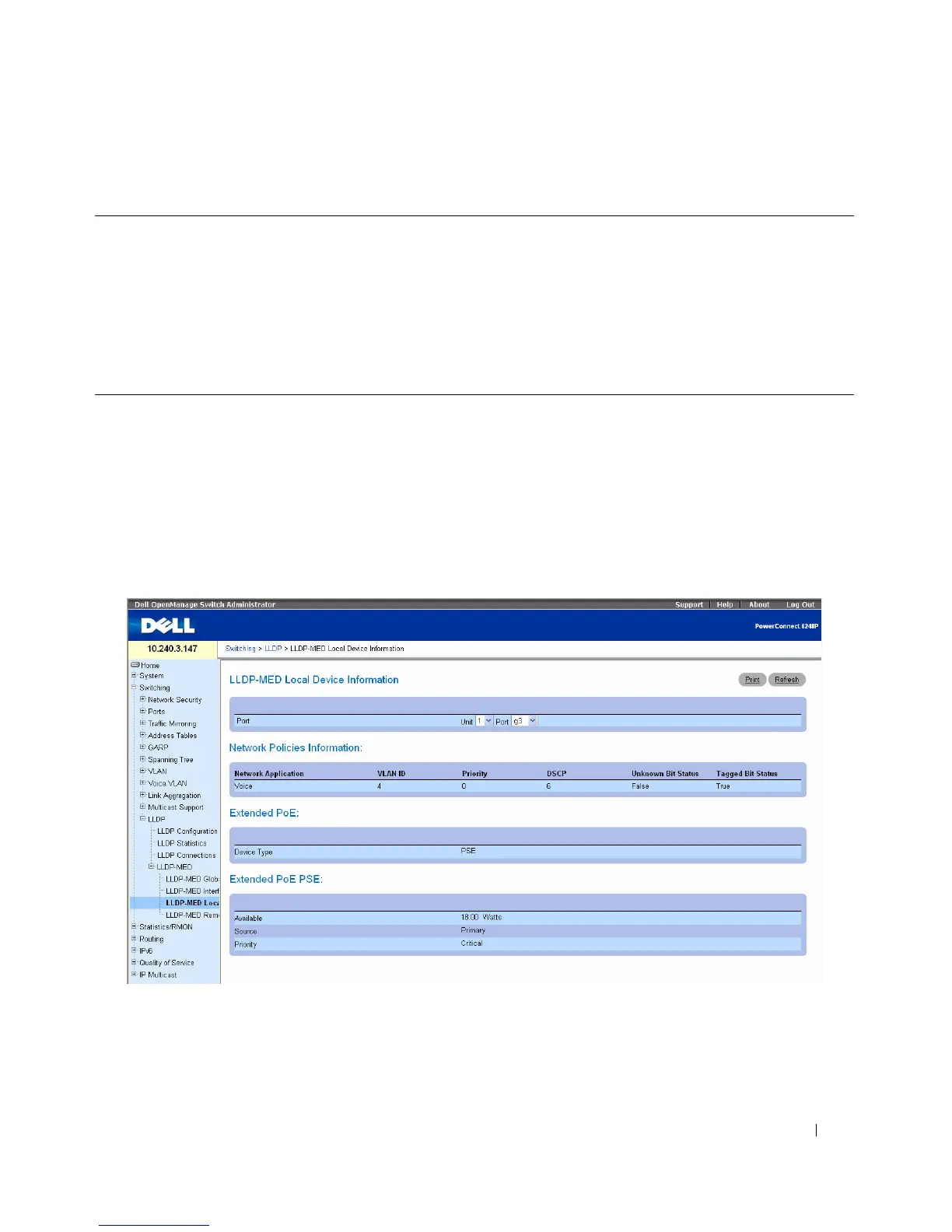

Figure 7-102. LLDP-MED Local Device Information
The LLDP-MED Local Device Information page contains the following fields:
• Port — Select the unit and port to display the LLDP local data advertised by the port. The port drop-
down list contains only the ports with LLDP-MED enabled.
Table 7-54. LLDP MED Interface Commands
CLI Command Description
lldp med Enables/disables LLDP-MED on an interface.
lldp med confignotification Enables sending the topology change notification.
lldp med transmit-tlv Specifies which optional TLVs in the LLDP MED set are transmitted
in the LLDPDUs.
show lldp med interface Displays a summary of the current LLDP MED configuration for a
specific interface.

Dell PowerConnect 6224 Specifications

General

Switching Capacity	128 Gbps
Forwarding Rate	95.2 Mpps
Power Supply	100-240 VAC, 50/60 Hz
RAM	128 MB
Flash Memory	32 MB
Layer Support	Layer 2/3
Stacking	Up to 12 units
Weight	12.1 lbs
MAC Address Table Size	16, 000
Jumbo Frame Support	Up to 9, 216 bytes
Operating Temperature	0°C to 45°C
Storage Temperature	-40°C to 70°C
Humidity	10% to 90% (non-condensing)
Ports	24 x 10/100/1000BASE-T
VLAN Support	Yes (802.1Q)
Dimensions	17.3 x 13.8 x 1.7 in (440 x 350 x 44 mm)
