Dell PowerConnect 6224 User Manual

Configuring System Information 219
To display the Global Parameters page, click System → SNMP → Global Parameters in the tree view.

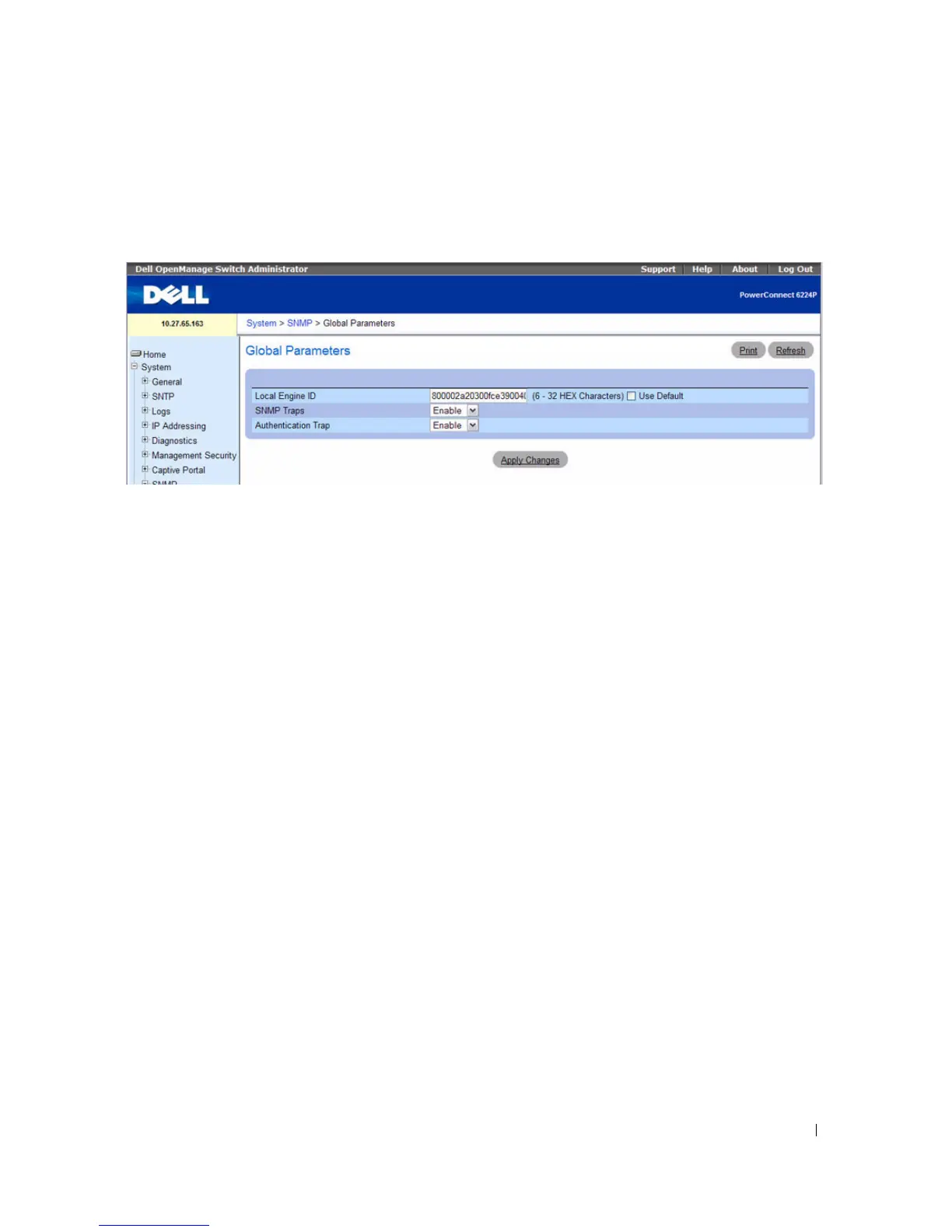

Figure 6-85. Global Parameters
The Global Parameters page contains the following parameters:
• Local Engine ID (6 – 32 hexadecimal characters) — Sets local SNMP engine ID.
•
Use Default — Configures the device to use the default SNMP EngineID.
•
SNMP Traps — Enables or disables the device sending SNMP notifications.
•
Authentication Trap — Enables or disables the device sending SNMP traps when authentication fails.
Setting Local SNMP Engine ID
1. Open the Global Parameters page .
2. Type desired hexadecimal ID into the Local Engine ID field.
3. Click Apply Changes .
The new Local Engine ID is set, and the device is updated.
Using Default SNMP Engine ID
1. Open the Global Parameters page .
2. Click the Use Default check box.
3. Click Apply Changes .
The default SNMP engine ID, based on the MAC address, is created and the device is updated.
Enabling SNMP Traps
1. Open the Global Parameters page .
2. Select Enable in the SNMP Traps field.
3. Click Apply Changes .

Dell PowerConnect 6224 Specifications

General

Switching Capacity	128 Gbps
Forwarding Rate	95.2 Mpps
Power Supply	100-240 VAC, 50/60 Hz
RAM	128 MB
Flash Memory	32 MB
Layer Support	Layer 2/3
Stacking	Up to 12 units
Weight	12.1 lbs
MAC Address Table Size	16, 000
Jumbo Frame Support	Up to 9, 216 bytes
Operating Temperature	0°C to 45°C
Storage Temperature	-40°C to 70°C
Humidity	10% to 90% (non-condensing)
Ports	24 x 10/100/1000BASE-T
VLAN Support	Yes (802.1Q)
Dimensions	17.3 x 13.8 x 1.7 in (440 x 350 x 44 mm)
