Configuring Switching Information 365

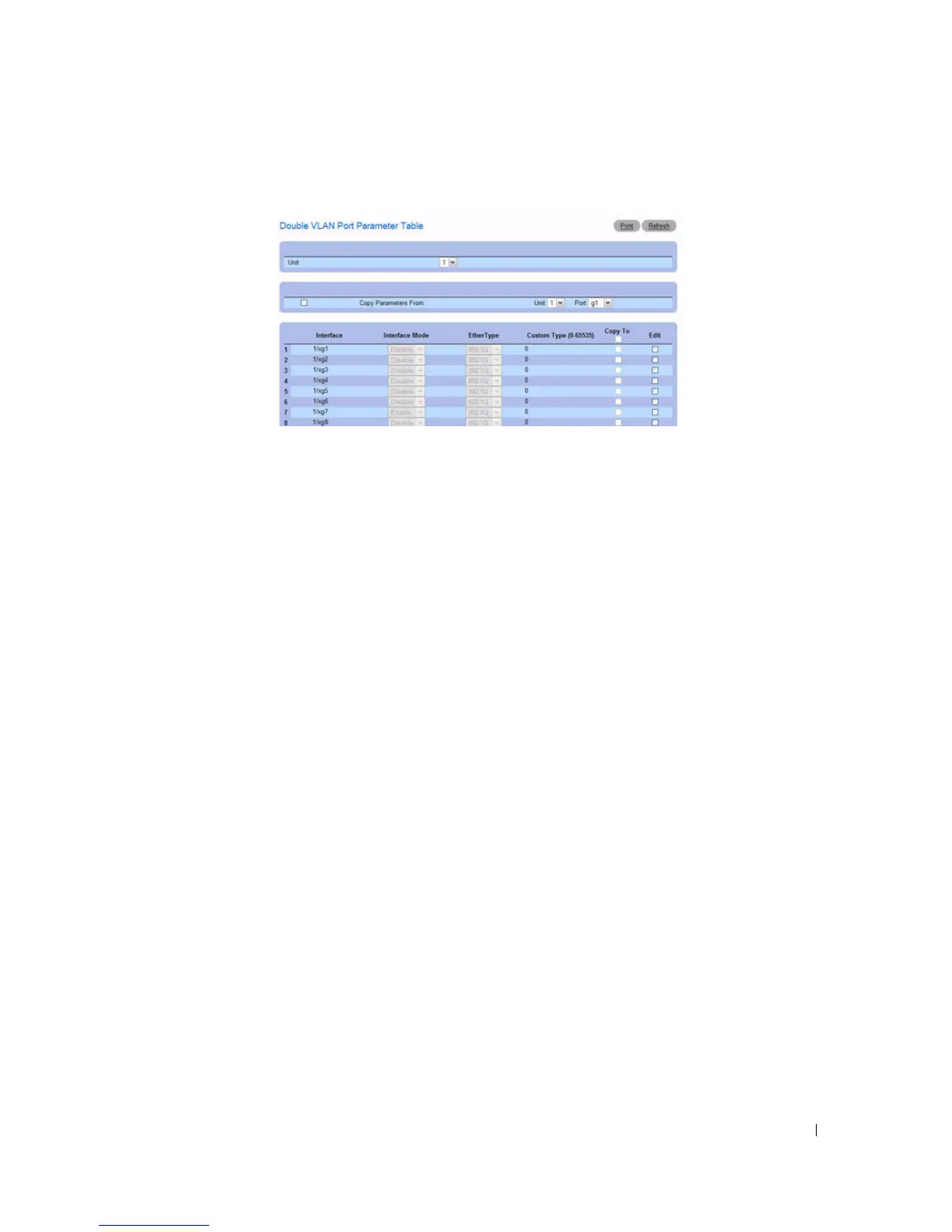

Figure 7-53. Double VLAN Port Parameters Table
Copying Double VLAN Parameters
1. Open the Double VLAN Interface Configuration page.
2. Click Show All .
The
Double VLAN Port Parameters Table displays.
3. Specify the Port you are copying from in Copy Parameters From .
4. Click Copy To for each Interface to receive these parameters.
5. Click Apply Changes .
The Double VLAN port settings are copied, and the device is updated.
Modifying Settings for Multiple Ports
1. Open the Double VLAN Interface Configuration page.
2. Click Show All .
The
Double VLAN Port Parameters Table displays.
3. Click Edit for each Port to modify.
4. Edit fields as needed.
5. Click Apply Changes .
The Double VLAN port settings are modified, and the device is updated.
Configuring Double VLAN Tagging Using CLI Commands
For information about the CLI commands that perform this function, see the following chapter in the
CLI Reference Guide :
• VLAN Commands
The following table summarizes the equivalent CLI commands for this feature.

Dell PowerConnect 6224 Specifications

General

Switching Capacity	128 Gbps
Forwarding Rate	95.2 Mpps
Power Supply	100-240 VAC, 50/60 Hz
RAM	128 MB
Flash Memory	32 MB
Layer Support	Layer 2/3
Stacking	Up to 12 units
Weight	12.1 lbs
MAC Address Table Size	16, 000
Jumbo Frame Support	Up to 9, 216 bytes
Operating Temperature	0°C to 45°C
Storage Temperature	-40°C to 70°C
Humidity	10% to 90% (non-condensing)
Ports	24 x 10/100/1000BASE-T
VLAN Support	Yes (802.1Q)
Dimensions	17.3 x 13.8 x 1.7 in (440 x 350 x 44 mm)
