Dell PowerConnect 6224 User Manual

Configuring IPv6 617
To display the page, click IPv6 → IPv6 Statistics in the tree view.

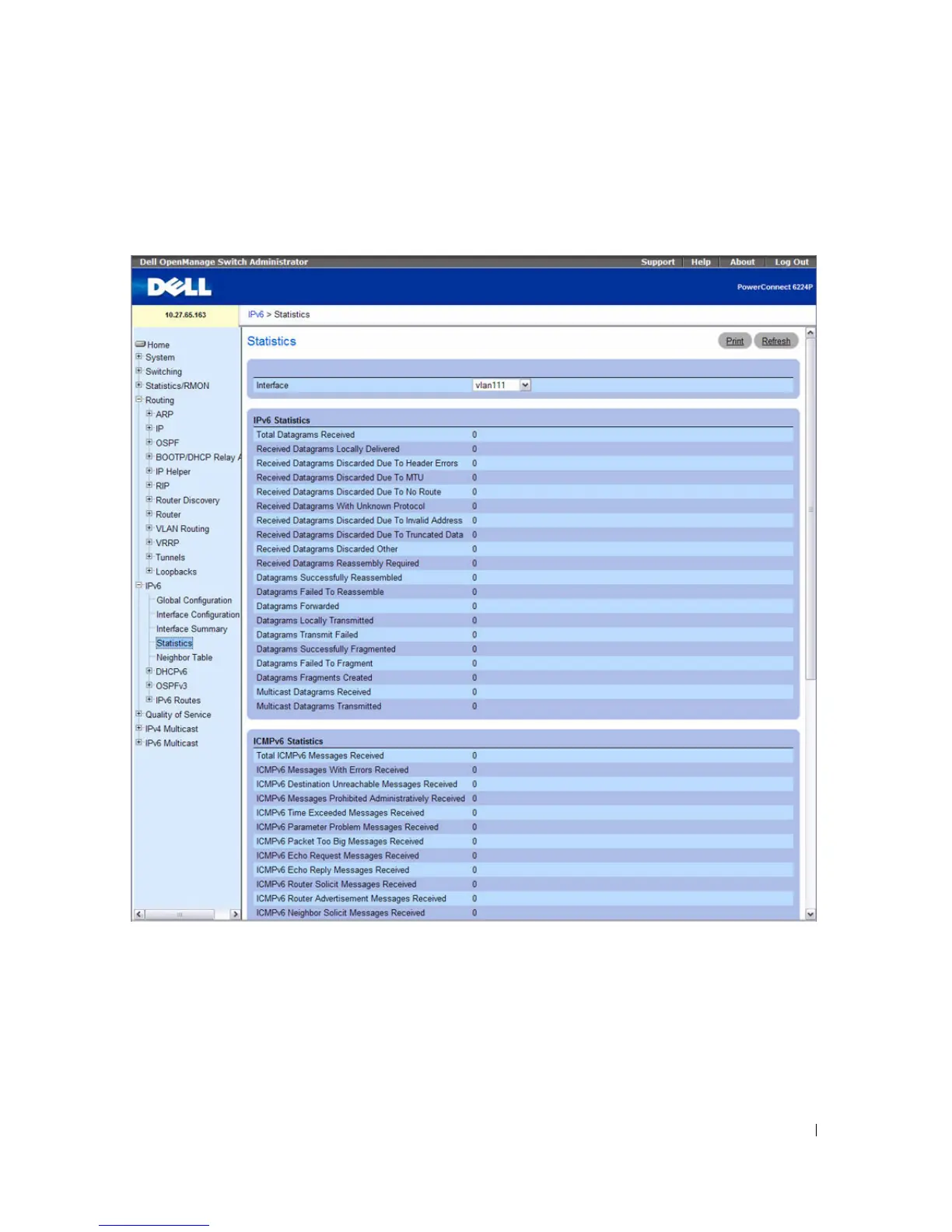

Figure 10-4. IPv6 Statistics
The IPv6 Statistics page contains the following fields:
• Interface — Selects the interface for which statistics are displayed. When the selection is changed, a
screen refresh occurs, causing all fields to be updated for the newly selected interface.
IPv6 Statistics
• Total Datagrams Received — The total number of input datagrams received by the interface,
including those received in error.

Dell PowerConnect 6224 Specifications

General

Switching Capacity	128 Gbps
Forwarding Rate	95.2 Mpps
Power Supply	100-240 VAC, 50/60 Hz
RAM	128 MB
Flash Memory	32 MB
Layer Support	Layer 2/3
Stacking	Up to 12 units
Weight	12.1 lbs
MAC Address Table Size	16, 000
Jumbo Frame Support	Up to 9, 216 bytes
Operating Temperature	0°C to 45°C
Storage Temperature	-40°C to 70°C
Humidity	10% to 90% (non-condensing)
Ports	24 x 10/100/1000BASE-T
VLAN Support	Yes (802.1Q)
Dimensions	17.3 x 13.8 x 1.7 in (440 x 350 x 44 mm)
