Configuring Quality of Service 691

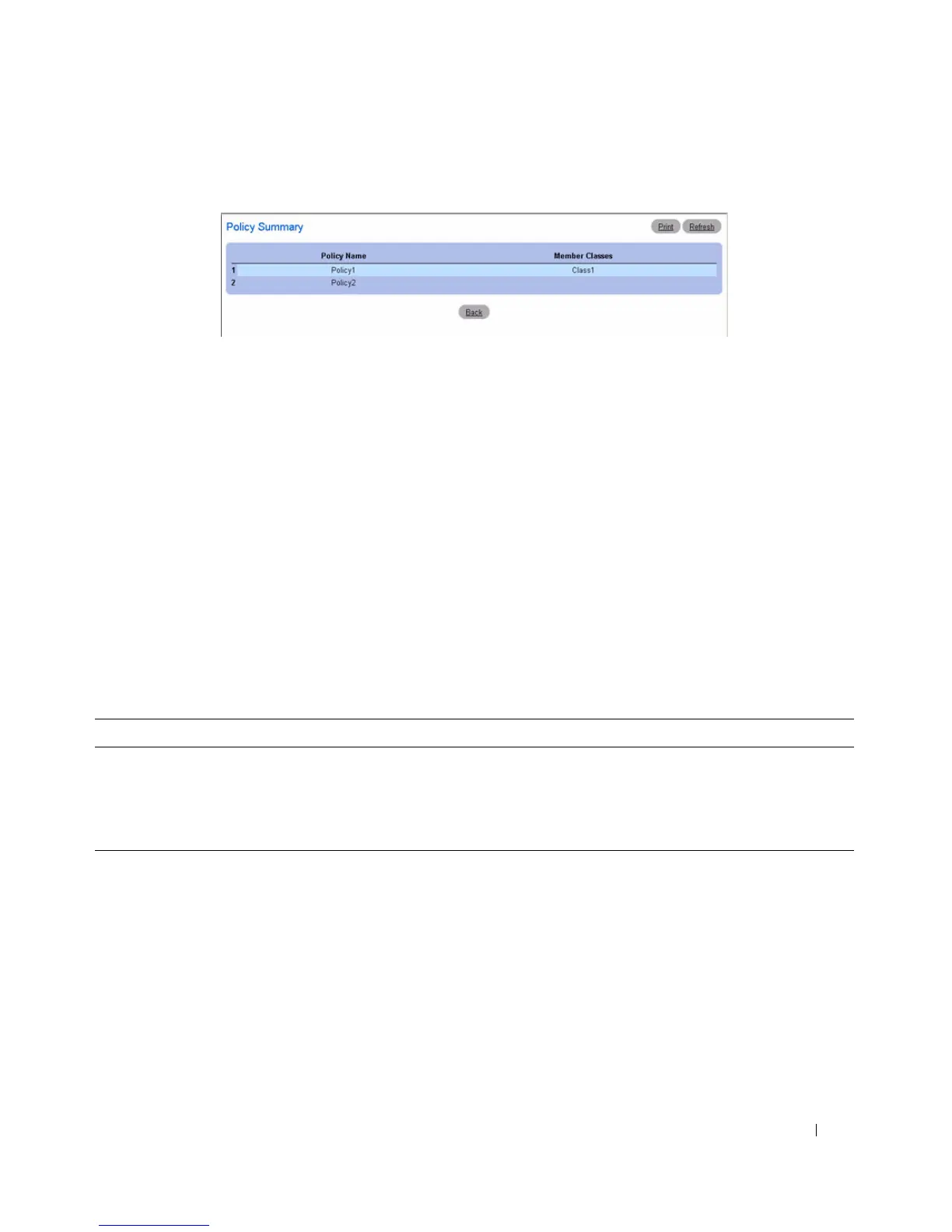

Figure 11-8. Diffserv Policy Summary
Removing a Policy Configuration
1. Open the Diffserv Policy Configuration page.
2. Select the policy name to be deleted from the Policy Name drop-down menu.
3. Check the Remove check box.
4. Click Apply Changes .
The associated policy configuration is removed, and the device is updated.
Defining Policy Configurations Using CLI Commands
For information about the CLI commands that perform this function, see the following chapter in the
CLI Reference Guide:
• QoS Commands
The following table summarizes the equivalent CLI commands for this feature.
Table 11-4. Policy Configuration Commands
CLI Command Description
policy-map Establishes a new DiffServ policy
show policy-map Displays all configuration information for the specified policy.
show policy-map interface Displays policy-oriented statistics information for the specified
interface and direction

Dell PowerConnect 6224 Specifications

General

Switching Capacity	128 Gbps
Forwarding Rate	95.2 Mpps
Power Supply	100-240 VAC, 50/60 Hz
RAM	128 MB
Flash Memory	32 MB
Layer Support	Layer 2/3
Stacking	Up to 12 units
Weight	12.1 lbs
MAC Address Table Size	16, 000
Jumbo Frame Support	Up to 9, 216 bytes
Operating Temperature	0°C to 45°C
Storage Temperature	-40°C to 70°C
Humidity	10% to 90% (non-condensing)
Ports	24 x 10/100/1000BASE-T
VLAN Support	Yes (802.1Q)
Dimensions	17.3 x 13.8 x 1.7 in (440 x 350 x 44 mm)
