Configuring Quality of Service 693
– Policing : Allows you to configure how policing is performed, as well as configure what happens to
packets that are considered conforming and non-conforming. For more information on the fields
that display when
Policing is selected, see "Policing Traffic Condition."
•
Redirect Interface — Displays whether Redirect Interface applies to this policy-class, and specifies the
interface or LAG used.
•
Flow Based Mirroring — Displays whether Flow Based Mirroring applies to this policy-class, and
specifies the interface or LAG used.
Defining a Policy-Class Instance
1. Open the Diffserv Policy Class Definition page.
2. Select a policy and member class to associate.
3. Specify attributes to apply to this policy-class instance using the remaining fields on the page.
4. Click Apply Changes .
The policy-class is defined, and the device is updated.
Packet Marking Traffic Condition
When Marking is chosen as the Traffic Condition, the following Packet Marking page displays.

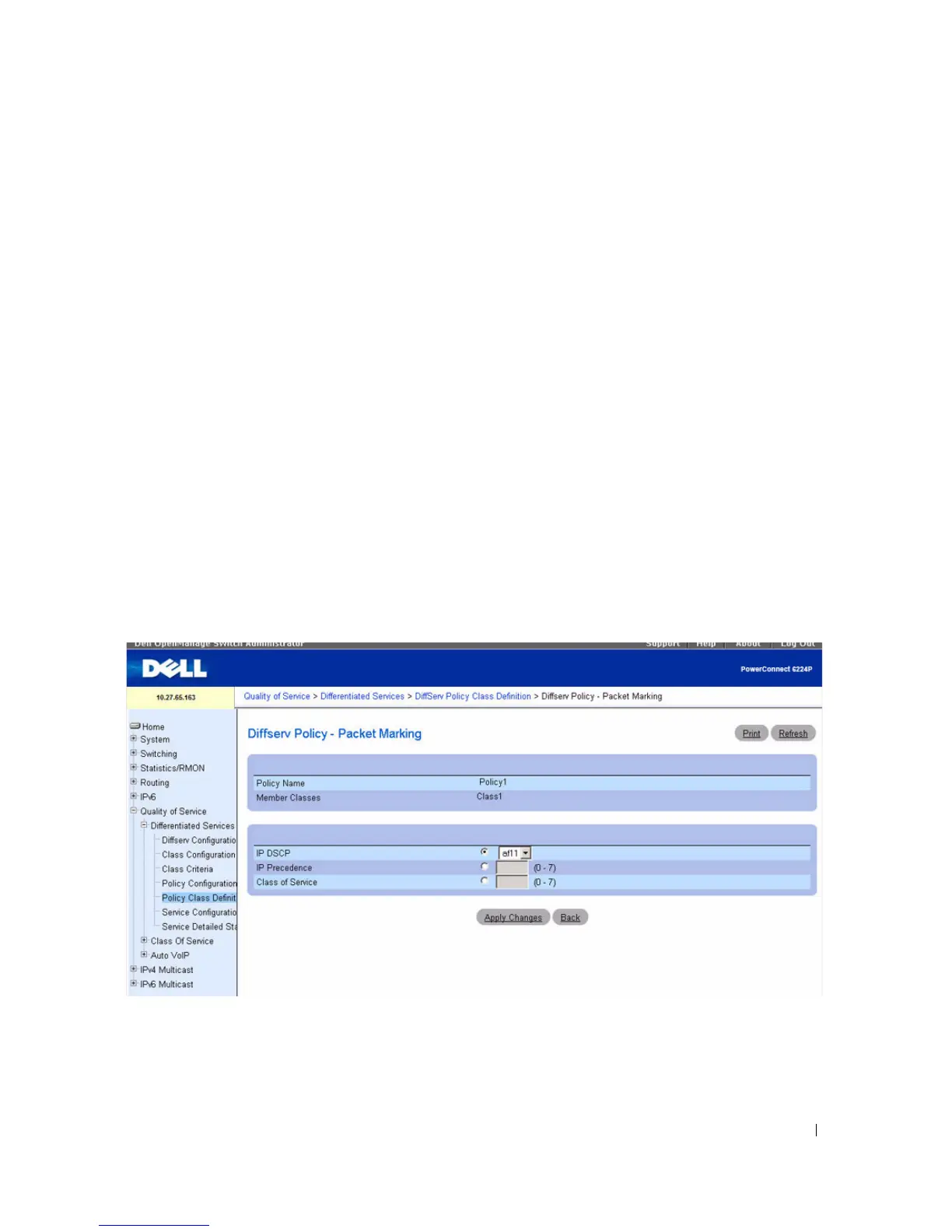

Figure 11-10. Policy Class Definition - Packet Marking
The Diffserv Policy - Packet Marking page contains the following fields:
• Policy Name — Displays the policy associated with a member class.
•
Member Classes — Displays the member class associated with this policy name.

Dell PowerConnect 6224 Specifications

General

Switching Capacity	128 Gbps
Forwarding Rate	95.2 Mpps
Power Supply	100-240 VAC, 50/60 Hz
RAM	128 MB
Flash Memory	32 MB
Layer Support	Layer 2/3
Stacking	Up to 12 units
Weight	12.1 lbs
MAC Address Table Size	16, 000
Jumbo Frame Support	Up to 9, 216 bytes
Operating Temperature	0°C to 45°C
Storage Temperature	-40°C to 70°C
Humidity	10% to 90% (non-condensing)
Ports	24 x 10/100/1000BASE-T
VLAN Support	Yes (802.1Q)
Dimensions	17.3 x 13.8 x 1.7 in (440 x 350 x 44 mm)
