700 Configuring Quality of Service

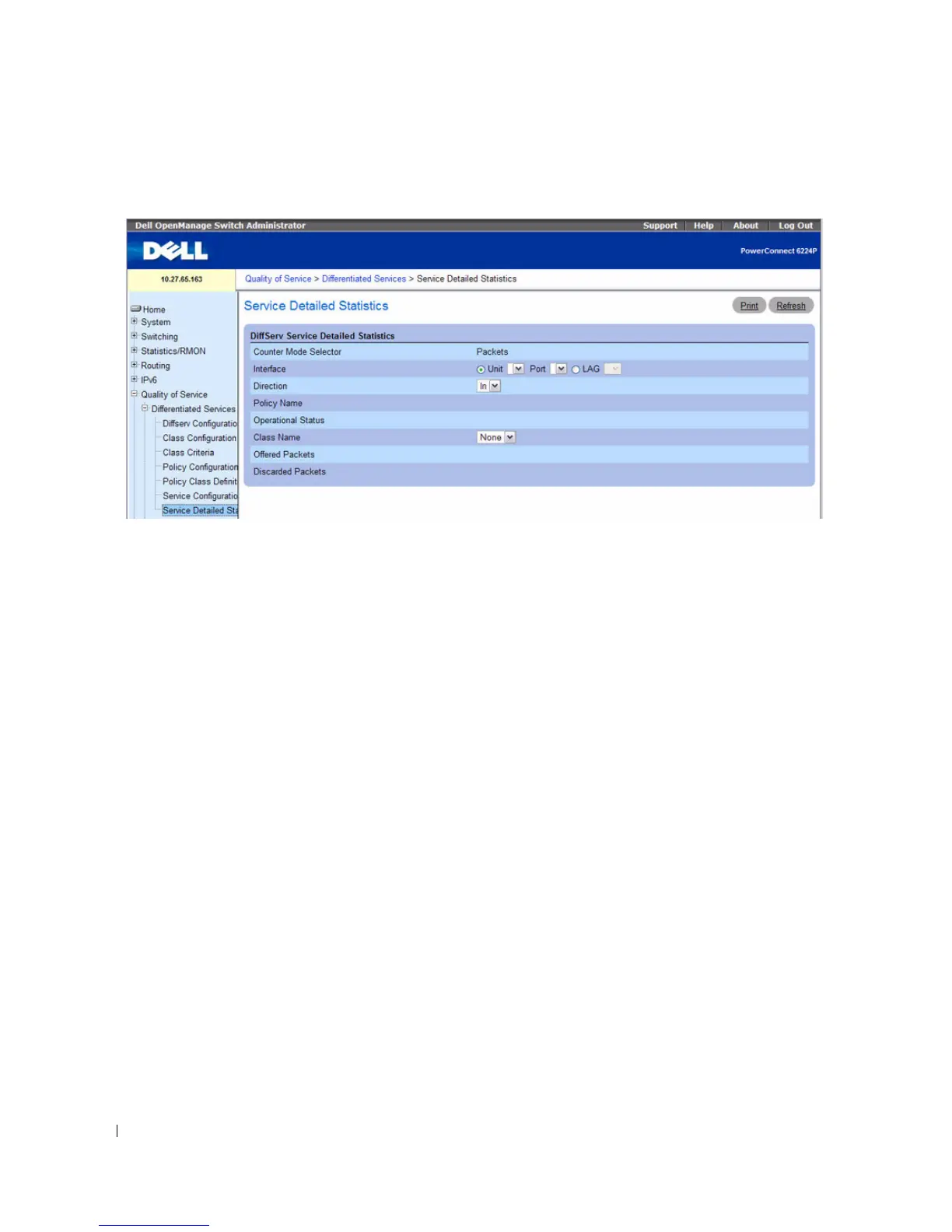

Figure 11-15. Diffserv Service Detailed Statistics
The Diffserv Service Detailed Statistics page contains the following fields:
• Counter Mode Selector — Type of statistics to display. Packets is the only available type.
•
Interface — Selects the Unit and Port or LAG for which service statistics are to display.
•
Direction — Selects the direction of packets for which service statistics are to display.
•
Policy Name — Displays the policy associated with the selected interface.
•
Operational Status — Displays whether the policy is active or not on this interface.
•
Member Classes — Selects the member class for which octet statistics are to display.
•
Offered Packets — Displays how many packets match the policy.
•
Discarded Packets — Displays how many packets are dropped by the policy.
Displaying Service Statistics
1. Open the Diffserv Service Detailed Statistics page.
2. Complete the fields as needed.
Packet statistics display for the specified interface, direction, and class.
Configuring Service Statistics Using CLI Commands
For information about the CLI command that performs this function, see the following chapter in the
CLI Reference Guide:
• QoS Commands
The following table summarizes the equivalent CLI commands for this feature.

Dell PowerConnect 6224 Specifications

General

Switching Capacity	128 Gbps
Forwarding Rate	95.2 Mpps
Power Supply	100-240 VAC, 50/60 Hz
RAM	128 MB
Flash Memory	32 MB
Layer Support	Layer 2/3
Stacking	Up to 12 units
Weight	12.1 lbs
MAC Address Table Size	16, 000
Jumbo Frame Support	Up to 9, 216 bytes
Operating Temperature	0°C to 45°C
Storage Temperature	-40°C to 70°C
Humidity	10% to 90% (non-condensing)
Ports	24 x 10/100/1000BASE-T
VLAN Support	Yes (802.1Q)
Dimensions	17.3 x 13.8 x 1.7 in (440 x 350 x 44 mm)
