Dell PowerConnect 6224 User Manual

Configuring Dell PowerConnect 73

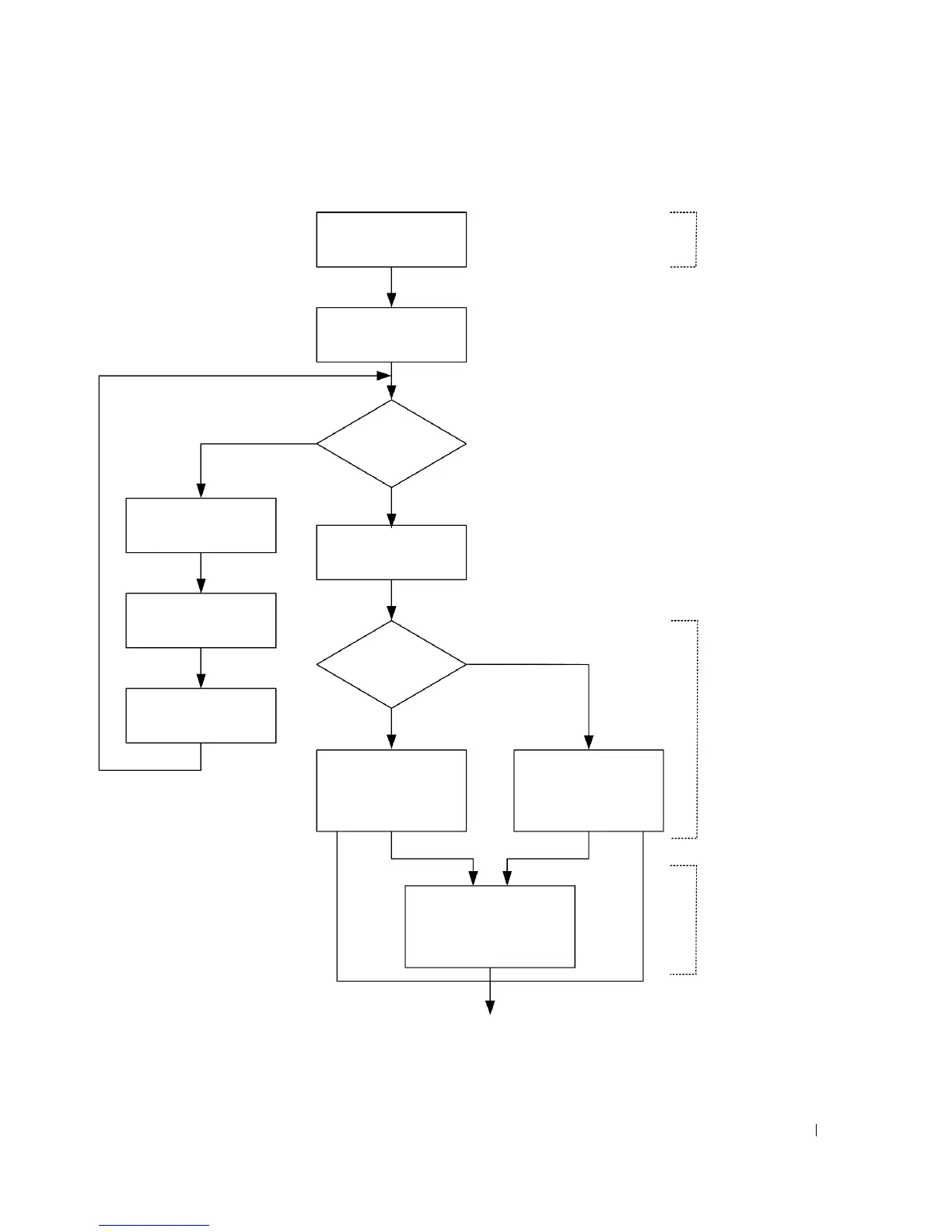

Figure 5-1. Installation and Configuration Flow Chart
Connect Switch and
Console
Power on
Choose option 2
Boot menu
(Special functions)
Loading program from
flash to RAM
Initial Configuration: IP
Address, Subnetmask,
Users Basic Security
configuration
Wizard Configuration
Process
Advanced Configuration:
IP Address from DHCP,
IP Address from bootp,
Security management
Standard
Switch
Installation
Reboot
Advanced
Switch
Installation
Yes
No
S
u
s
p
e
n
d
B
o
o
t
u
p
Enter Wizard
Hardware
Setup
No
Yes

Dell PowerConnect 6224 Specifications

General

Switching Capacity	128 Gbps
Forwarding Rate	95.2 Mpps
Power Supply	100-240 VAC, 50/60 Hz
RAM	128 MB
Flash Memory	32 MB
Layer Support	Layer 2/3
Stacking	Up to 12 units
Weight	12.1 lbs
MAC Address Table Size	16, 000
Jumbo Frame Support	Up to 9, 216 bytes
Operating Temperature	0°C to 45°C
Storage Temperature	-40°C to 70°C
Humidity	10% to 90% (non-condensing)
Ports	24 x 10/100/1000BASE-T
VLAN Support	Yes (802.1Q)
Dimensions	17.3 x 13.8 x 1.7 in (440 x 350 x 44 mm)
