Theory of Operation
Energy Saver Mode (Deep Sleep)
To save power consumption, the printer enters Energy Saver mode when it has not
received print data for a certain time after it has entered the Standby mode. The
default waiting time before switching to Energy Saver mode is 1 minute. It can be
set in increments of 1 minute in the range between 1 and 240 minutes from the
Control Panel. The printer cannot be prohibited from entering this mode.
This is not guaranteed when a non-standard HDD etc. is installed as an option.
Recovery from Energy Saver Mode
The printer returns to Ready mode when a print job is received or the Energy Saver
button on the Control Panel is pressed during Energy Saver mode.
Operating Mode Status Transition

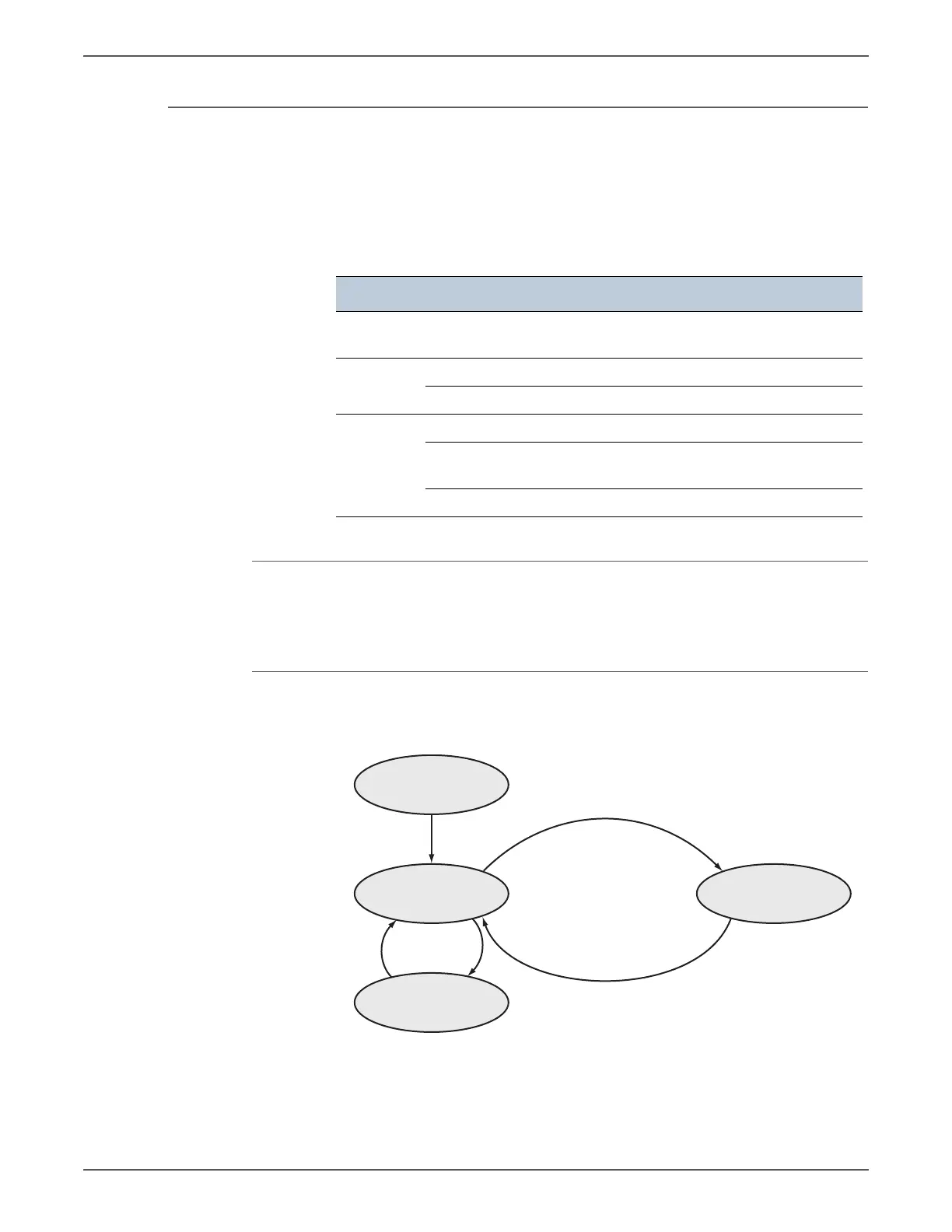

The status transition among the operating modes is illustrated as in the illustration
below.
Item Status
Processor
Image Processor Board Sleep
UI LCD No display
LED On (Power Off)
IOT Fusing system (Fuser Assembly) Paused
Recording system (Transfer/
Developer)
Paused
MCU PWB Paused
Power Off
Standby Mode
Ready Mode
Energy Saver Mode
Job
Job
StartedStarted
JobJob
CompletedCompleted
Job
Started
Job
Completed
When a certain
time has passed
When a Job is received
s7500-429
