8-132 Phaser 7500 Printer Service Manual
Service Parts Disassembly
REP 13.3 Tray 1 Feed/ Nudger Motor
PL13.2.18
1. Remove the Tray 1 Feeder Assembly (REP 13.1, page 8-130).
2. Remove 1 screw (silver, Tapped, 8mm) that secures the Harness Holder and
slide the Harness Holder towards you to remove it.
3. Disconnect the wiring harness connector that is connected to the Tray 1 Feed/
Nudger Motor.
4. Remove 2 screws (silver, 6mm) that secure the Tray 1 Feed/ Nudger Motor and
remove the Tray 1 Feed/ Nudger Motor.

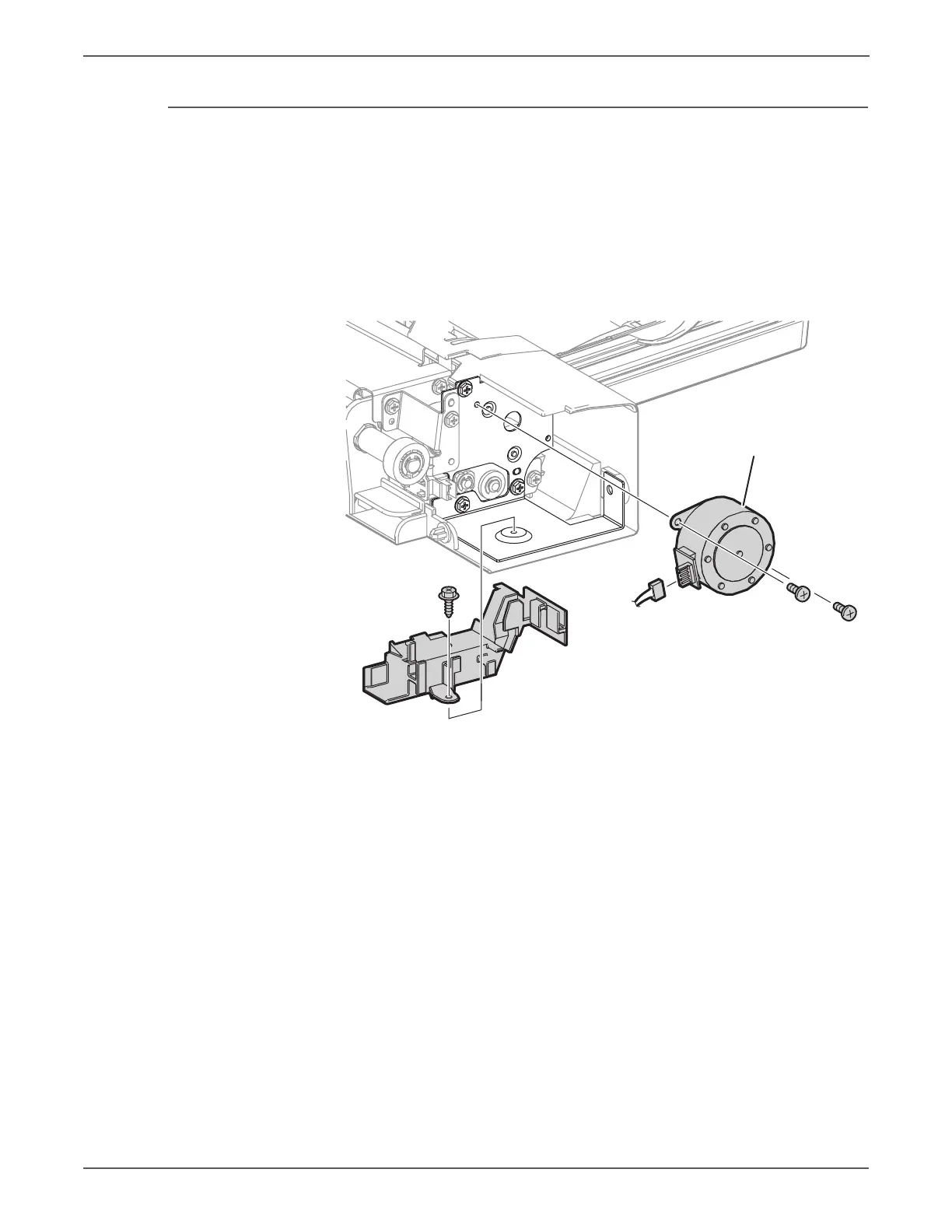

s7500-193
MPT (Tray 1) Feed/Nudger Motor
To Next Page
