Xerox PHASER 7500 Service Manual

Phaser 7500 Printer Service Manual 8-121
Service Parts Disassembly

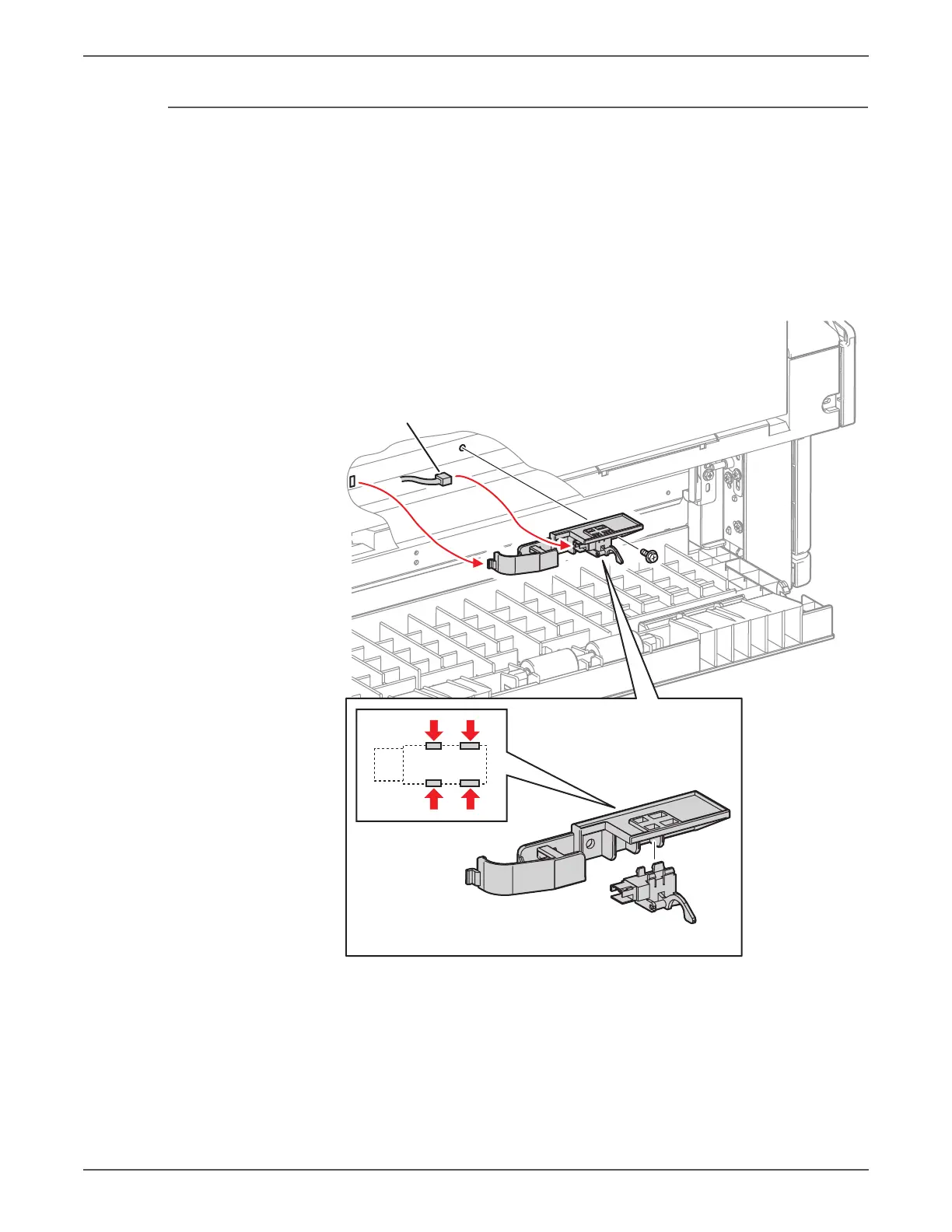

REP 11.11 Tray 3 Feed Out Sensor
PL11.6.3
1. Remove the STM Take-away Roll Assembly (REP 11.14, page 8-124).
2. Disconnect the wiring harness connector P/J108 that is connected to the Tray
3 Feed Out Sensor.
3. Remove 1 screw (silver, 8mm) that secures the Sensor Guide to the Tray
Module (1T) and remove the Sensor Guide.
4. Release the 4 hooks that secure the Tray 3 Feed Out Sensor to the Sensor
Guide and remove the Tray 3 Feed Out Sensor.
s7500-182
P/Jxxx
