8-30 Phaser 7500 Printer Service Manual
Service Parts Disassembly

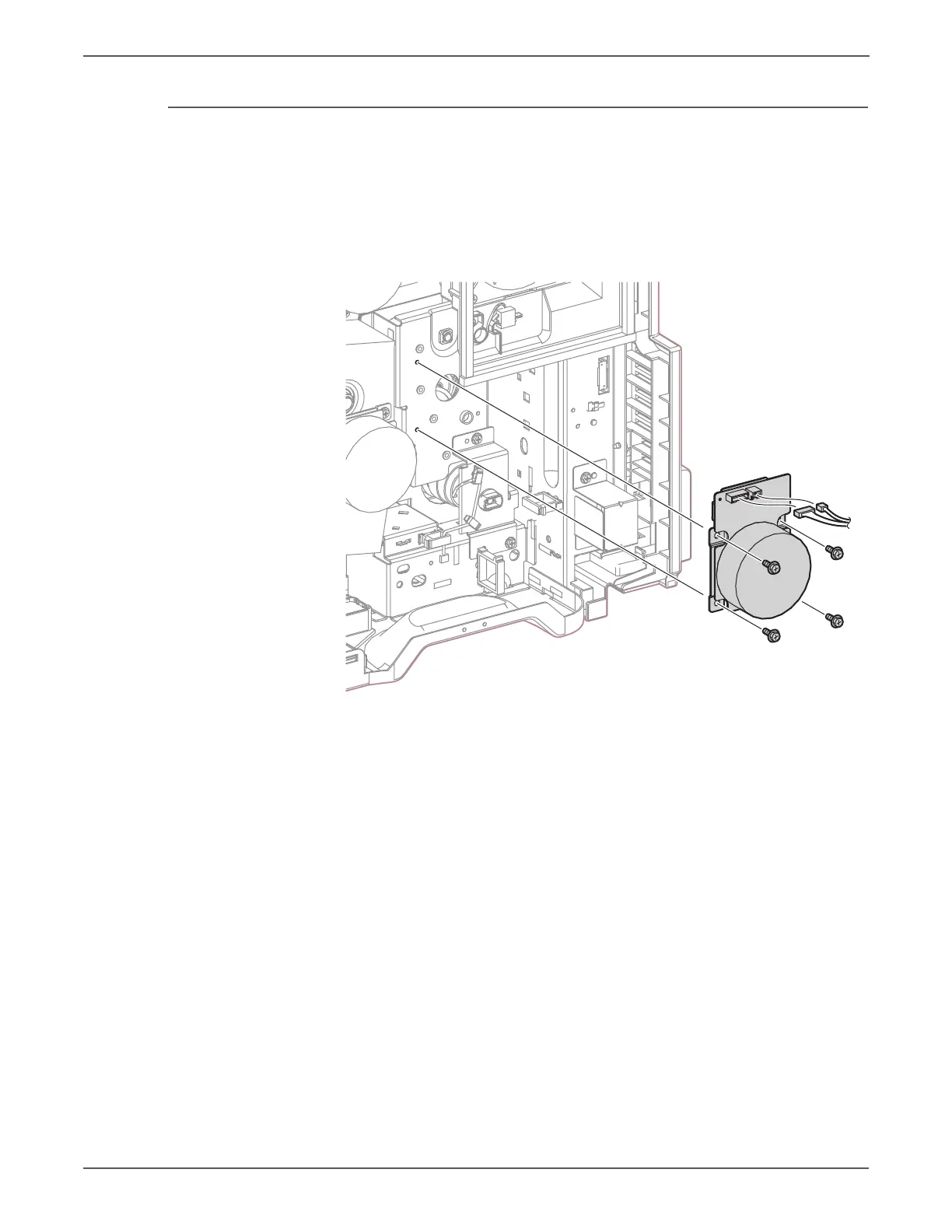

REP 3.5 Main Drive Motor Assembly
PL3.2.3
1. Remove the PWB Chassis Unit (REP 18.10, page 8-197).
2. Disconnect the 2 wiring harness connectors that are connected to the Main
Drive Motor Assembly.
3. Remove 4 screws (silver, 6mm) that secure the Main Drive Motor Assembly
and remove the Main Drive Motor Assembly.
s7500-085
