Xerox PHASER 7500 Service Manual

Phaser 7500 Printer Service Manual 8-145
Service Parts Disassembly
REP 13.14 Gear (27T)/ Nudger Cam/ Actuator
PL13.2.4/ PL13.2.5/ PL13.2.6
1. Remove the Drive Bracket Assembly (REP 13.13, page 8-144).
2. Remove the E-ring and remove the Sleeve Bearing.
3. Pull out the shaft and remove Gear (20T) and Gear (27T).
4. Remove the E-ring and remove the Sleeve Bearing #1.
5. Pull out the shaft and remove the Actuator and Gear (19T).
6. Pull out and remove Sleeve Bearing #2 and the Nudger Cam from the shaft.

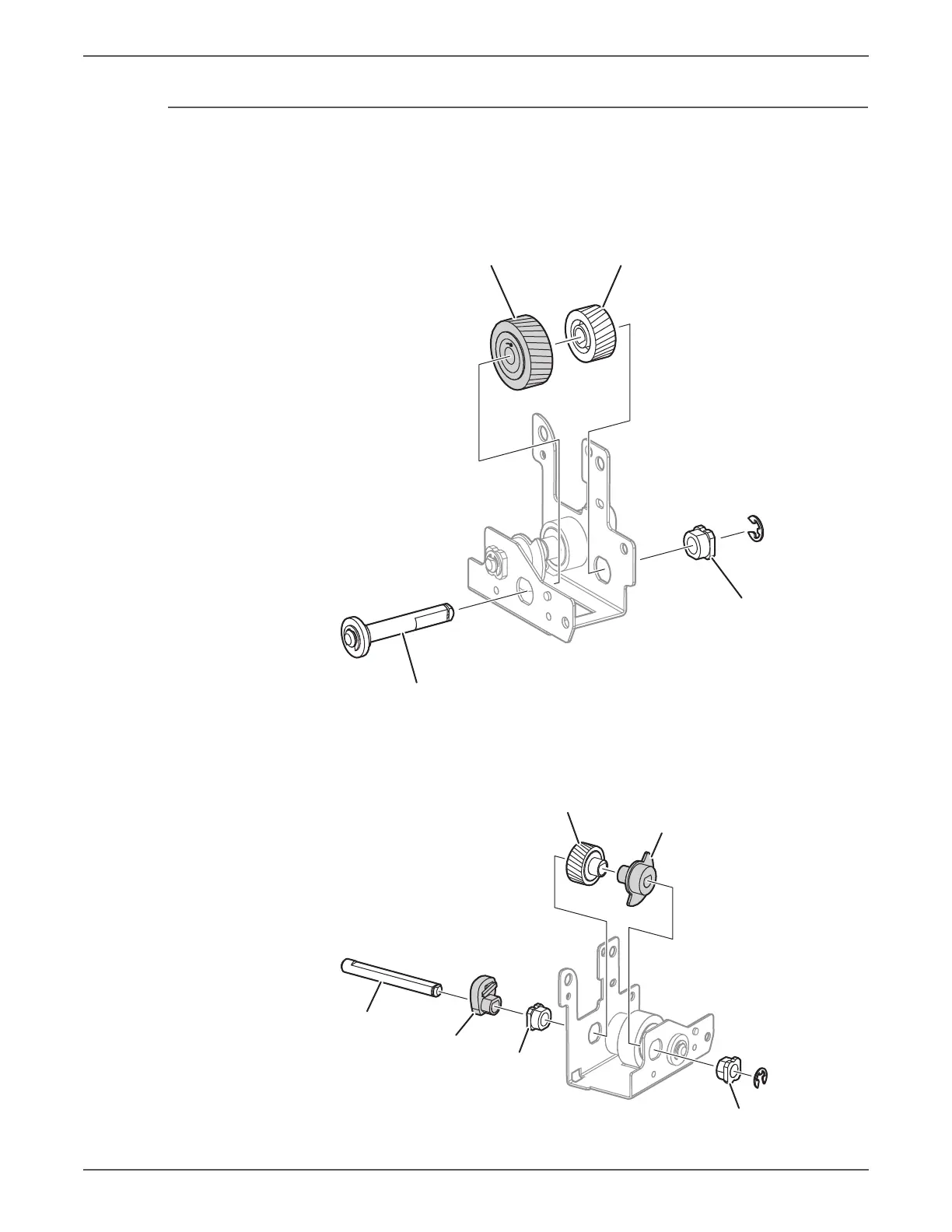

s7500-205
Gear (27T) Gear (20T)
Shaft
Sleeve Bearing
s7500-206
Gear (19T)
Actuator
Nudger Cam
Shaft
Sleeve Bearing #2
Sleeve Bearing #1
