8-16 Phaser 7500 Printer Service Manual

Service Parts Disassembly

REP 1.6 Productivity Kit (Hard Drive)

PL35.1.9

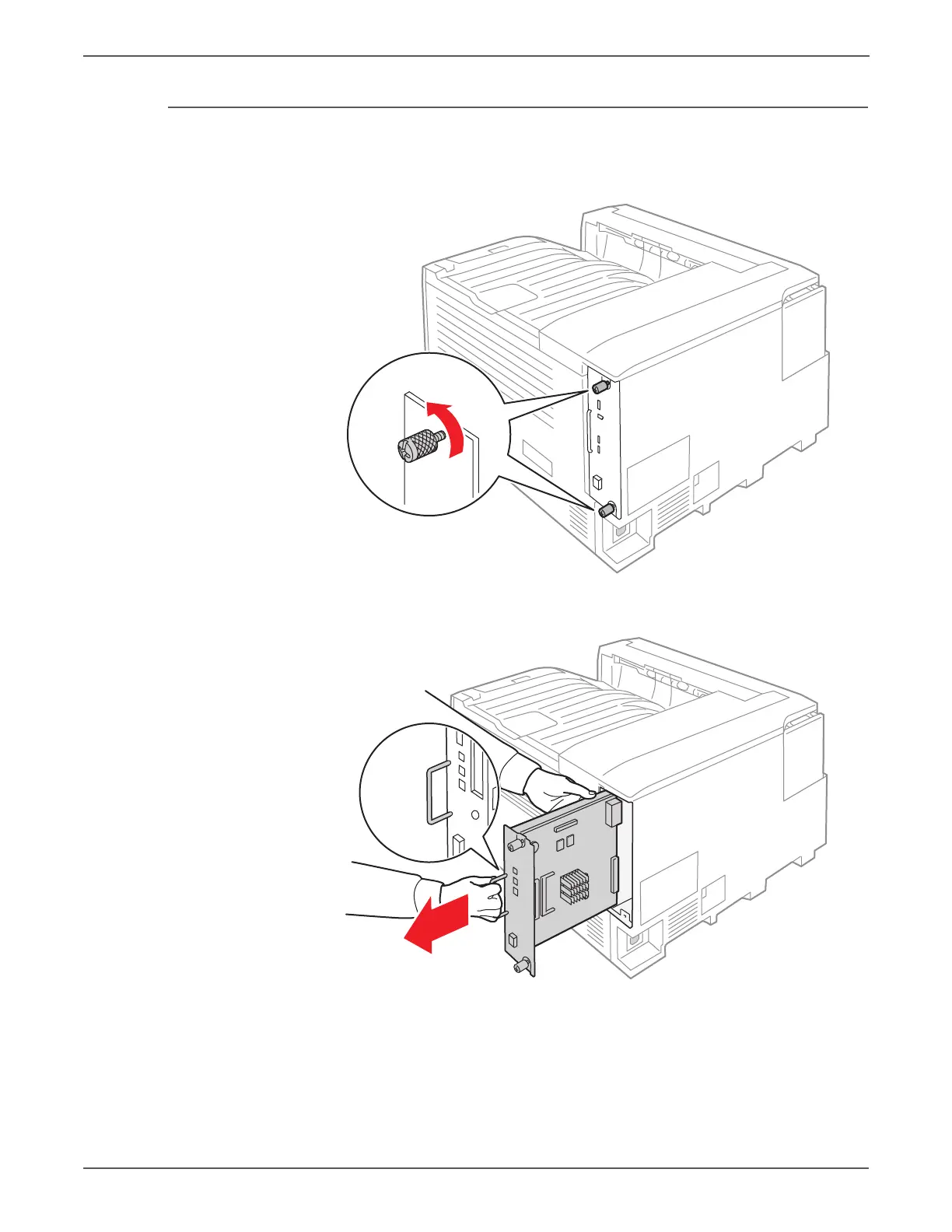

1. Loosen 2 screws that secure the Image Process (I/P) Board.

2. Pull the I/P Board out from the printer.

s7500-456

s7500-457
