Phaser 7500 Printer Service Manual 8-133
Service Parts Disassembly
REP 13.4 Tray 1 No Paper Sensor
PL13.4.17
1. Remove the Tray 1 Top Cover (REP 13.5, page 8-134).
2. Insert your finger tip into the square hole to remove the Chute (see REP 13.6,
page 8-135, step #2).
3. Disconnect the wiring harness connector that is connected to the Tray 1 No
Paper Sensor.

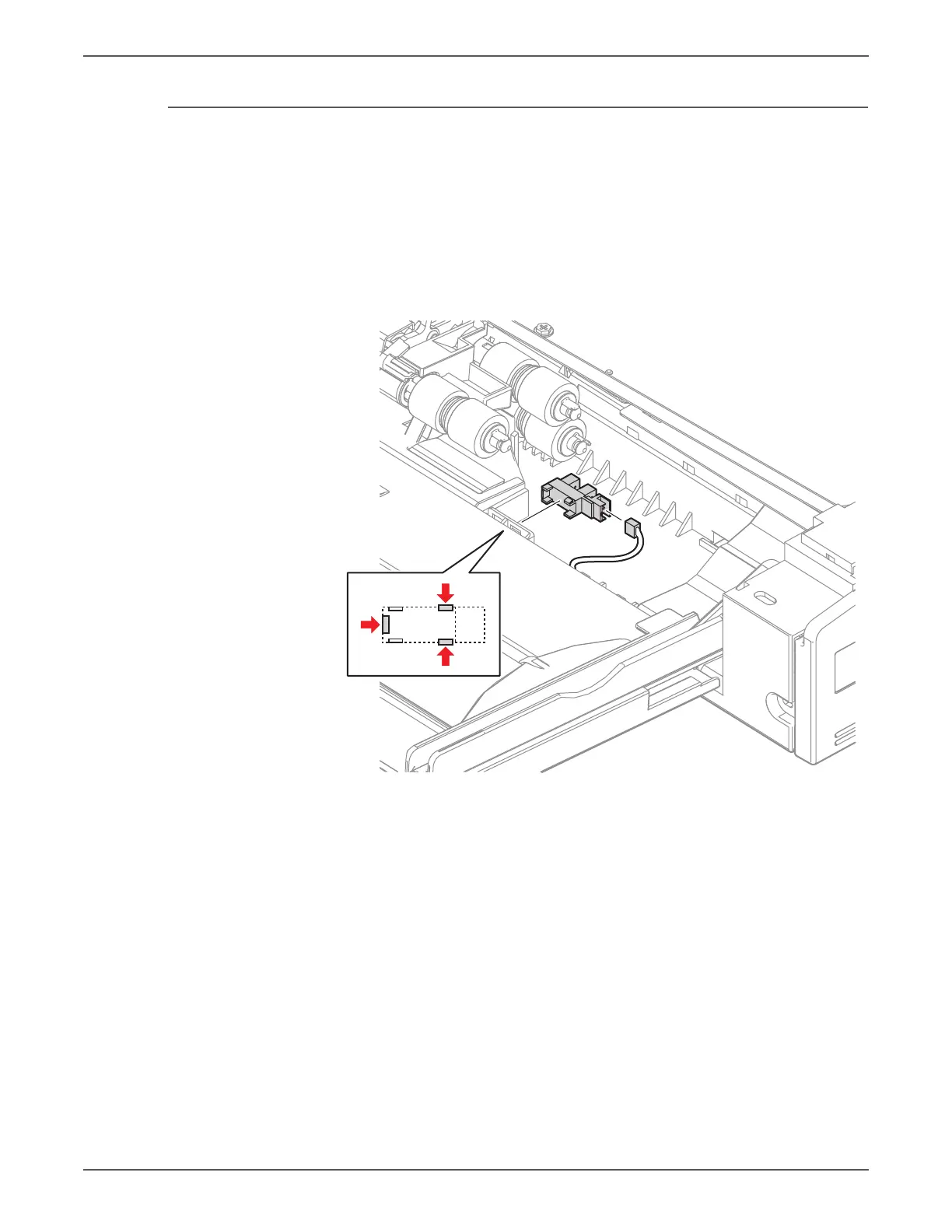

4. Release the 3 hooks that secure the Tray 1 No Paper Sensor and remove the
Tray 1 No Paper Sensor.
To Next Page
