Xerox PHASER 7500 Service Manual

8-36 Phaser 7500 Printer Service Manual
Service Parts Disassembly

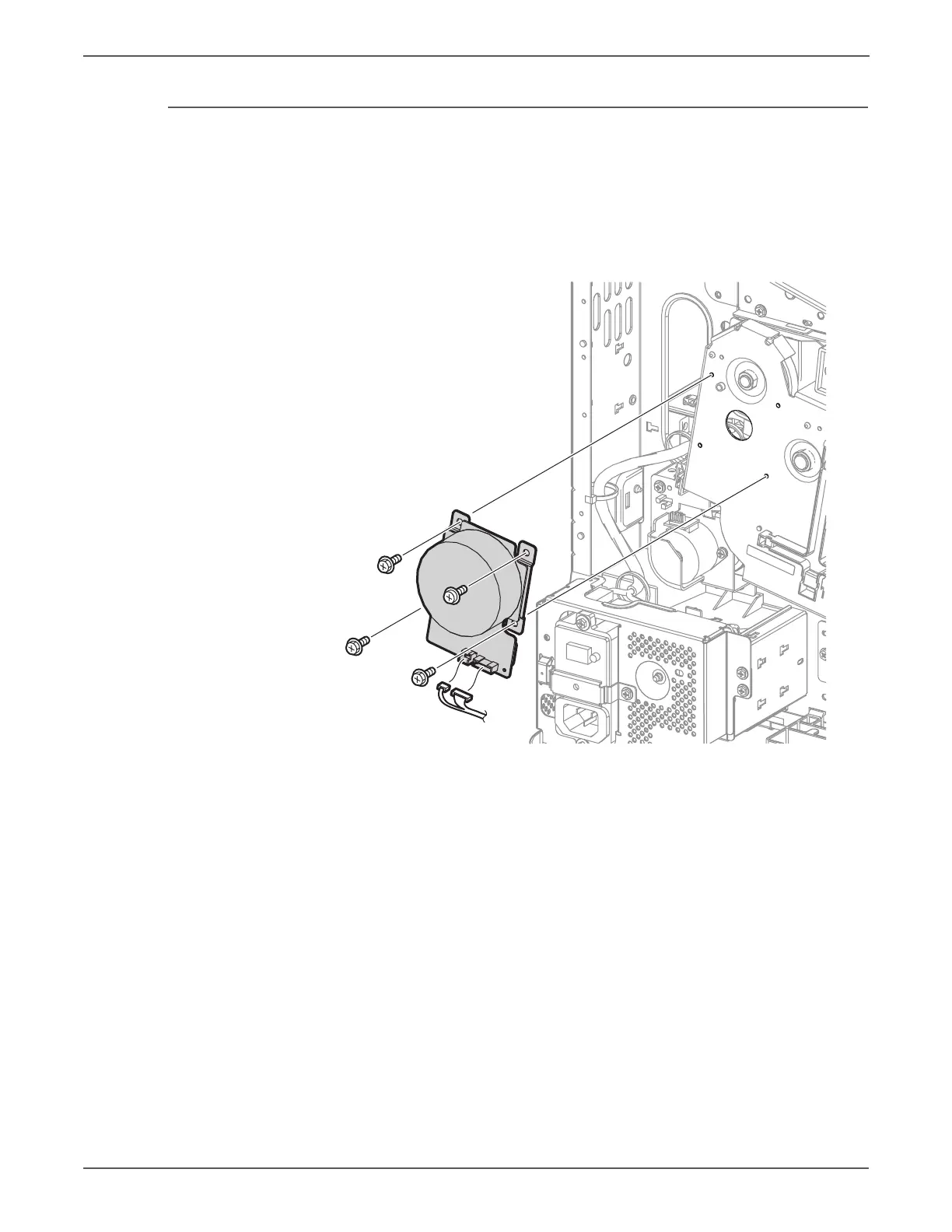

REP 3.10 IBT Drive Motor Assembly
PL3.3.4
1. Remove the PWB Chassis Unit (REP 18.10, page 8-197).
2. Disconnect the 2 wiring harness connectors that are connected to the IBT
Drive Motor Assembly.
3. Remove 4 screws (silver, 6mm) that secure the IBT Drive Motor Assembly and
remove the IBT Drive Motor Assembly.
s7500-462
