Phaser 7500 Printer Service Manual 8-119
Service Parts Disassembly

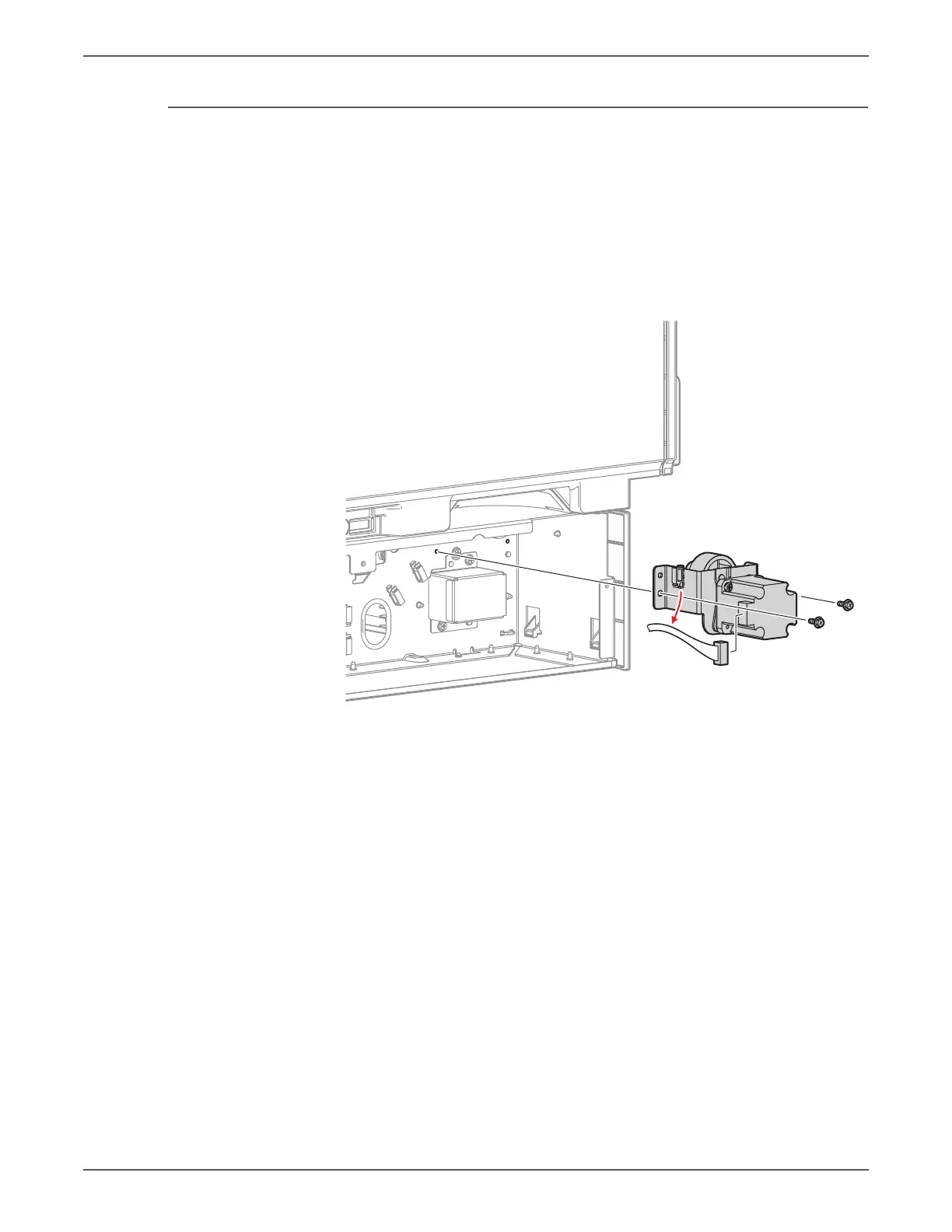

REP 11.9 STM T/A Motor Assembly
PL11.5.2
1. Remove the Rear Cover-STM (REP 11.17, page 8-127).
2. Disconnect the wiring harness connector P/J224 that is connected to the STM
T/A Motor Assembly and release the harness from the clamp.
3. Remove 2 screws (silver, 8mm) that secure the STM T/A Motor Assembly to
the Tray Module (1T).
4. Release the shaft of the STM T/A Motor Assembly from the hole of the Tray
Module (1T) and remove the STM T/A Motor Assembly.
To Next Page
