Phaser 7500 Printer Service Manual 8-97
Service Parts Disassembly

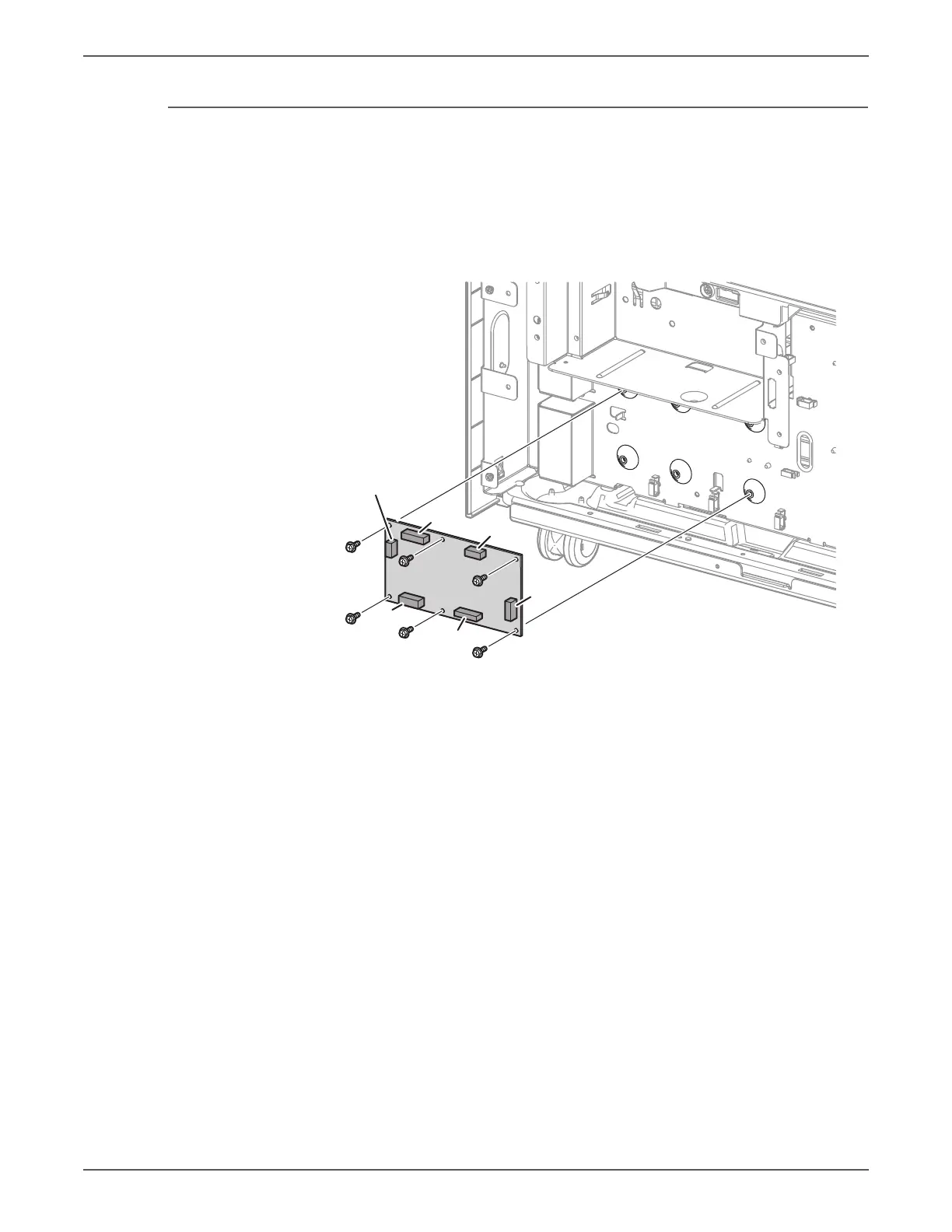

REP 10.9 Tray Module PWB
PL10.9.1
1. Remove the Rear Cover Assembly (REP 10.19, page 8-107).
2. Disconnect the 4 wiring harness connectors (P/J541, P/J548, P/J550, and P/
J551) that are connected to the Tray Module PWB.
3. Remove 6 screws (silver, 8mm) that secure the Tray Module PWB to the Tray
Module (3T) and remove the Tray Module PWB.
s7500-161
P/J541
P/J542
P/J550
P/J551
P/J548
P/J549
