Xerox PHASER 7500 Service Manual

Phaser 7500 Printer Service Manual 8-73
Service Parts Disassembly
REP 8.4 Bottle Guide Assembly
PL8.2.1
1. Remove the Waste Cartridge (REP 1.3, page 8-12).
2. Remove the Right Cover (REP 19.8, page 8-219).
3. Remove 4 screws (silver, 6mm) that secure the T-shaped Frame to the printer
and remove the T-shaped Frame.
4. Disconnect the wiring harness connectors that are connected to the 2 sensors
and remove the cable.
5. Release the wiring harness Clamp from the Bottle Guide Assembly.
6. Remove 4 screws (silver, 6mm) that secure the Bottle Guide Assembly to the
printer and remove the Bottle Guide Assembly.

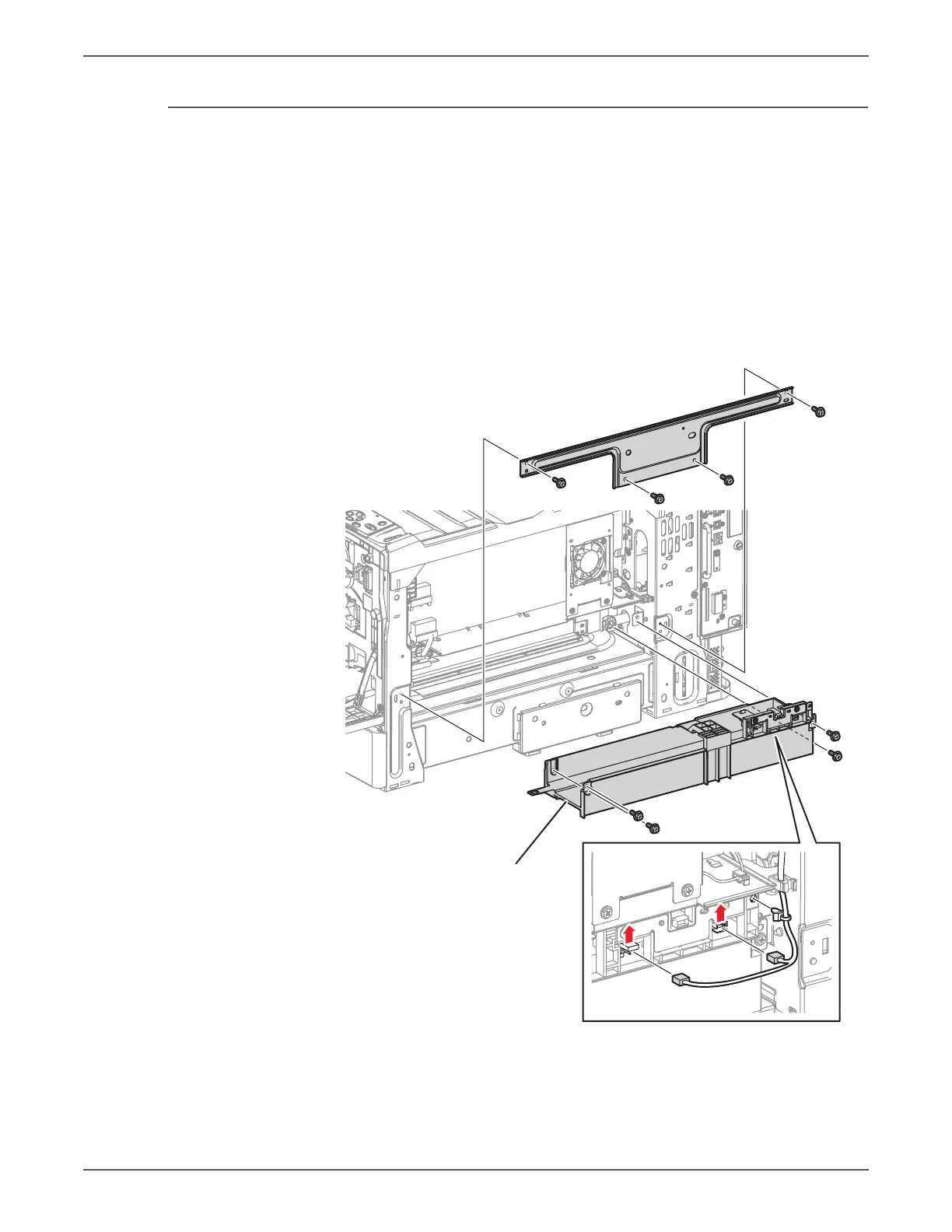

s7500-126
Bottle Guide Assy
