Xerox PHASER 7500 Service Manual

Phaser 7500 Printer Service Manual 8-181
Service Parts Disassembly
REP 17.3 Exit Motor
PL17.1.15
1. Remove the Exit Cover (REP 19.5, page 8-216).
2. Remove 2 screws (silver, Tapped, 10mm) that secure the Motor Cover and
remove the Motor Cover.
3. Remove 2 screws (silver, 8mm) that secure the Exit Motor and release the belt
to remove the Exit Motor.
4. Disconnect the wiring harness connector that is connected to the Exit Motor.

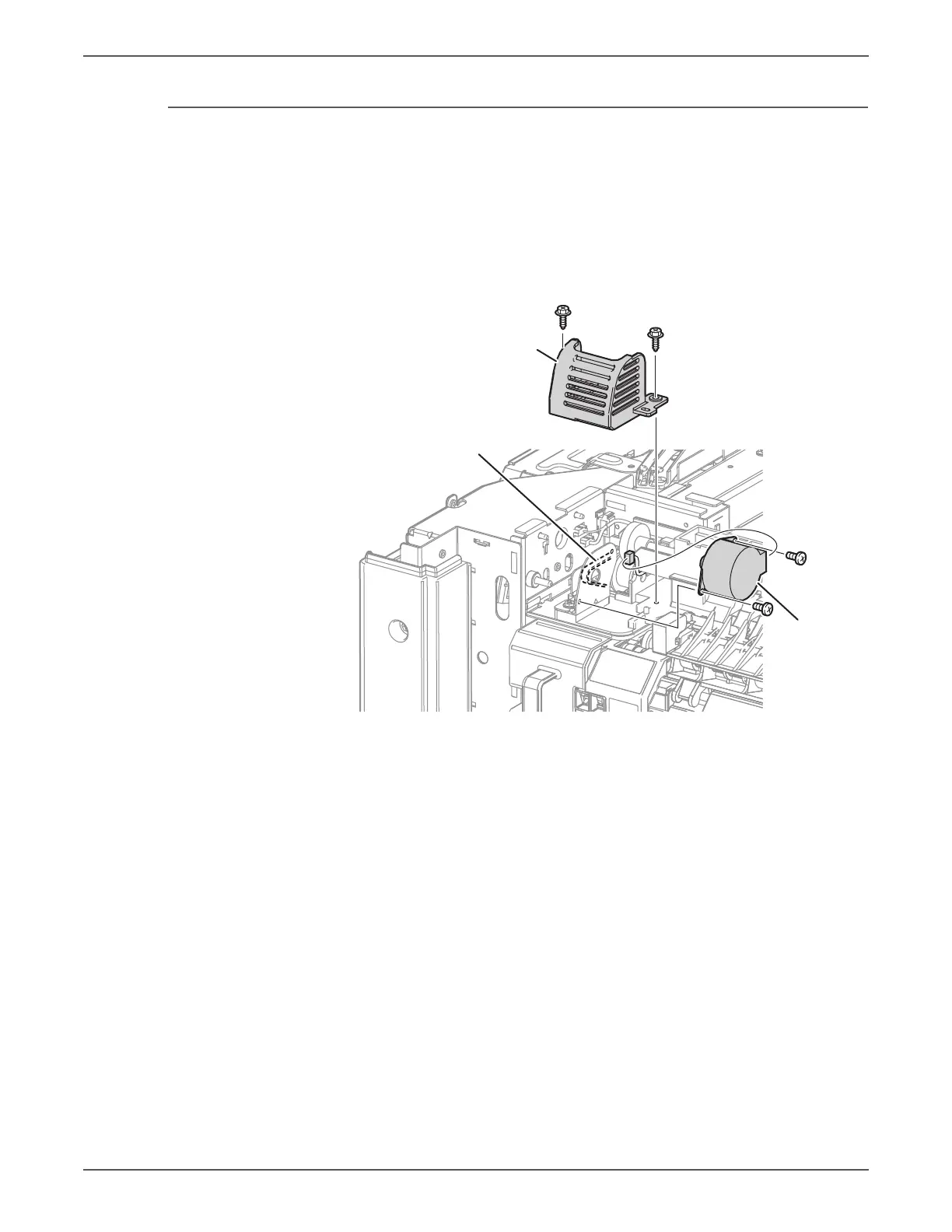

s7500-243
Exit Motor
Motor Cover
Belt
