Xerox PHASER 7500 Service Manual

Phaser 7500 Printer Service Manual 8-103
Service Parts Disassembly
REP 10.15 T/A Roll 4/5/ T/A Roll 3
PL10.11.13/ PL10.11.16
1. Remove 2 screws (silver, 8mm) that secure the Chute to the Tray Module (3T)
and remove the Chute.
2. Remove the KL Clip that secures the T/A Roll to the Tray Module (3T).
Note
Be careful not to drop the Sleeve Bearing when performing the following step.
3. Slide the T/A Roll to the rear to remove the front Sleeve Bearing from the hole,
and then tilt the front side of the T/A Roll towards you to remove the T/A Roll.

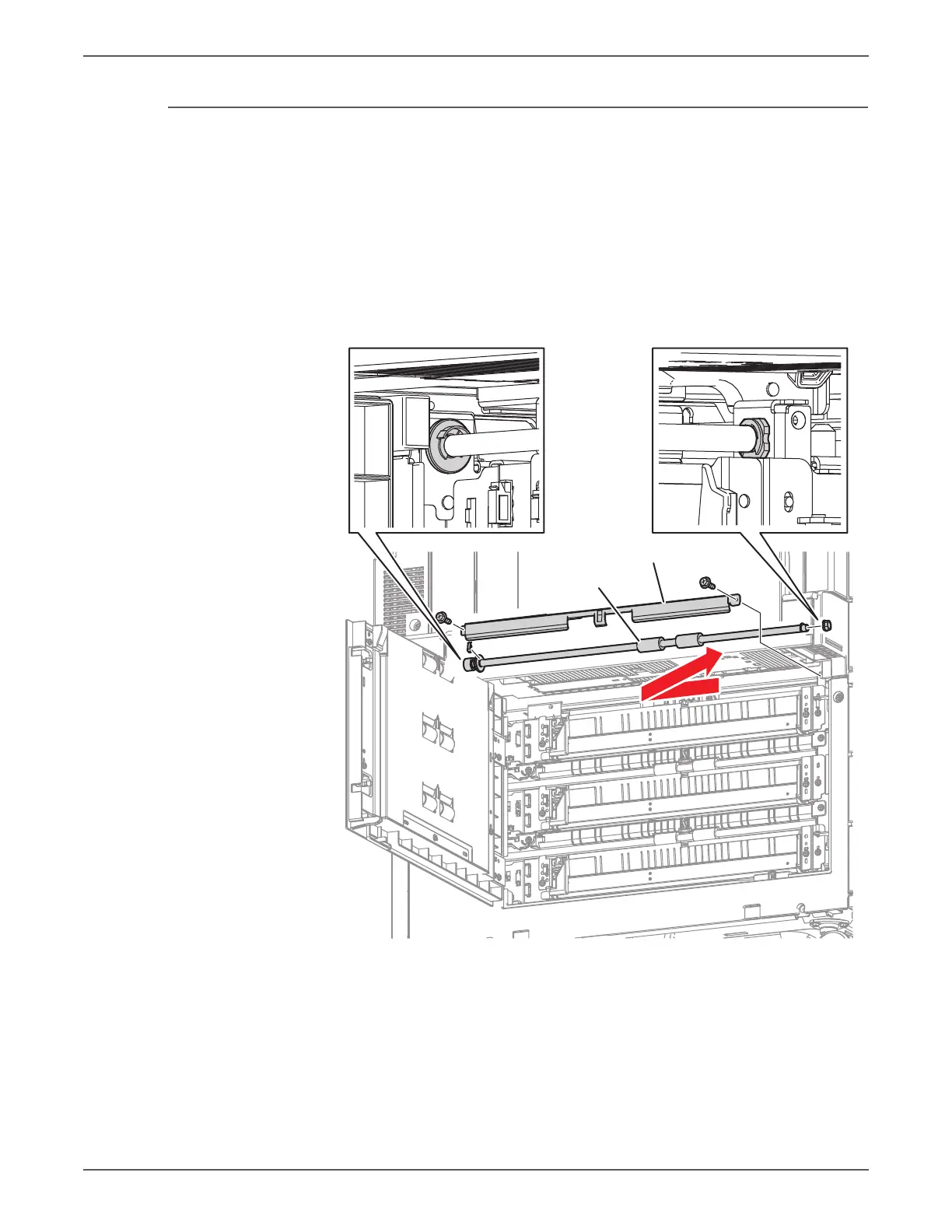

s7500-167
Chute
Take Away Roller 3
