Xerox PHASER 7500 Service Manual

Phaser 7500 Printer Service Manual 8-49
Service Parts Disassembly
REP 5.4 Deve Plate Assembly
PL5.2.1
1. Remove the Front Cover Assembly and the Inner Cover Assembly (REP 19.1,
page 8-207).

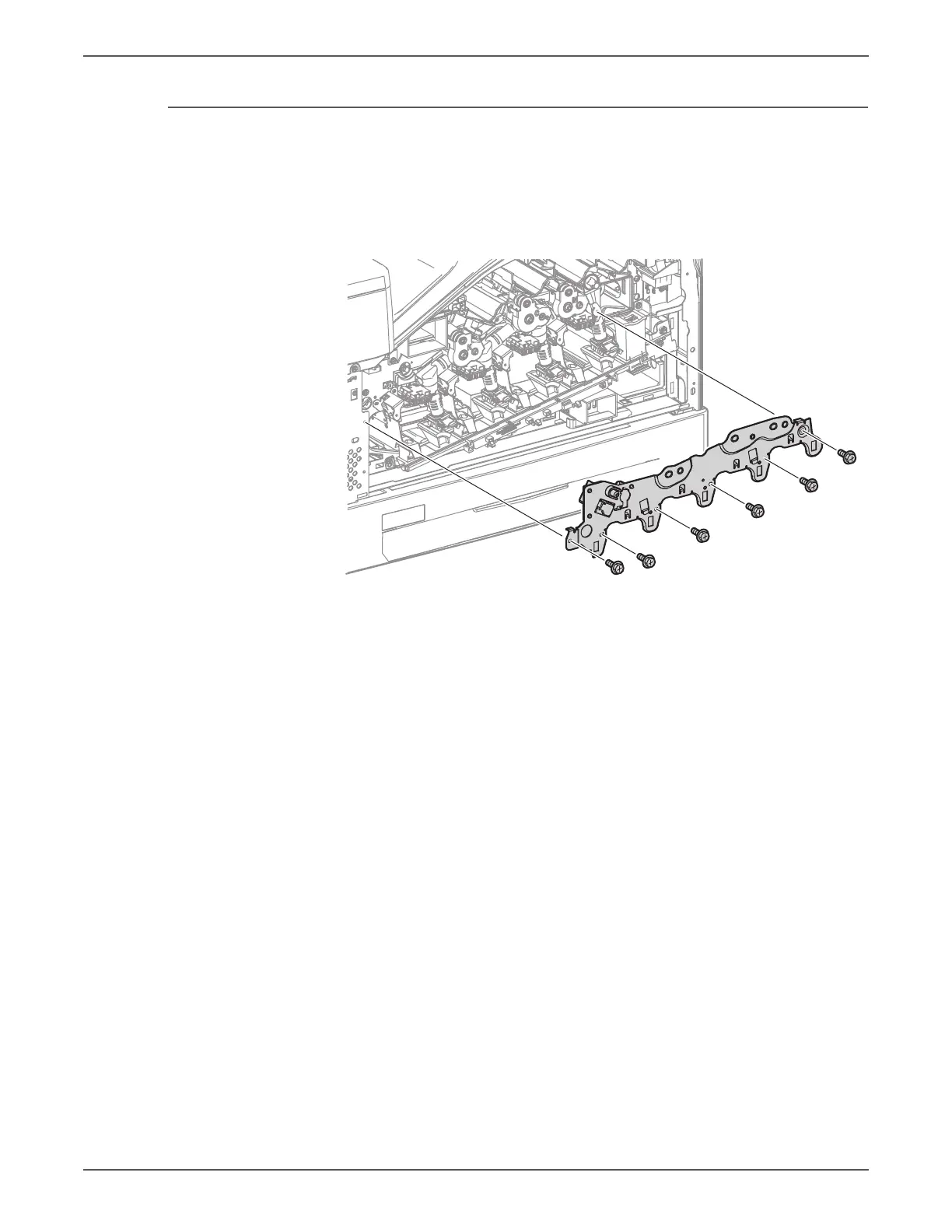

2. Remove 6 screws (silver, 6mm) that secure the Deve Plate Assembly and
remove the Deve Plate Assembly.
s7500-103
