Xerox PHASER 7500 Service Manual

8-70 Phaser 7500 Printer Service Manual
Service Parts Disassembly
REP 8.2 Erase Lamp Unit (Y/M/C)
PL8.1.5
1. Remove the Drum/Deve Drive Assembly (REP 3.8, page 8-33).
2. Remove the IBT Belt Unit (REP 6.2, page 8-58).
3. Remove the Deve Plate Assembly (REP 5.4, page 8-49).
4. Remove the Dispenser Pipe (Y/M/C) (REP 5.7, page 8-54).
5. Remove the Developer Housing Assembly (Y/M/C) (REP 5.5, page 8-50).

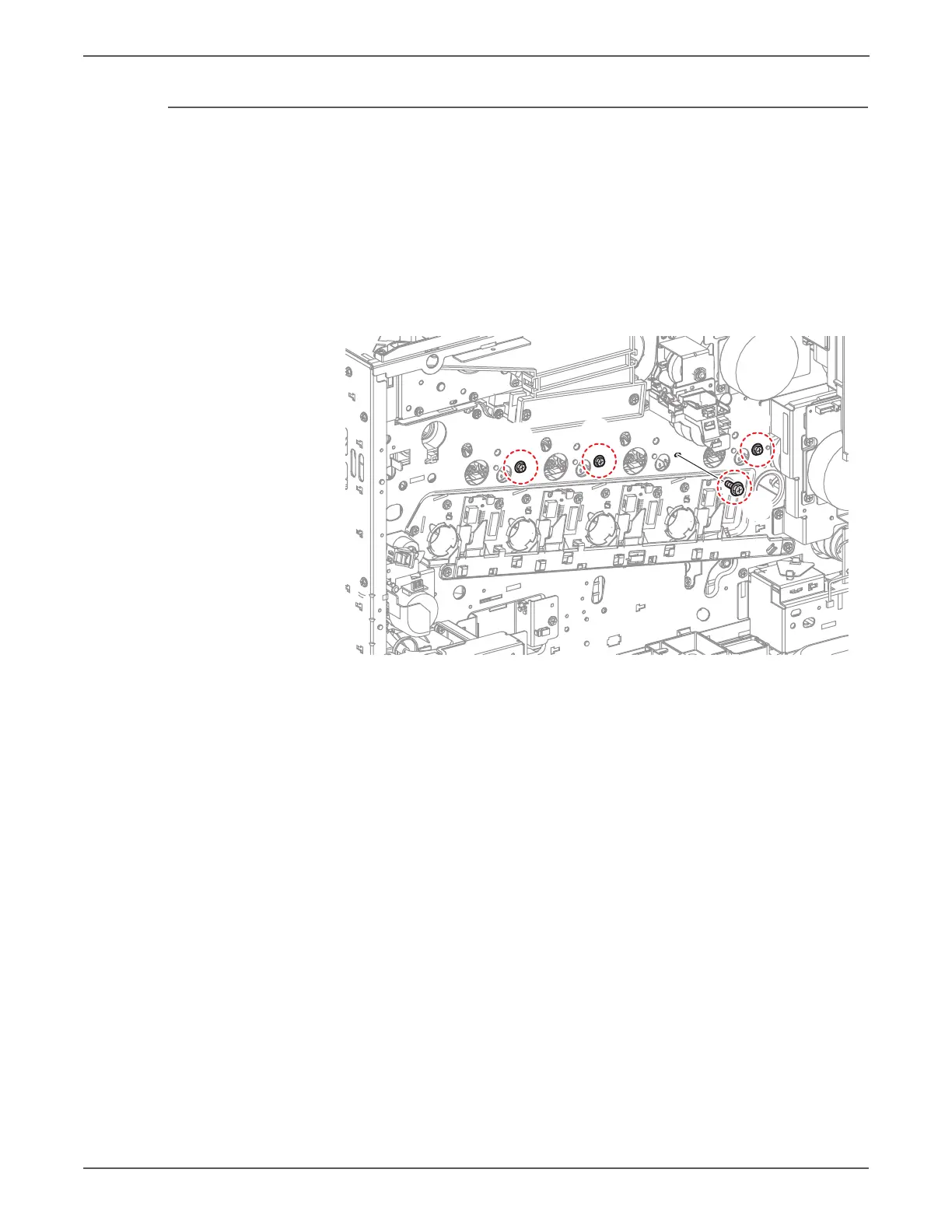

6. From the rear of the printer, remove 1 screw (silver, 8mm) that secures the
Erase Lamp Unit (Y/M/C).
s7500-122
