8-206 Phaser 7500 Printer Service Manual
Service Parts Disassembly
REP 18.15 Drive Fan
PL18.3.17
1. Remove the Top Rear Cover and the Rear Cover (REP 19.6, page 8-217).
2. Remove the Right Cover (REP 19.8, page 8-219).
3. Remove the PWB Chassis Unit (REP 18.10, page 8-197).
4. Disconnect the wiring harness connector that connects the Drive Fan to the
relay connector.

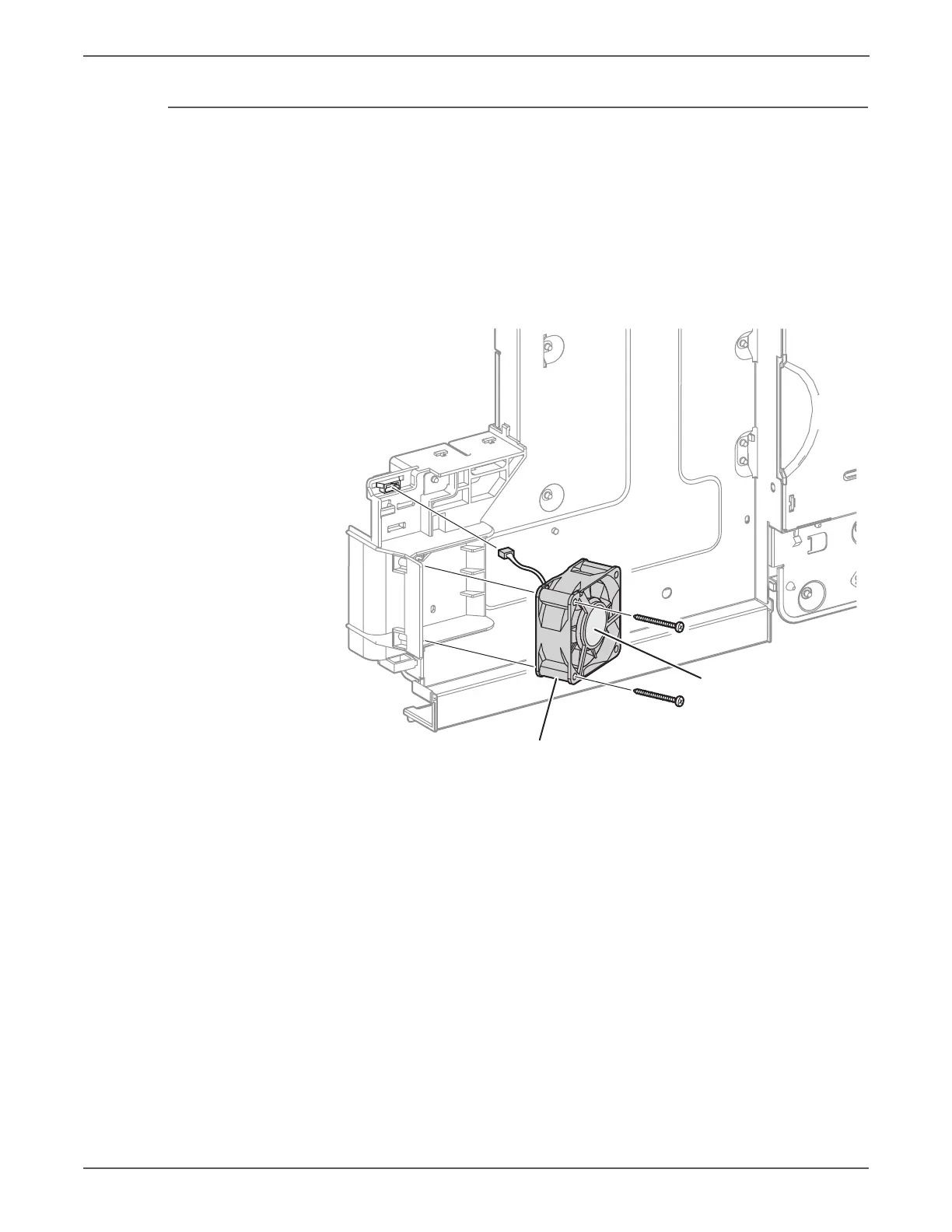

5. Remove 2 screws (silver, 32mm) that secure the Drive Fan and remove the
Drive Fan.
To Next Page
