8-194 Phaser 7500 Printer Service Manual
Service Parts Disassembly
REP 18.7 Main LVPS
PL18.1.11
To prevent electric shock, turn Off the power and unplug the power plug from
the electrical outlet.
PWB’s can be damaged by an electrostatic discharge. Observe all ESD
procedures to avoid component damage.

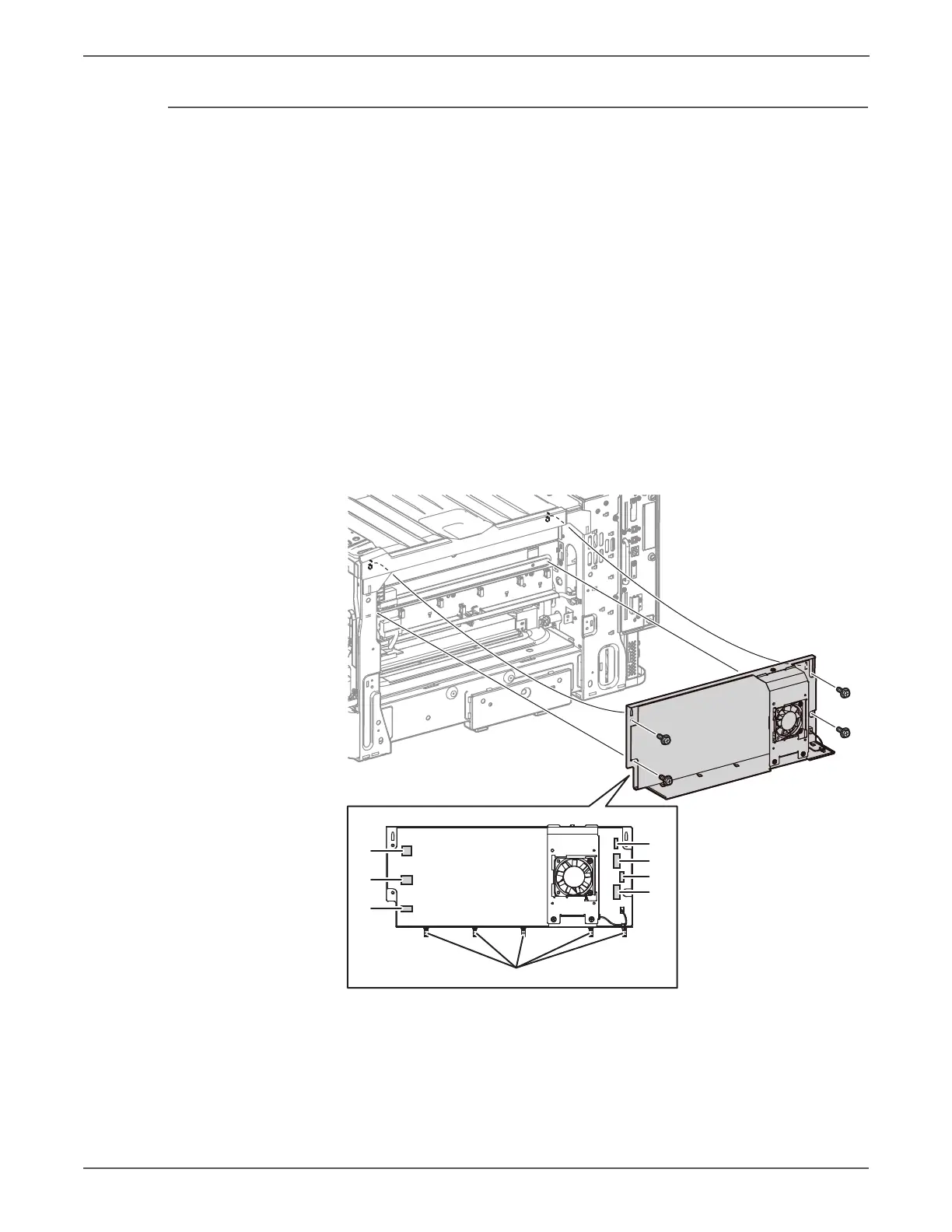

1. Remove the Waste Cartridge (REP 1.3, page 8-12).
2. Remove the Right Cover (REP 19.8, page 8-219).
3. Remove the Bottle Guide Assembly (REP 8.4, page 8-73).
4. Disconnect all wiring harness connectors that are connected to the Main LVPS.
5. Remove the wiring harness from the 5 clamps under the Main LVPS.
6. Remove 4 screws (silver, 6mm) that secure the Main LVPS to the printer and
remove the Main LVPS.
Be sure to align the 2 hooks on the printer frame with the hole on the LVPS
Frame when installing the Main LVPS.
s7500-250
530
31
4
1
510
503
501
Clampx5
To Next Page
