8-196 Phaser 7500 Printer Service Manual
Service Parts Disassembly
REP 18.9 GFI
PL18.1.15

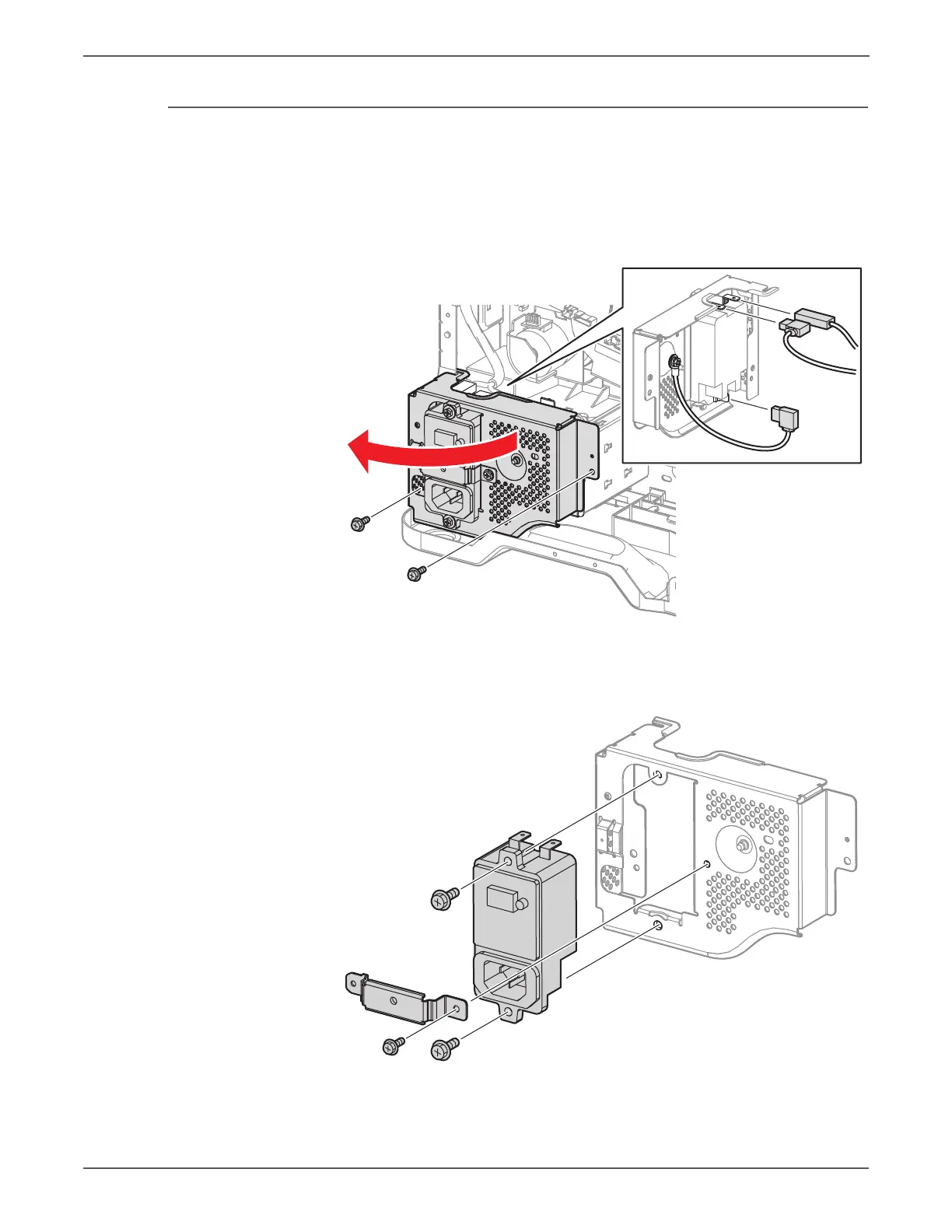

1. Remove the PWB Chassis Unit (REP 18.10, page 8-197).
2. Remove 2 screws (silver, 6mm) that secure the GFI Chassis and open the GFI
Chassis.
3. Disconnect the 3 wiring harness connectors from the GFI.
4. Remove 1 screw (silver, 6mm) that secures the Bracket and remove the
Bracket.
5. Remove 2 screws (silver, M4 x 8mm) that secure the GFI and remove the GFI.
To Next Page
