Phaser 7500 Printer Service Manual 8-39
Service Parts Disassembly
REP 4.2 Rear Duct/ Fuser Fan Duct/ Rear Fuser Duct
PL4.1.4/ PL4.1.5/ PL4.1.8
1. Remove the Top Rear Cover and the Rear Cover (REP 19.6, page 8-217).
2. Remove the Right Cover (REP 19.8, page 8-219).
3. Remove the PWB Chassis Unit (REP 18.10, page 8-197).
4. Release the 2 hooks that secure the Duct Rear and remove the Duct Rear.
• Release the top latch first in order to release the bottom latch.
5. Remove 1 screw (silver, 6mm) that secures the Fuser Fan Duct and remove the
Fuser Fan Duct.
6. Remove 1 screw (silver, 6mm) that secures the Rear Fuser Duct, release the
hook that is attached to the Rear Upper Frame and remove the Rear Fuser
Duct.

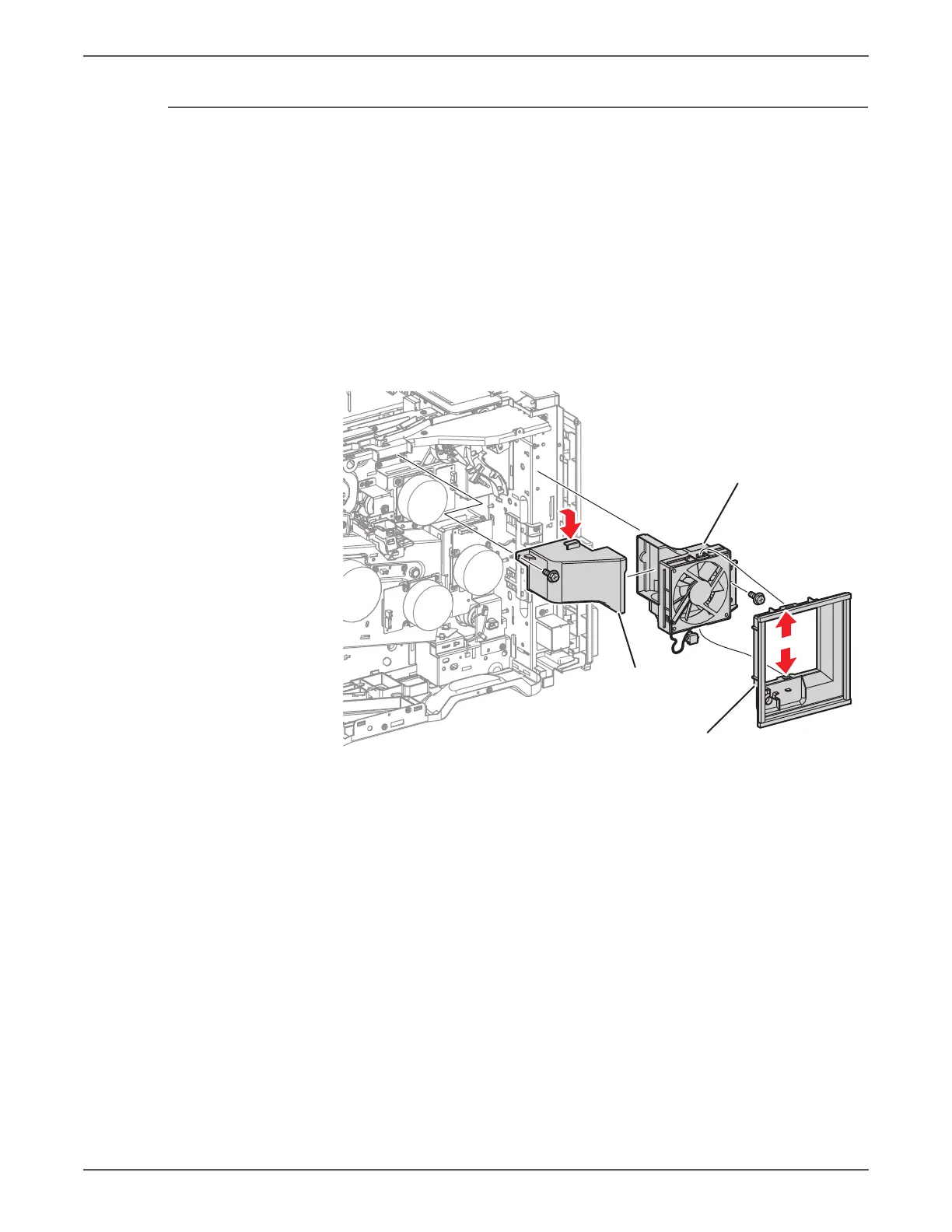

s7500-093
Rear Fuser Duct
Fuser Fan Duct
Rear Duct
