Phaser 7500 Printer Service Manual 8-193
Service Parts Disassembly
REP 18.6 IBT Front Cover Switch
PL18.1.10
1. Remove the Front Cover Assembly and the Inner Cover Assembly (REP 19.1,
page 8-207).
2. Disconnect the wiring harness connector that is connected to the IBT Front
Cover Switch.

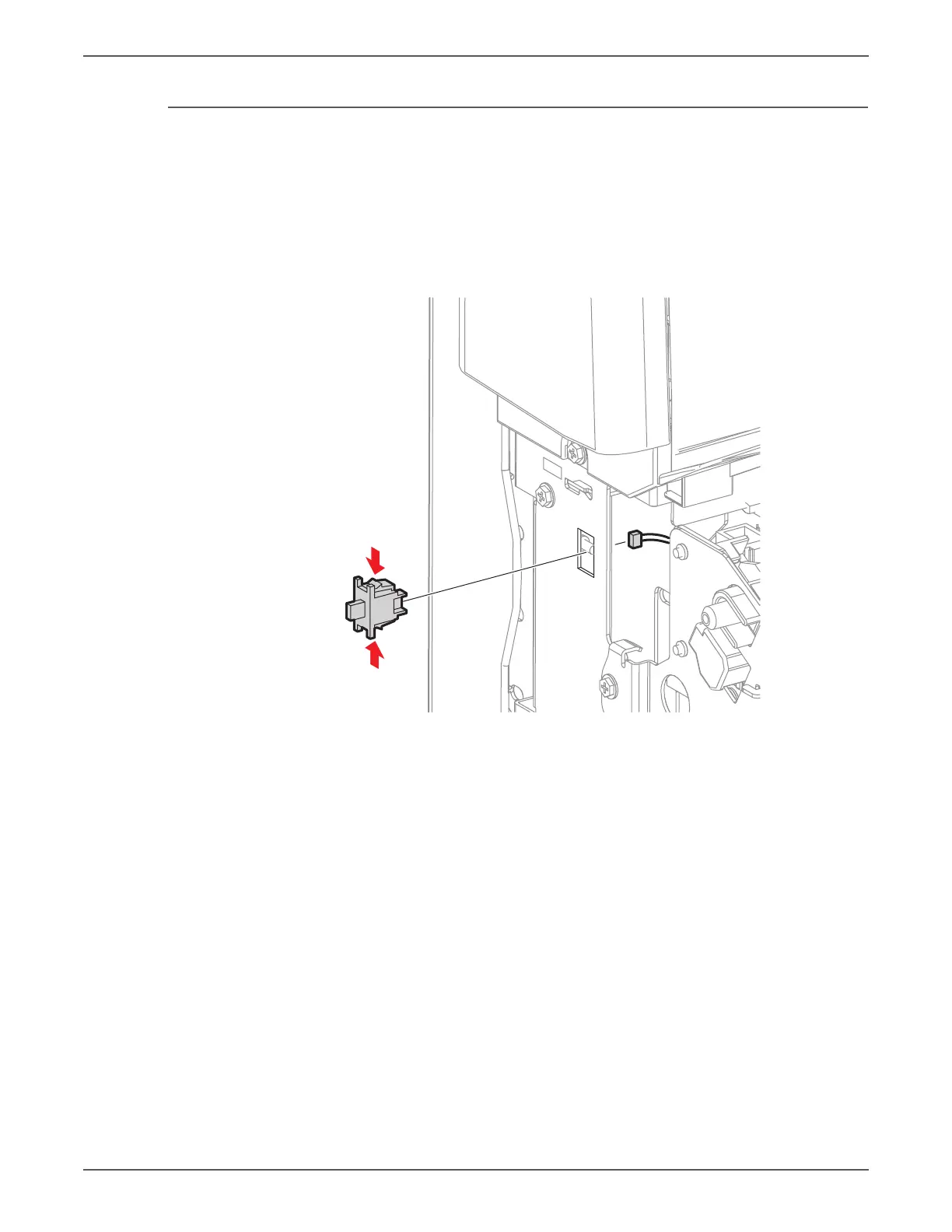

3. Release the hooks that secure the IBT Front Cover Switch and remove the IBT
Front Cover Switch.
