8-146 Phaser 7500 Printer Service Manual
Service Parts Disassembly
L/H Cover
REP 14.1 Left Hand Cover Interlock Switch
PL14.1.3
1. Remove the Top Rear Cover and the Rear Cover (REP 19.6, page 8-217).
2. Remove the Duct Rear/ Fuser Fan (REP 4.2, page 8-39).

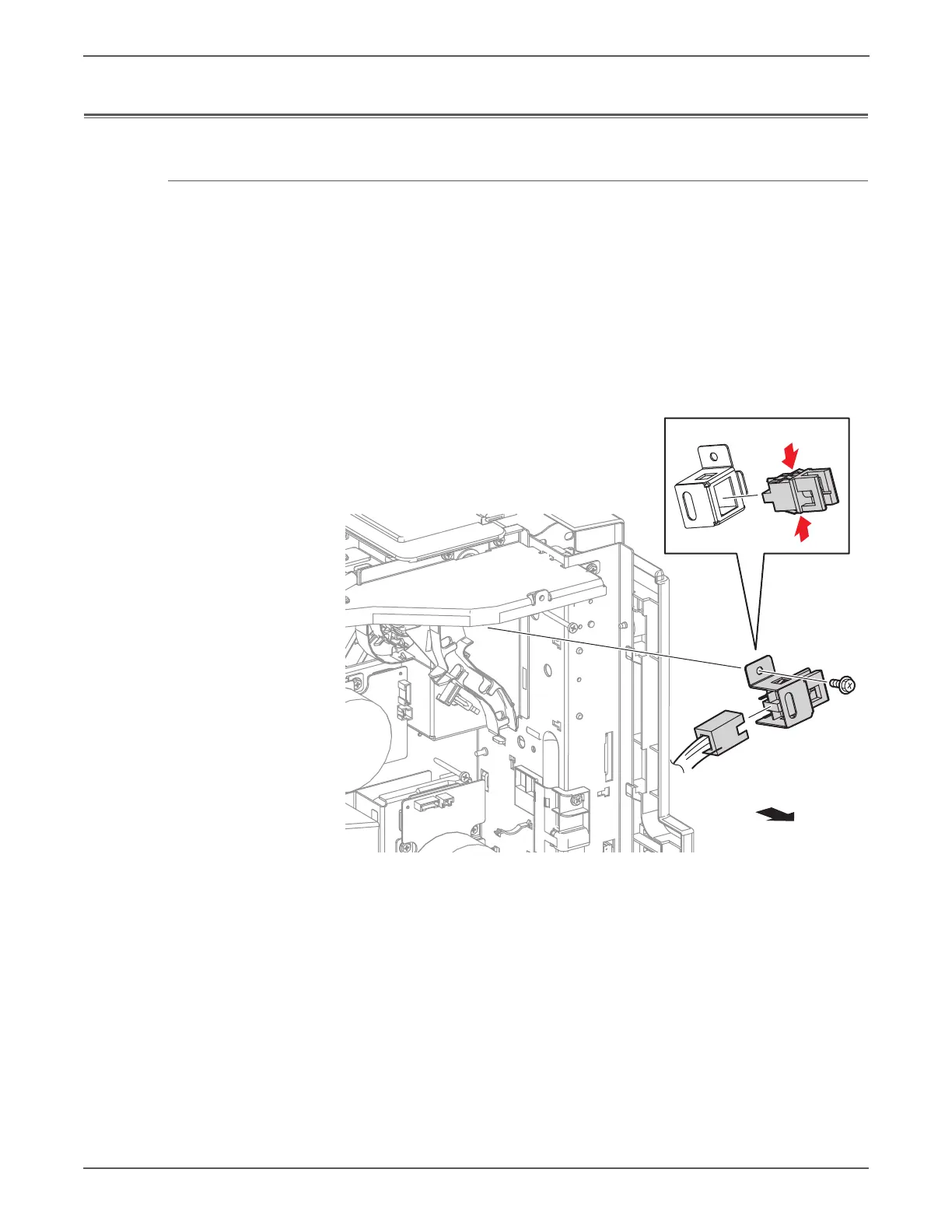

3. Remove 1 screw (silver, 6mm) that secures the Bracket and remove the
Bracket.
4. Disconnect the wiring harness connector that is connected to the Left hand
Cover Interlock Switch.
5. Release the hooks that secure the L/H Cover Interlock Switch and remove the
Left Hand Cover Interlock Switch.
To Next Page
