Xerox PHASER 7500 Service Manual

10-56 Phaser 7500 Printer Service Manual

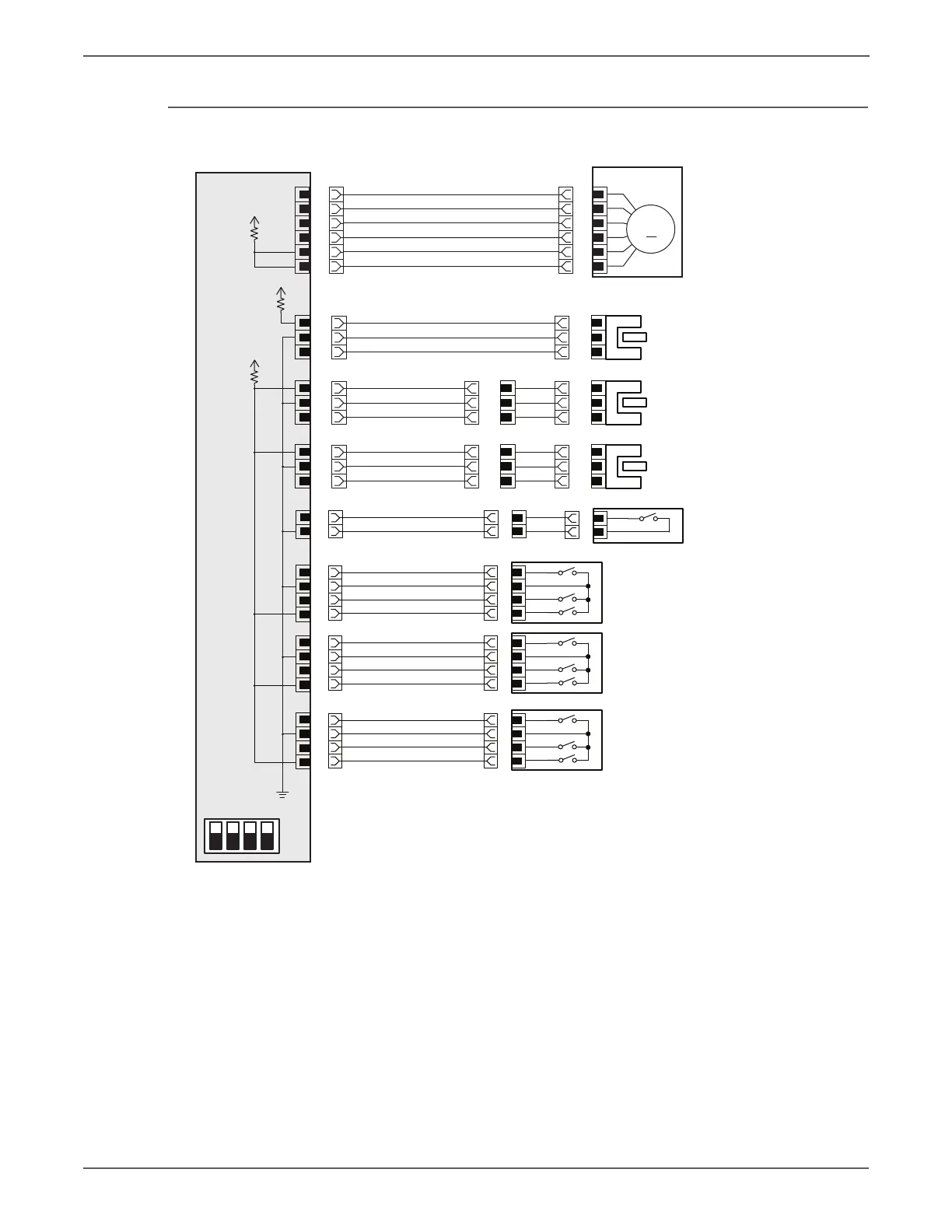

Plug/Jack and Wiring Diagrams
3 Tray Module (3TM) - Takeaway Motor, Sensors, Cover Switch
3TM Module Board
Tray 3 Feed Out
Sensor
A1
A2
A3
B9
B10
B11
4
3
2
1
B12
P/J101
P/J549
TRAY_SIZE3_SW
SELECT_SWITCH_ON(L)+5VDC
PAPER_SENSED(L)+5VDC
+5VDC
GND
GND
Tray 3 Paper Size Sensor
B1
B2
B3
4
3
2
1
B4
P/J103
P/J102
TRAY_SIZE5_SW
SELECT_SWITCH_ON(L)+5VDC
+5VDC
GND
Tray 5 Paper Size Sensor
B5
B6
B7
4
3
2
1
B8
TRAY_SIZE4_SW
SELECT_SWITCH_ON(L)+5VDC
+5VDC
GND
Tray 4 Paper Size Sensor
+24VDC
+5VDC
+1.2VDC
ON_+24V_CLOCK
ON_+24V_CLOCK
ON_+24V_CLOCK
ON_+24V_CLOCK
+24VDC
+24VDC
+1.2VDC
Tray 3 Nudger Level
Sensor
9
8
7
A4
A5
A6
P/J669
LIFT_UP(H)+5VDC
GND
+5VDC
Tray 3 No Paper
Sensor
6
5
4
A7
A8
A9
3
2
1
P/J108
3
2
1
P/J107
3
2
1
P/J106
PAPER_SENSED(L)+5VDC
GND
+5VDC
P/J224P/J551
1
2
3
4
5
6
6
4
3
1
5
2
3TM Take Away
Motor
M
A11
A12
2
1
P/J668
SELECT_SWITCH_ON(L)+5VDC
GND
2
1
P/J104
3TM L/H
Cover Switch
s7500-514
1234
On
Off
DIP Switch
