8-32 Phaser 7500 Printer Service Manual
Service Parts Disassembly
REP 3.7 1st BTR Contact Retract Sensor
PL3.2.17
1. Remove the PWB Chassis Unit (REP 18.10, page 8-197).
2. Disconnect the 2 wiring harness connectors that are connected to the Retract
Drive Assembly and release the harness from the Harness Guide.
3. Remove 1 screw (silver, 6mm) that secures the Harness Holder and remove the
Harness Holder.
4. Release the hooks that secure the 1st BTR Contact Retract Sensor and remove
the 1st BTR Contact Retract Sensor from the Harness Holder.
It is not necessary to remove the PWB Chassis. It is required to remove the
Fan/ Duct to access the Sensor.

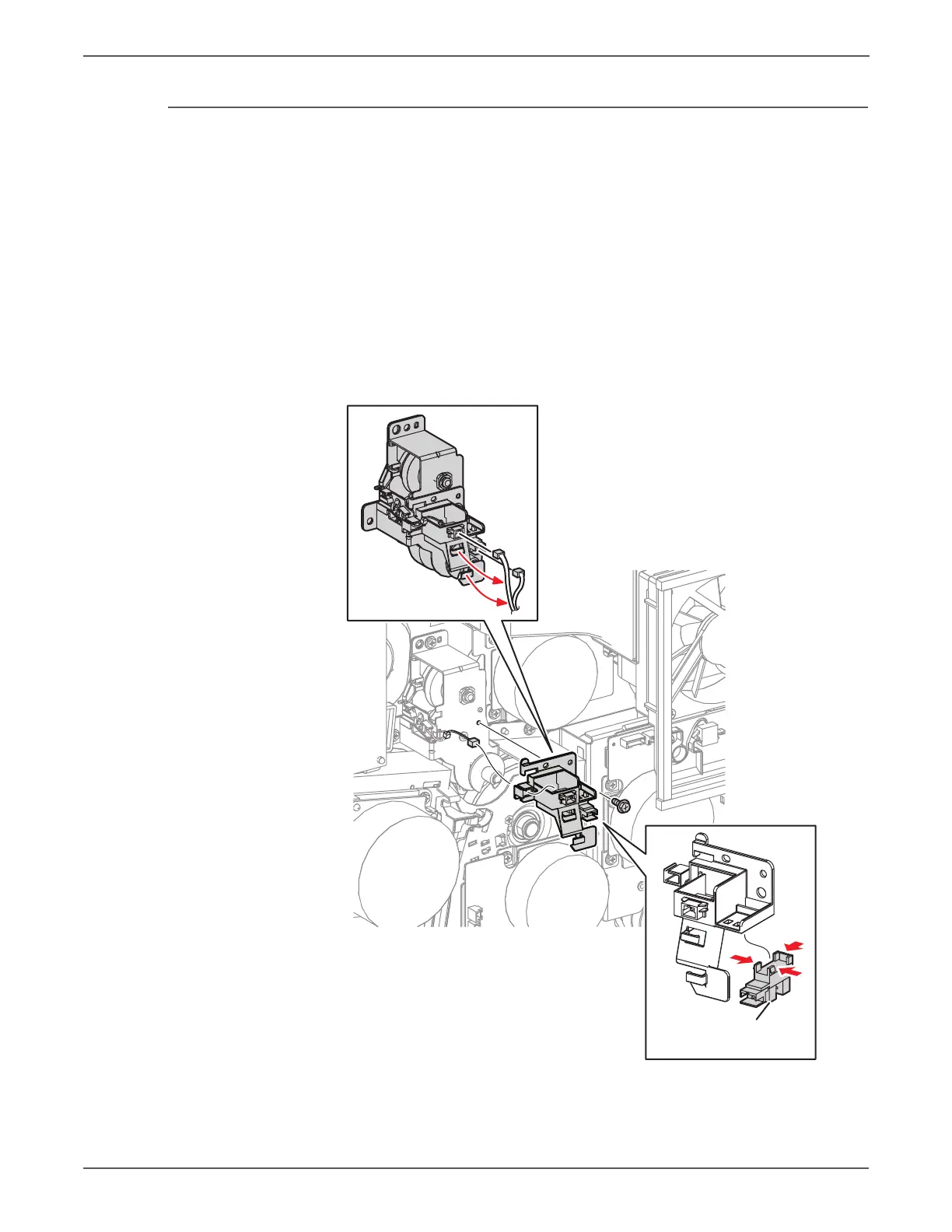

s7500-087
1st BTR Contact
Retract Sensor
To Next Page
