8-94 Phaser 7500 Printer Service Manual
Service Parts Disassembly
REP 10.5 Tray 3/4/5 Nudger Level Sensor/ Tray 3/4/5 No Paper Sensor
PL10.3.6
1. Remove the Tray Assembly from the 1500-Sheet Feeder.
2. Remove the Feeder Assembly (REP 10.1, page 8-90).
3. Release the 3 hooks that secure the Nudger Level Sensor to the Feeder
Assembly and remove the Nudger Level Sensor.
4. Disconnect the wiring harness connector P/J107 that is connected to the
Nudger Level Sensor.
5. Release the 3 hooks that secure the No Paper Sensor to the Feeder Assembly
and remove the No Paper Sensor.
6. Disconnect the wiring harness connector P/J106 that is connected to the No
Paper Sensor.

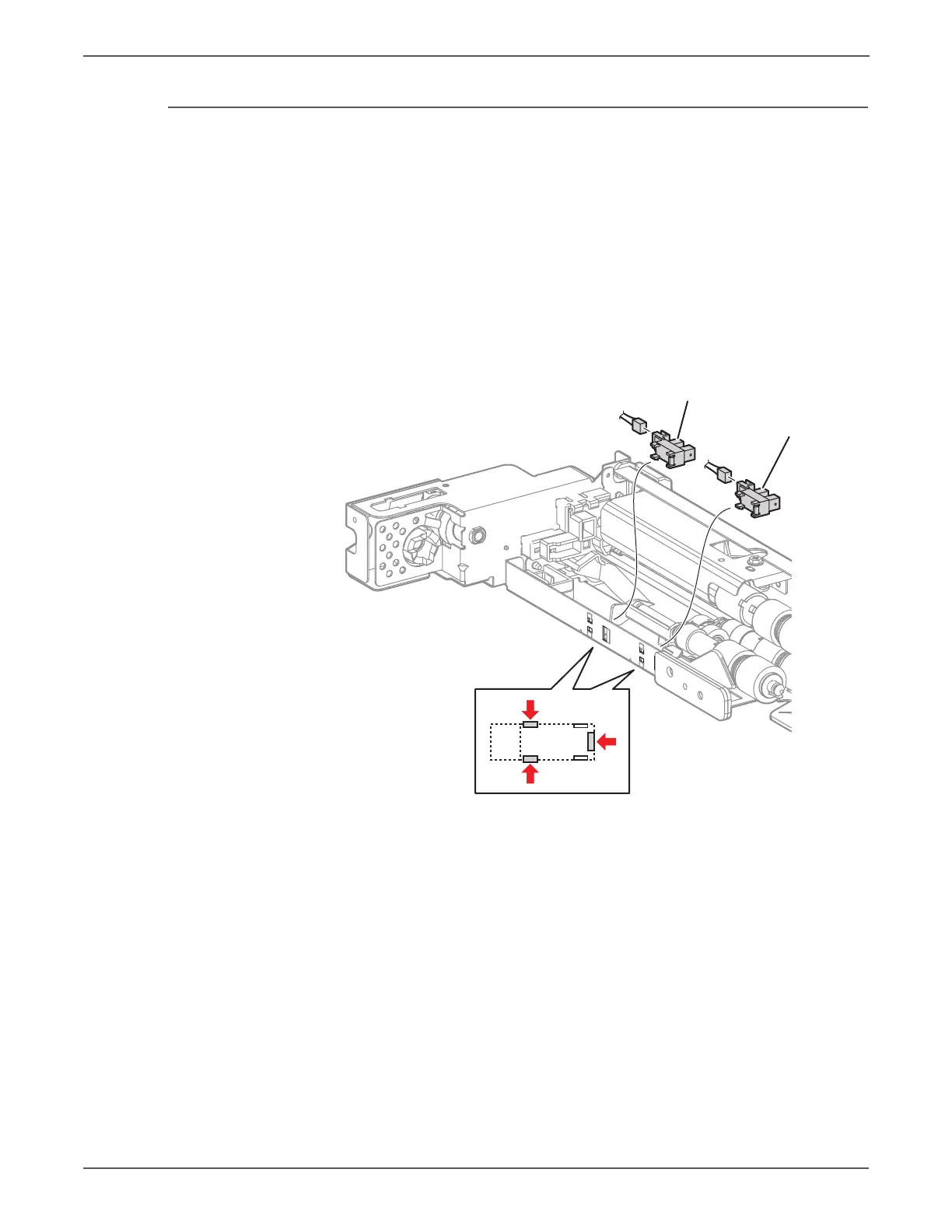

s7500-159
Nudger Level Sensor
No Paper Sensor
To Next Page
