REP 5.2 Toner Dispenser Motor (C/M/Y/K)
PL5.1.7
1. Remove the PWB Chassis Unit (REP 18.10, page 8-197).
2. Remove the HVPS (1st/2nd/DTS) (REP 6.4, page 8-65).
3. Remove the Conductor Housing Assembly (REP 6.3, page 8-64).
4. Disconnect the wiring harness connector connecting to the Toner Dispense
Motor (C/M/Y/K).

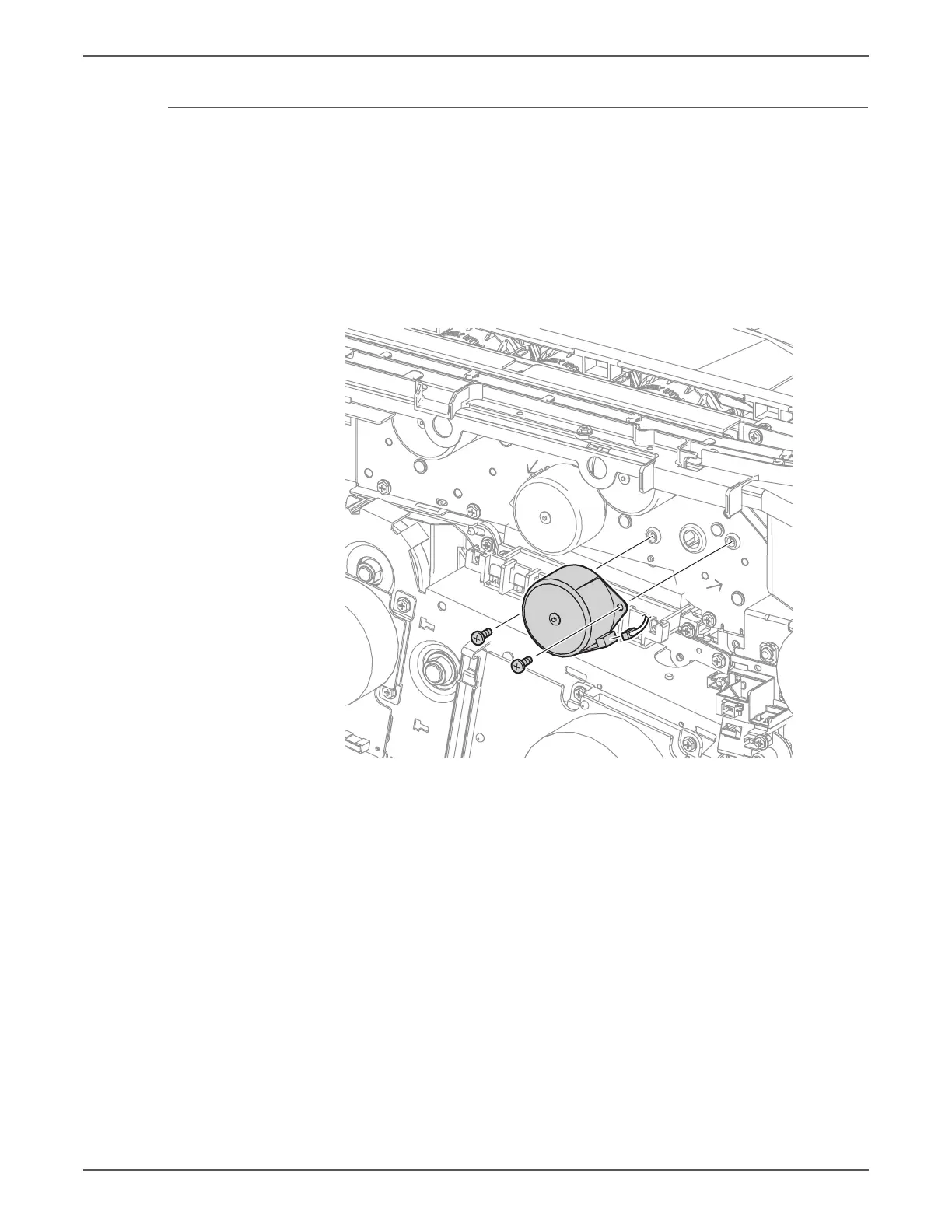

5. Remove 2 screws (silver, 6mm) that secure the Toner Dispense Motor (C/M/Y/
K) and remove the Toner Dispense Motor (C/M/Y/K).
