Xerox PHASER 7500 Service Manual

8-68 Phaser 7500 Printer Service Manual
Service Parts Disassembly
Xerographic
REP 8.1 Erase Lamp Unit (K)
PL8.1.5
1. Remove the Drum/ Deve Drive Assembly (REP 3.8, page 8-33).
2. Remove the IBT Belt Unit (REP 6.2, page 8-62).
3. Remove the Deve Plate Assembly (REP 5.4, page 8-49).
4. Remove the MOB ADC Assembly (REP 18.3, page 8-189).

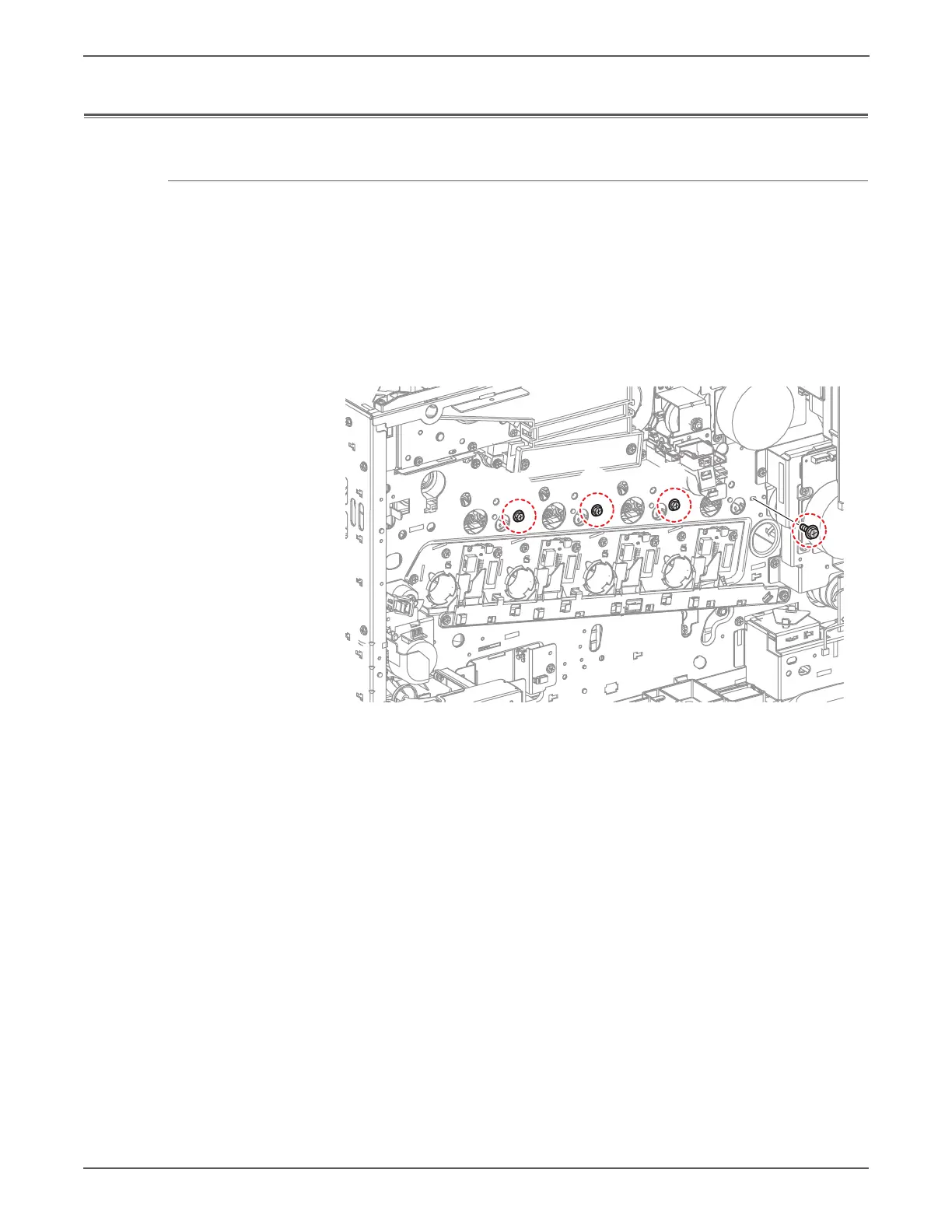

5. From the rear of the printer, remove 1 screw (silver, 8mm) that secures the
Erase Lamp Unit (K).
s7500-120
Y
M
C
K
