Phaser 7500 Printer Service Manual 8-141
Service Parts Disassembly
REP 13.11 Extension Tray (L1)/ Extension Tray (L2)
PL13.5.11/ PL13.5.12
1. Open the Tray 1 Assembly.
2. Pull out the Extension Tray (L1) until it can go no further, remove the Rail at
one side followed by the Rail at the other side, and remove the Extension Tray
(L1).
3. Bend the center section of the Extension Tray (L2), remove the Rail at the rear
followed by the Rail at the other side, and remove the Extension Tray (L2).

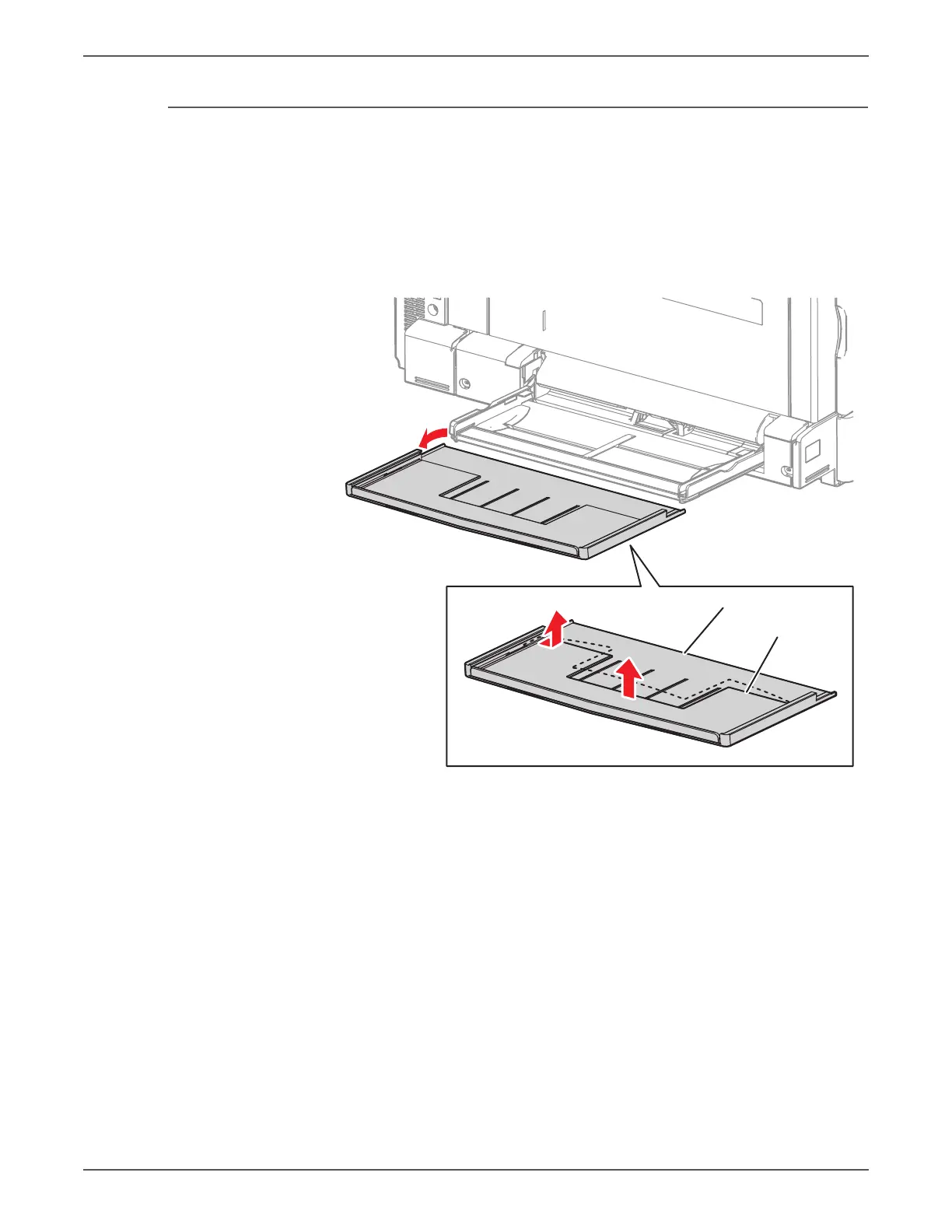

s7500-201
Extension Tray L1
Extension Tray L2
To Next Page
