Phaser 7500 Menu Map

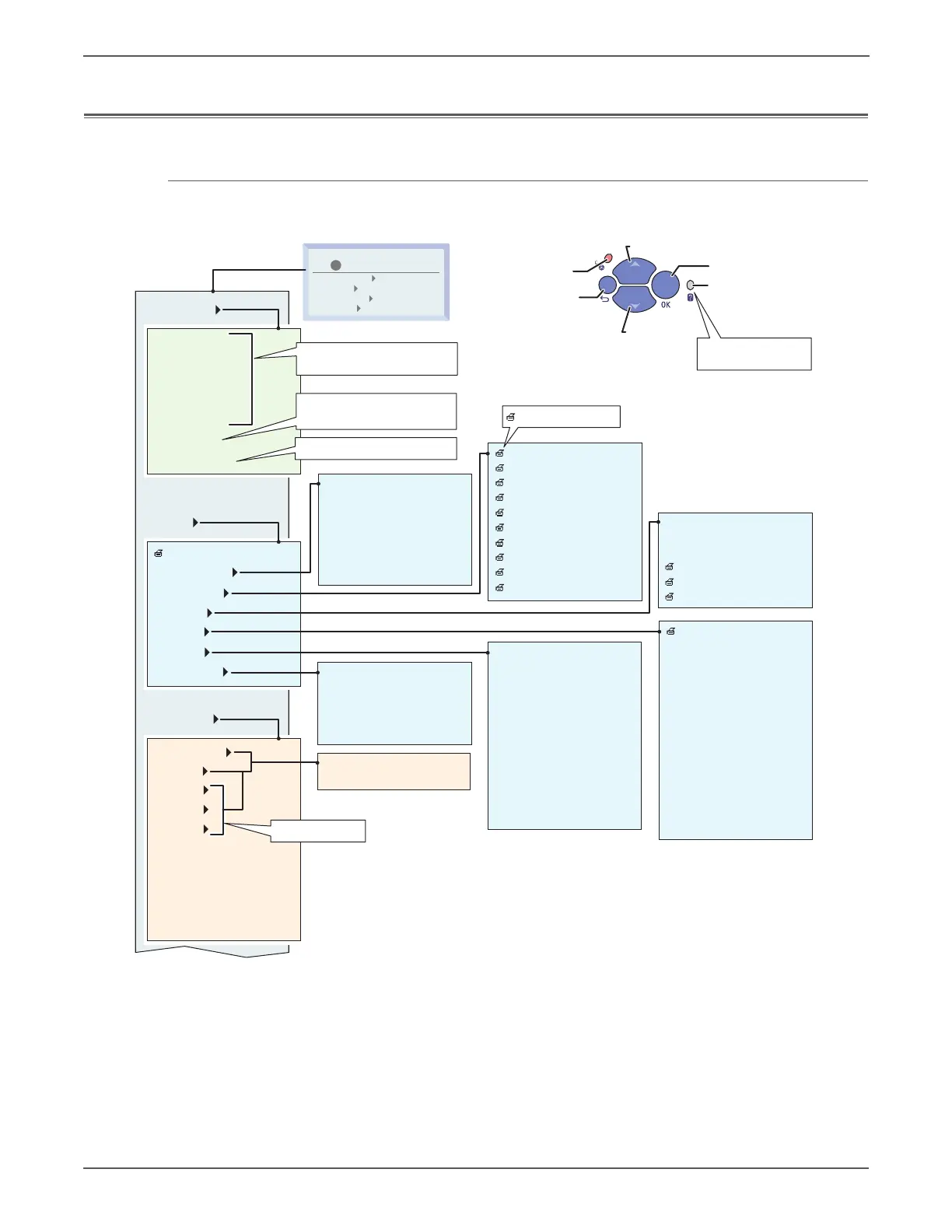

Menu Map (page 1)
Control Panel Buttons:
Main Menu:
Up Arrow
OK
Help
Back
Cancel
Down Arrow
Walk-Up Features
Information
Paper Tray Setup
Printer Setup
Walk-Up Features
Information
Paper Tray Setup
Printer Setup
Ready To Print
Press ? for help
Ready To Print
Press ? for help
Walk-Up Features
Information
Personal Print Jobs
Personal Saved Print Jobs
Secure Print Jobs
Proof Print Jobs
Saved Print Jobs
Walk-Up Printing†
Select for Installation†
Menu Map
Printer Identification
Information Pages
Sample Pages
Supplies Info
Billing Meters
Firmware Versions
Paper Tray Setup
Tray 1 (MPT) Paper
Tray 2 Paper
Tray 3 Paper
Tray 4 Paper
Tray 5 Paper
Tray 1 (MPT) Mode
Tray 1 (MPT) Prompt
Tray 2-N Mode
Tray 2-N Prompt
Reset Paper Tray Setup
Duplex Unit
Hard Drive
IPV4
IPv6
*
**
†
‡
Requires:
Graphics Demonstration
Office Demonstration
2-Sided Demonstration*
CMYK Sampler Pages
RGB Sampler Pages
PANTONE® Color Sampler Pages
Model
Printer Name
DNS Name†‡
TCP/IPv4 Address†
TCP/IPv6 Addresses‡
Serial #
Activation Date
Supplies Usage Page
Cyan Toner Life
Magenta Toner Life
Yellow Toner Life
Black Toner Life
Imaging Unit 1 Life
Imaging Unit 2 Life
Imaging Unit 3 Life
Imaging Unit 4 Life
Fuser Life
Waste Cartridge Life
Transfer Roller Life
Reset Transfer Roller Life
Total Print Count
Serial #
Total Impressions
Color Impressions
Black Impressions
Large Impressions
Color Large Impressions
Black Large Impressions
Maintenance Impressions
Color Maintenance Impressions
Black Maintenance Impressions
Sheets
2 Sided Sheets*
System x.xx
OS x.xx
PS x.xx
Eng x.xx
Net xx.xx.mm.dd.yyyy
Configuration Page
Paper Tips Page
Supplies Usage Page
Connection Setup Page
Moving Guide
Startup Page
Usage Profile
PostScript Font List
PCL Font List
Disk Directory
Use current setup
Change setup
= prints an information page.
Optional lower trays.
Use when installing a Windows printer driver.
Access to print jobs using the Walk-Up
printer driver.
Displays when print jobs are stored on the
hard drive.**
Displays information about the
message or menu.
s7500-511
