Suzuki GSF1250 Service Manual

Engine General Information and Diagnosis: 1A-60
DTC “C21” (P0110-H/L): IAT Sensor Circuit Malfunction
B718H11104015
Detected Condition and Possible Cause

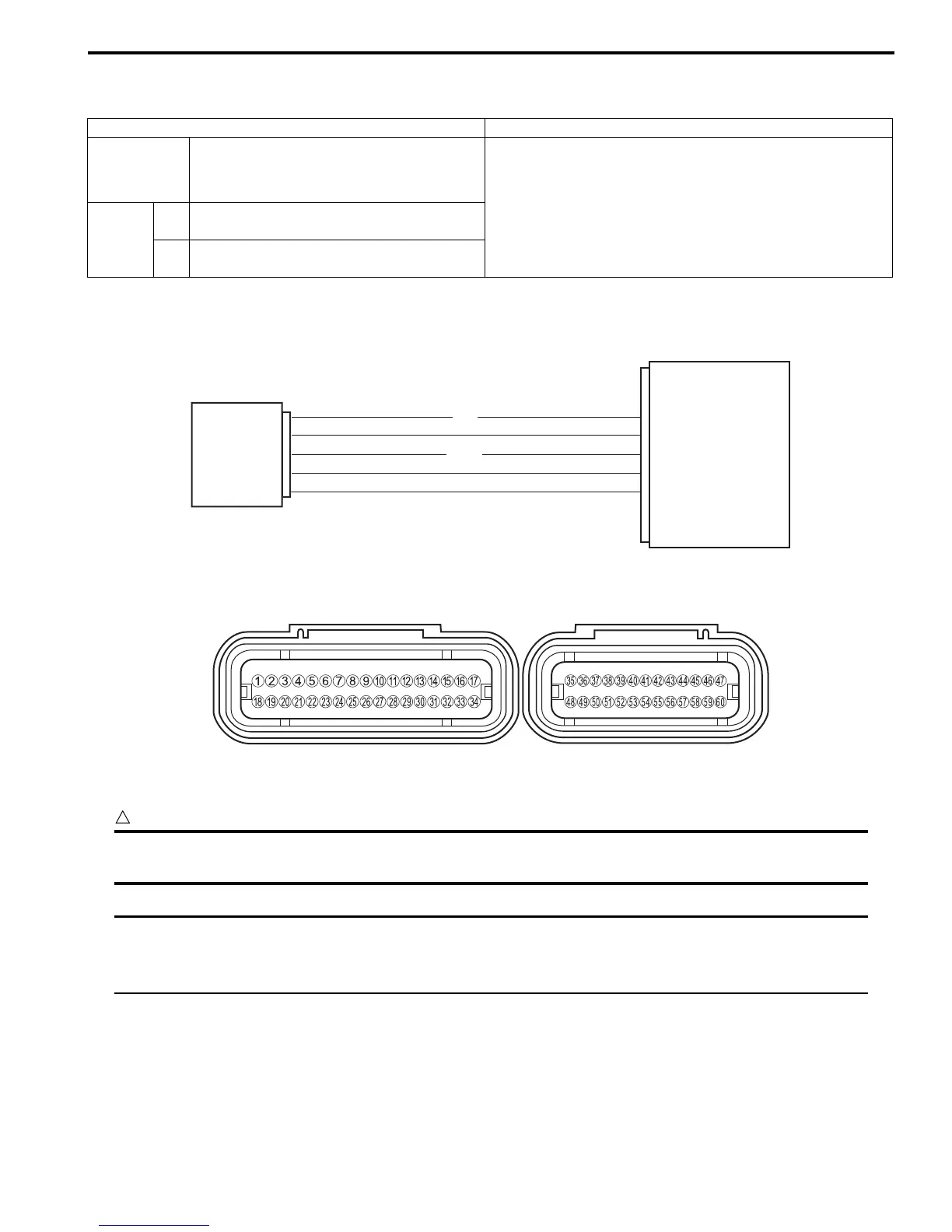

Wiring Diagram
ECM coupler (Harness side)
Troubleshooting
CAUTION
!
When using the multi-circuit tester, do not strongly touch the terminal of the ECM coupler with a
needle pointed tester probe to prevent the terminal damage or terminal bend.
NOTE
• After repairing the trouble, clear the DTC using SDS tool. Refer to “Use of SDS Diagnosis Reset
Procedures (Page 1A-13)”.
• IAT sensor is incorporated in the IAP sensor/TP sensor.
Detected Condition Possible Cause
C21
Output voltage is not with in the following
range.
0.15 V ≤ Sensor voltage < 4.85 V
• IAT sensor circuit open or short.
• IAT sensor malfunction.
• ECM malfunction.
P0110
H
Sensor voltage is higher than specified
value.
• IAT sensor circuit open or ground circuit open.
L
Sensor voltage is lower than specified
value.
• IAT sensor circuit shorted to the ground.
B/Br
Dg
ECM
IAT sensor
IAT
27
E2
29
I718H1110056-04
I718H1110240-01

Suzuki GSF1250 Specifications

General

Displacement	1255 cc
Bore x Stroke	79.0 mm x 64.0 mm
Compression Ratio	10.5:1
Fuel System	Fuel injection
Transmission	6-speed, constant mesh
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Dual hydraulic disc
Rear Brakes	Single hydraulic disc
Front Tire	120/70ZR17M/C (58W), tubeless
Rear Tire	180/55ZR17M/C (73W), tubeless
Overall Length	2130 mm
Overall Width	790 mm
Seat Height	805 mm
Wheelbase	1485 mm
Fuel Tank Capacity	19.0 L
Starter	Electric
Final Drive	Chain
Ignition	Electronic ignition (transistorized)
Engine Type	4-stroke, liquid-cooled, DOHC
Ground Clearance	135 mm
