Suzuki GSF1250 Service Manual

5C-13 Clutch:

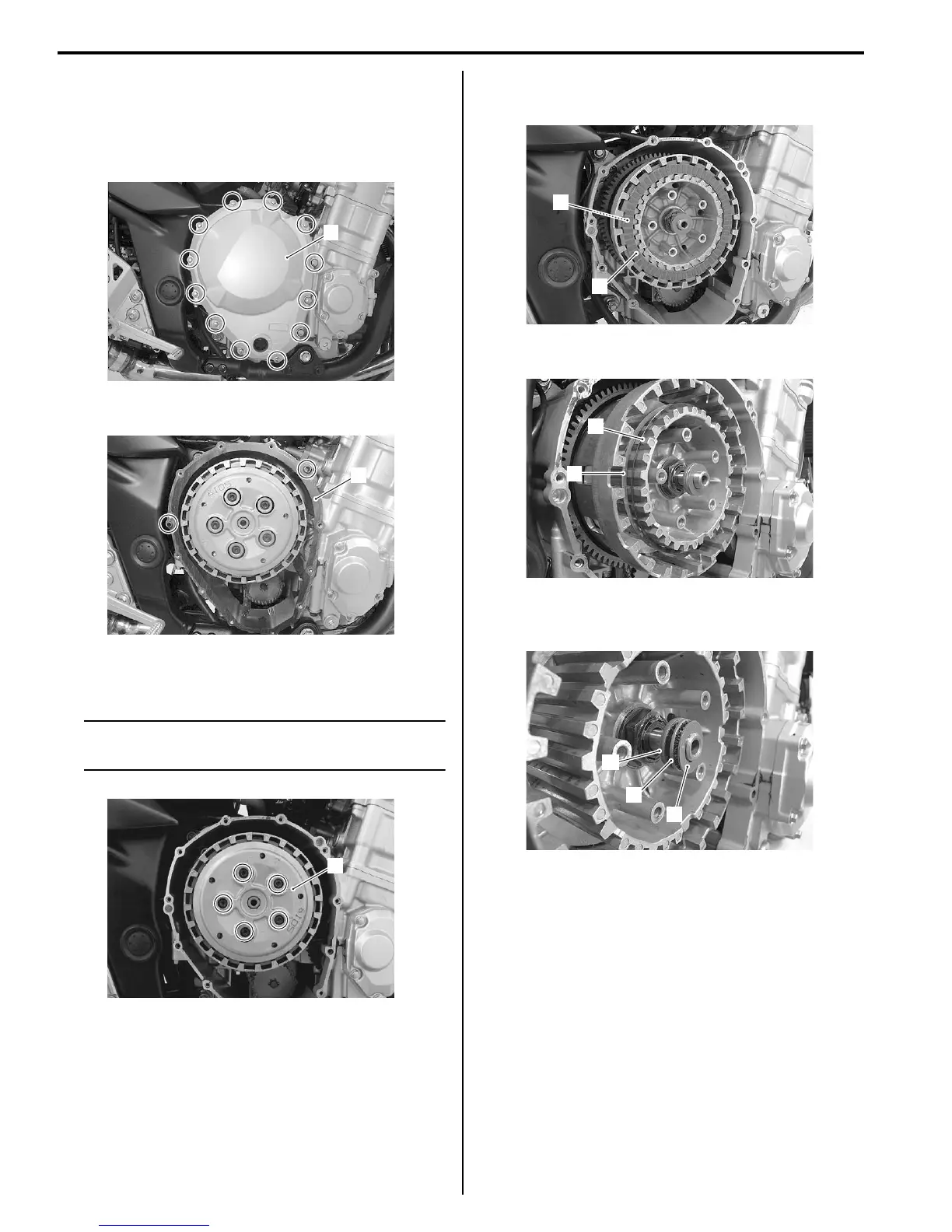

Clutch Removal
B718H15306016
1) Drain engine oil. Refer to “Engine Oil and Filter
Replacement in Section 0B (Page 0B-10)”.
2) Remove the clutch cover (1).
3) Remove the gasket (2) and dowel pins.
4) Remove the clutch spring set bolts, clutch springs
and pressure plate (3).
NOTE
Loosen the clutch spring set bolts little by
little and diagonally.
5) Remove the clutch drive plates (4) and driven plates
(5).
6) Remove the spring washer (6) and its seat (7).
7) Remove the thrust washer (8), bearing (9) and clutch
push piece (10).
1
I718H1530029-01
2
I718H1530030-01
3
I718H1530071-01
4
5
I718H1530033-01
6
7
I718H1530034-02
10
9
8
I718H1530035-02

Suzuki GSF1250 Specifications

General

Displacement	1255 cc
Bore x Stroke	79.0 mm x 64.0 mm
Compression Ratio	10.5:1
Fuel System	Fuel injection
Transmission	6-speed, constant mesh
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Dual hydraulic disc
Rear Brakes	Single hydraulic disc
Front Tire	120/70ZR17M/C (58W), tubeless
Rear Tire	180/55ZR17M/C (73W), tubeless
Overall Length	2130 mm
Overall Width	790 mm
Seat Height	805 mm
Wheelbase	1485 mm
Fuel Tank Capacity	19.0 L
Starter	Electric
Final Drive	Chain
Ignition	Electronic ignition (transistorized)
Engine Type	4-stroke, liquid-cooled, DOHC
Ground Clearance	135 mm
