Suzuki GSF1250 Service Manual

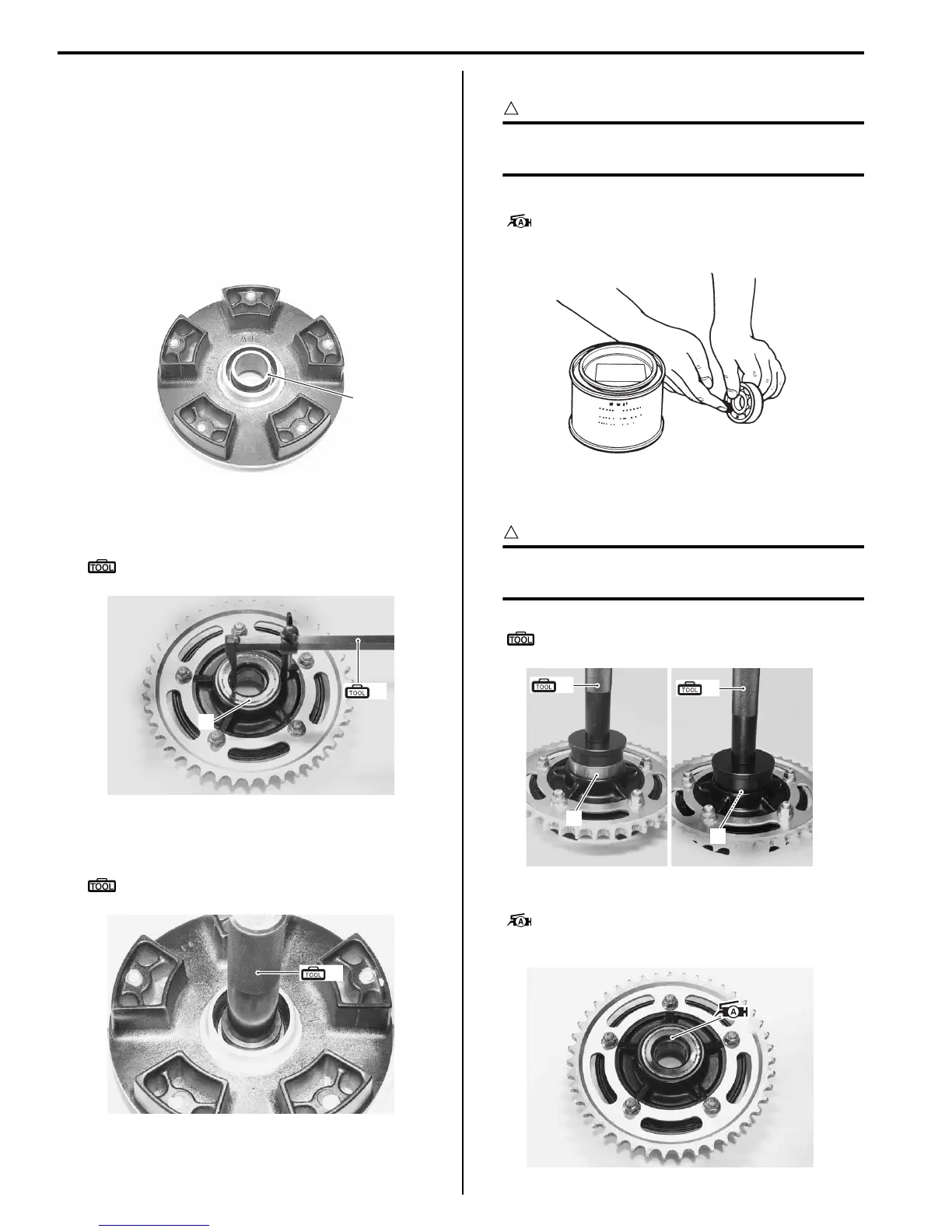

3A-6 Drive Chain / Drive Train / Drive Shaft:
Sprocket Mounting Drum Dust Seal / Bearing
Removal and Installation
B718H13106005
Removal
1) Remove the rear sprocket mounting drum assembly
from the rear wheel hub. Refer to “Rear Sprocket /
Rear Sprocket Mounting Drum Removal and
Installation (Page 3A-4)”.
2) Remove the retainer (1).
3) Remove the sprocket mounting drum dust seal (2)
using the special tool.
Special tool
(A): 09913–50121 (Oil seal remover)
4) Remove the sprocket mounting drum bearing using
the special tool.
Special tool
(B): 09913–70210 (Bearing installer set)
Installation
CAUTION
!
The removed dust seal and bearing must be
replaced with new ones.
1) Apply grease to the bearing before installing.
: Grease 99000–25010 (SUZUKI SUPER
GREASE A or equivalent)
2) Install the bearing (1) and dust seal (2) to the
sprocket mounting drum using the special tool.
CAUTION
!
The sealed cover of the bearing must face
outside.
Special tool
(A): 09913–70210 (Bearing installer set)
3) Apply grease to the dust seal lip.
: Grease 99000–25010 (SUZUKI SUPER
GREASE A or equivalent)
1
I718H1310029-01
(A)
2
I718H1310020-02
(B)
I718H1310025-01
I649G1310020-02
(A)
(A)
1
2
I718H1310021-03
I718H1310022-02

Suzuki GSF1250 Specifications

General

Displacement	1255 cc
Bore x Stroke	79.0 mm x 64.0 mm
Compression Ratio	10.5:1
Fuel System	Fuel injection
Transmission	6-speed, constant mesh
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Dual hydraulic disc
Rear Brakes	Single hydraulic disc
Front Tire	120/70ZR17M/C (58W), tubeless
Rear Tire	180/55ZR17M/C (73W), tubeless
Overall Length	2130 mm
Overall Width	790 mm
Seat Height	805 mm
Wheelbase	1485 mm
Fuel Tank Capacity	19.0 L
Starter	Electric
Final Drive	Chain
Ignition	Electronic ignition (transistorized)
Engine Type	4-stroke, liquid-cooled, DOHC
Ground Clearance	135 mm
