Suzuki GSF1250 Service Manual

4E-35 ABS:
CAUTION
!
When disconnecting couplers and turning the ignition switch ON, disconnect the ABS control unit
coupler in order to prevent a DTC from being stored. Each time a resistance is measured, the ignition
switch should be set to OFF.

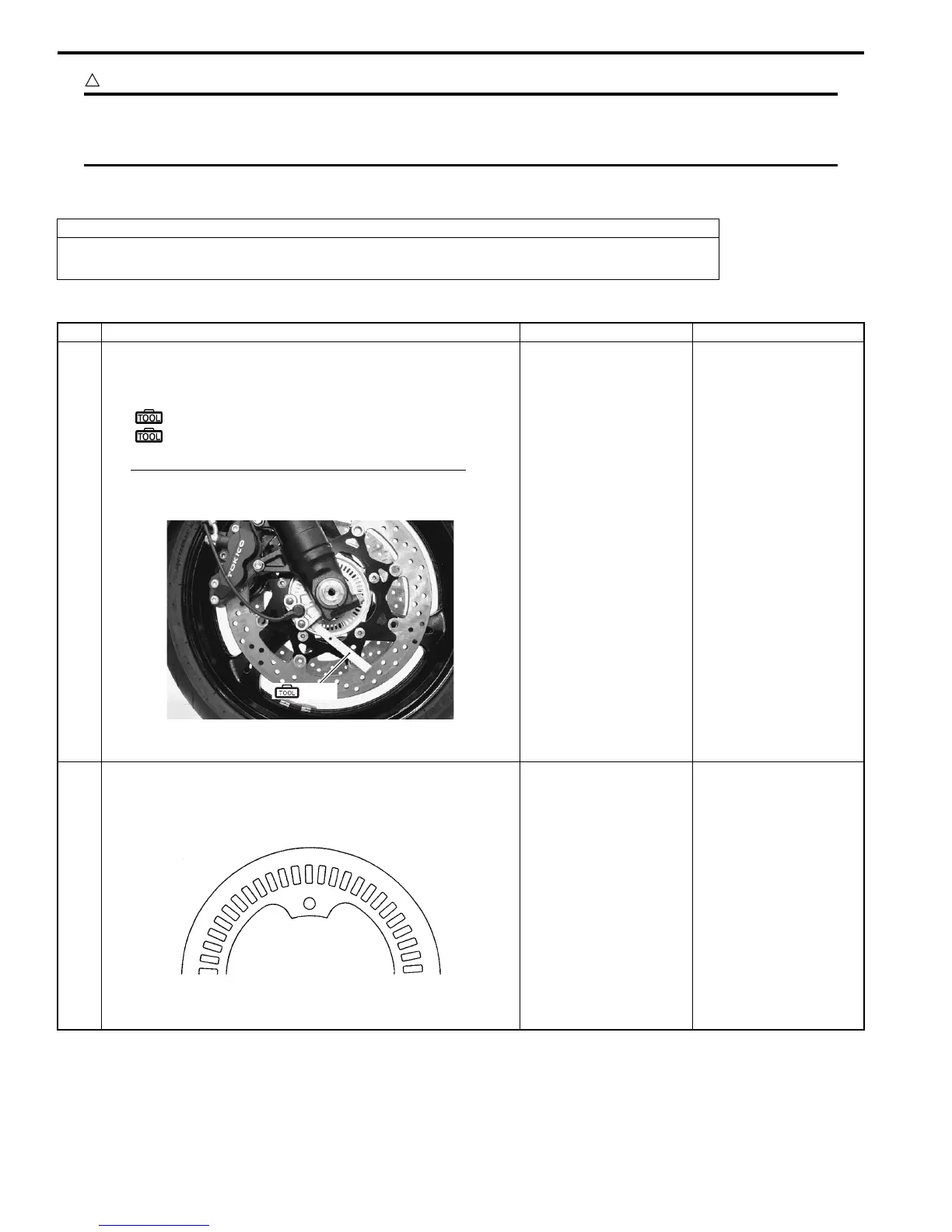

DTC “13” (C1613): Wheel Speed Sensor Rotor Malfunction (F)
B718H14504003
Troubleshooting
Possible Cause
• Front wheel speed sensor rotor distortion
• Faulty front wheel speed sensor or wiring discontinuity, etc.
Step Action Yes No
1 1) Inspect the clearance between the front wheel speed
sensor and sensor rotor using the thickness gauge.
Special tool
(A): 09900–20803 (Thickness gauge)
(B): 09900–20806 (Thickness gauge)
Wheel speed sensor – sensor rotor clearance
0.3 – 1.5 mm (0.012 – 0.059 in)
Is the clearance OK?
Go to Step 2. Adjust the clearance.
2 1) Inspect the front wheel speed sensor rotor for damage
and check that no foreign objects are caught in the rotor
openings.
Is the sensor rotor OK?
Go to Step 3. Clean or replace the
sensor rotor.
(A), (B)
I718H1450063-01
I718H1450064-01

Suzuki GSF1250 Specifications

General

Displacement	1255 cc
Bore x Stroke	79.0 mm x 64.0 mm
Compression Ratio	10.5:1
Fuel System	Fuel injection
Transmission	6-speed, constant mesh
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Dual hydraulic disc
Rear Brakes	Single hydraulic disc
Front Tire	120/70ZR17M/C (58W), tubeless
Rear Tire	180/55ZR17M/C (73W), tubeless
Overall Length	2130 mm
Overall Width	790 mm
Seat Height	805 mm
Wheelbase	1485 mm
Fuel Tank Capacity	19.0 L
Starter	Electric
Final Drive	Chain
Ignition	Electronic ignition (transistorized)
Engine Type	4-stroke, liquid-cooled, DOHC
Ground Clearance	135 mm
