Suzuki GSF1250 Service Manual

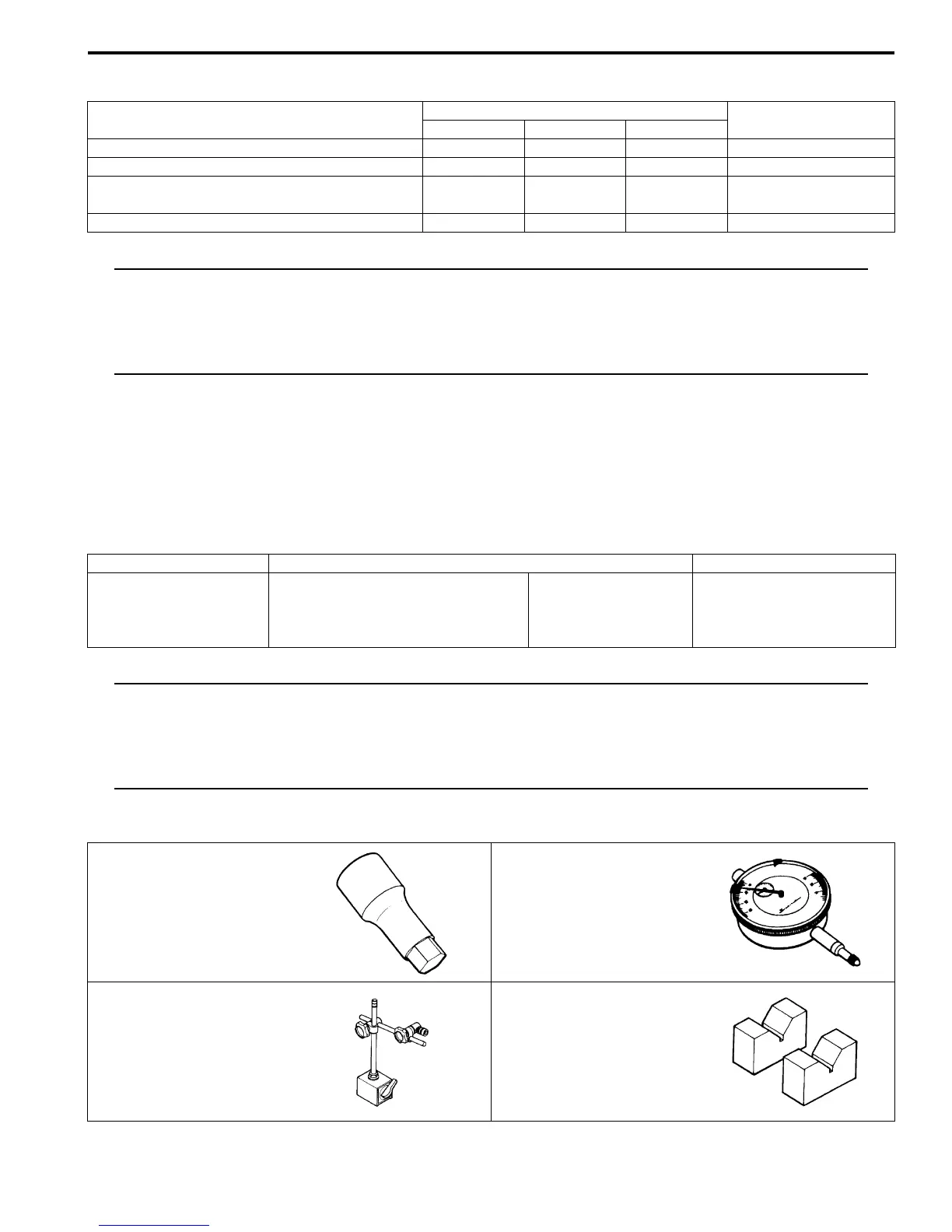

Wheels and Tires: 2D-24
Tightening Torque Specifications
B718H12407002
NOTE
The specified tightening torque is also described in the following.
“Front Wheel Components (Page 2D-2)”
“Front Wheel Assembly Construction (Page 2D-4)”
“Rear Wheel Components (Page 2D-12)”
“Rear Wheel Assembly Construction (Page 2D-14)”
Reference:
For the tightening torque of fastener not specified in this section, refer to “Tightening Torque Specifications in Section
0C (Page 0C-7)”.
Special Tools and Equipment
Recommended Service Material
B718H12408001
NOTE
Required service material is also described in the following.
“Front Wheel Components (Page 2D-2)”
“Front Wheel Assembly Construction (Page 2D-4)”
“Rear Wheel Components (Page 2D-12)”
“Rear Wheel Assembly Construction (Page 2D-14)”
Special Tool
B718H12408002
Fastening part
Tightening torque
Note
N⋅mkgf-mlb-ft
Front brake caliper mounting bolt 26 2.6 19.0 )(Page 2D-7)
Front axle bolt 100 10.0 72.5 )(Page 2D-7)
Front axle pinch bolt
23 2.3 16.5
)(Page 2D-8) /
)(Page 2D-8)
Rear axle nut 100 10.0 72.5 )(Page 2D-16)
Material SUZUKI recommended product or Specification Note
Grease SUZUKI SUPER GREASE A or
equivalent
P/No.: 99000–25010 )(Page 2D-10) /
)(Page 2D-11) /
)(Page 2D-18) /
)(Page 2D-19)
09900–18740 09900–20607
Hexagon socket (24 mm) Dial gauge (1/100 mm, 10
mm)
)(Page 2D-7) )(Page 2D-8) / )(Page 2D-
17)
09900–20701 09900–21304
Magnetic stand V-block (100 mm)
)(Page 2D-8) / )(Page 2D-
17)
)(Page 2D-8) / )(Page 2D-
17)
